P-TOP & MODIFIED P-TOP WORKSURFACE

INSTALL SUPPORTS

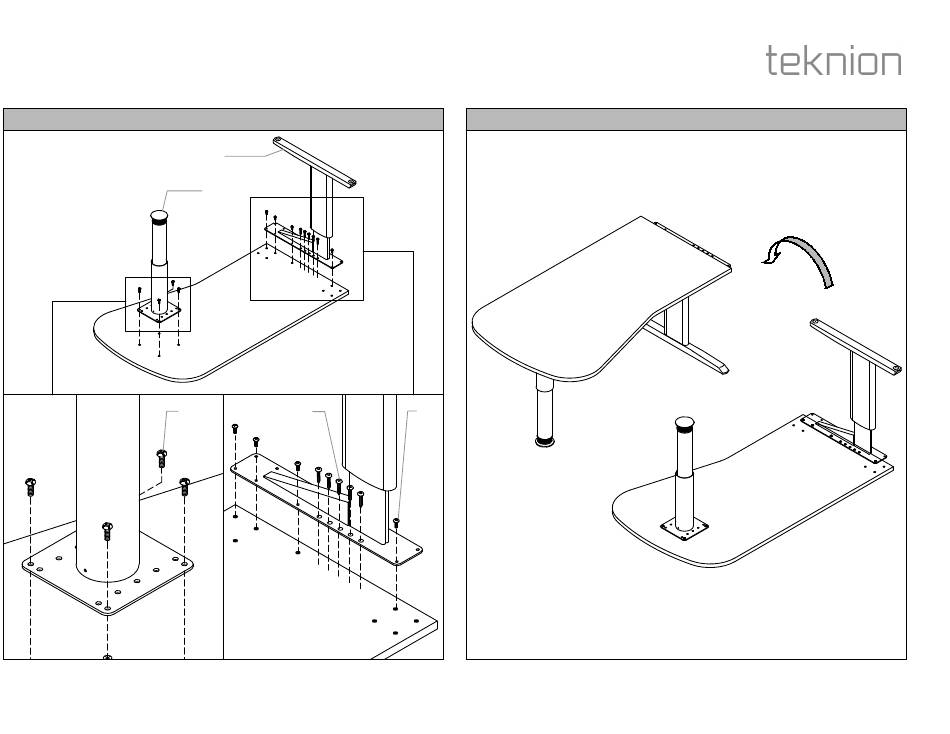

STEP 1: Lay the Worksurface upside down onto a clean surface. Align the holes on the Support
TLCL and TLSM with the holes on the Worksurface. Secure the support with the screws
provided.
NOTE: Refer to Installation Guide TST_260 for installtion of Semi-Suspended Monoleg
(TLSM) and refer to Installation Guide TST_261 for installation of C-Leg (TLCL).
B
C
D
E
FLIP ASSEMBLED WORKSURFACE
D
STEP 2: Flip the assembled Worksurface and Supports back into the original orientation.
Date:
May 2018
Page No:
2 of 4
TST_204
