Tyco Electronics PRO-CRIMPER III Instruction Sheet

PROPER USE GUIDELINES
Cumulative Trauma Disorders can result from the prolonged use of manually powered hand tools. Hand tools are intended for occasional use and low volume
applications. A wide selection of powered application equipment for extended-use, production operations may be available.
Stationary Jaw
Die Assembly
58573-1
1. INTRODUCTION
This instruction sheet covers the use of
PRO–CRIMPER III Hand Tool 58573–1 with Crimping
Die Assembly 58573–2, which is used to apply the
standard and moisture resistant spare wire caps listed
in Figure 2. The die assembly is designed to be used
in PRO–CRIMPER III Hand Tool Frame 354940–1
(shown in Figure 1). For instructions concerning the
operation of the hand tool, refer to Instruction Sheet
408–9930, which is supplied with the tool.
Measurements are in millimeters [followed by
NOTE
inch equivalents in brackets].
Reasons for reissue of this document are provided in
Section 8, REVISION SUMMARY.
2. DESCRIPTION (Figure 1)
Each die assembly consists of an indenter die and an
anvil die. When closed, the dies form four crimping
chambers, which coincide with the four sizes of spare
wire caps. Die retaining screws are used to secure
the dies in the tool frame.
E
2005 Tyco Electronics Corporation, Harrisburg, PA
All International Rights Reserved
AMP and Tyco are trademarks. *Trademark
Other products, logos, and company names used are the property of their respective owners.

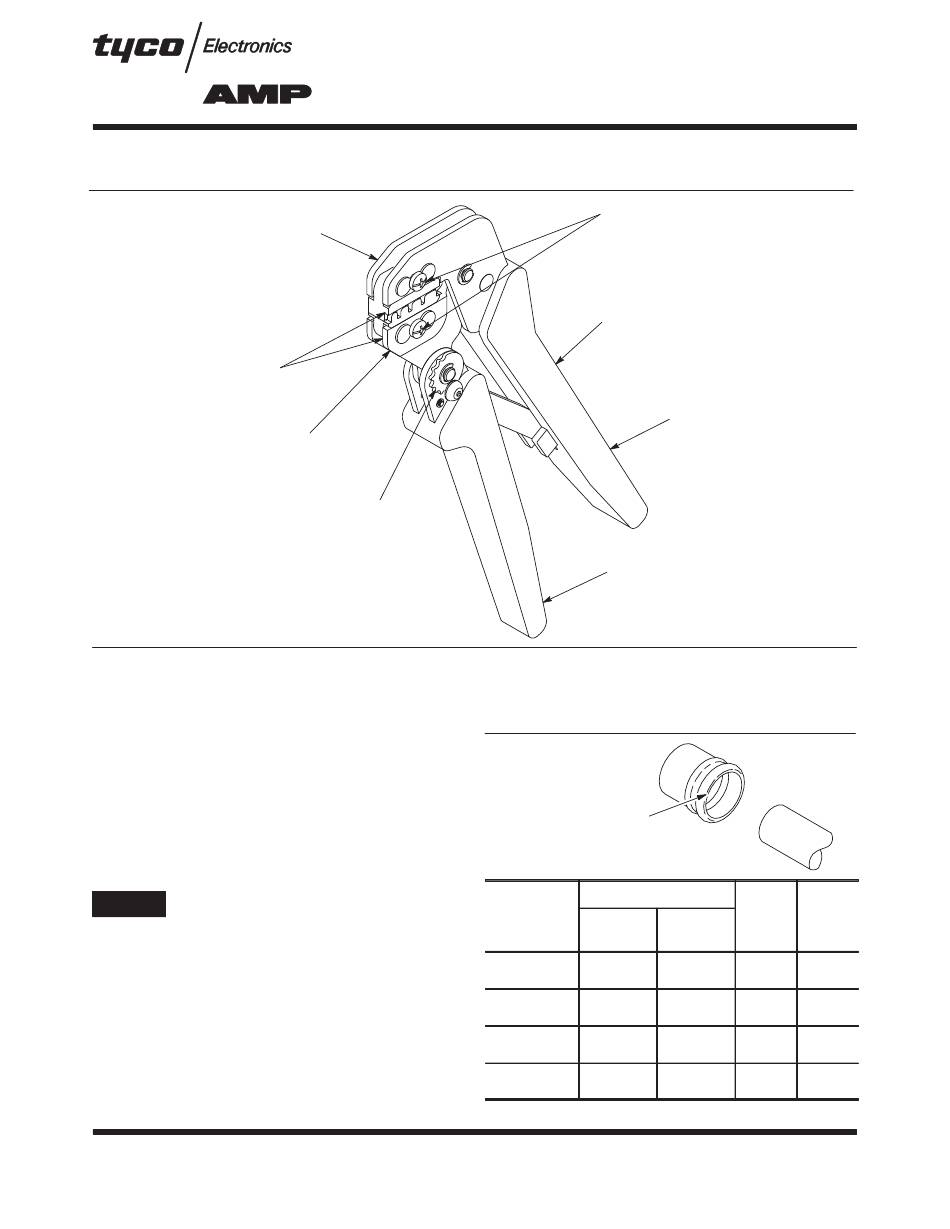

PRO-CRIMPER* III Hand Tool Assembly
58573-1 with Crimping Die Assembly
58573-2 for Spare Wire Caps
Moving Jaw
Ratchet
Adjustment
Wheel
Figure 1
TOOLING ASSISTANCE CENTER 1-800-722-1111
PRODUCT INFO 1-800-522-6752
Die Retaining
Screws

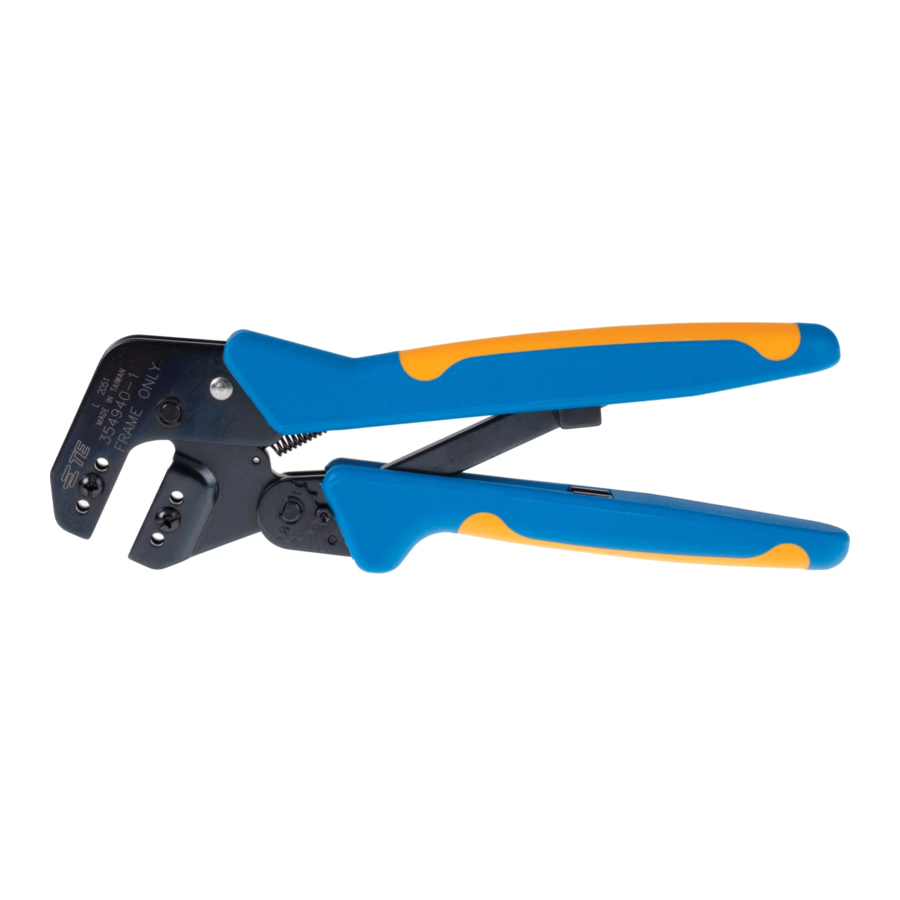

PRO-CRIMPER* III
Hand Tool Frame
354940-1
Moving
Handle
The tool features a tool frame with a stationary jaw
and handle, a moving jaw, a moving handle, and an
adjustable ratchet that ensures full contact crimping.
For Single Unstripped
Wire (Thin Copper Insert)
With or Without Moisture-
Resistant Inhibitor
WIRE
SPARE WIRE CAP No's
INSUL. INSUL
DIA. MOISTURE
STANDARD
RESISTANT
RANGE
1.22 - 1.91
324484
[.048 - .075]
2.03 - 2.92
324485
[.080 - .115]
3.05 - 3.68
324486
[.120 - .145]
3.81 - 5.33
324487
[.150 - .210]
Figure 2
This controlled document is subject to change.
For latest revision and Regional Customer Service,
visit our website at
Instruction Sheet
408-4251
07 APR 05 Rev C
Stationary
Handle
TOOL
CAP
COLOR COLOR
COLOR
CODE
CODE
DOT
324693 WHITE WHITE
324694 RED RED
324695 BLUE BLUE
324696 YELLOW YELLOW
of 4
1
www.tycoelectronics.com
LOC B
