PROPER USE GUIDELINES
Cumulative Trauma Disorders can result from the prolonged use of manually powered hand tools. Hand tools are intended for occasional use and low volume
applications. A wide selection of powered application equipment for extended-use, production operations is available.
Stationary Jaw
Moveable Jaw
Emergency
Ratchet
Release
1. INTRODUCTION
This instruction sheet provides application and
maintenance procedures for the PRO–CRIMPER III
Hand Crimping Tool Frame Assembly 354940–1. See
Figure 1. The tool is designed to accept
interchangeable crimping die assemblies for crimping
various types of Tyco Electronics Connectors.
In most cases, the PRO–CRIMPER III tool frame
assembly is provided with a specific set of dies and is
considered a component part of a crimping assembly.
Refer to the appropriate instruction sheet packaged
with the hand tool/crimping die assembly, or with the
separate die assembly, for information regarding
crimping procedures, crimp height inspection, and
crimping die gaging.
Read these instructions thoroughly before installing
dies and using the tool.
E
2007 Tyco Electronics Corporation, Harrisburg, PA
All International Rights Reserved
TE logo and Tyco Electronics are trademarks.
*Trademark. Other products, logos, and company names used are the property of their respective owners.
PRO-CRIMPER* III
Hand Crimping Tool
Frame Assembly 354940-1
Ratchet
Adjustment
Wheel

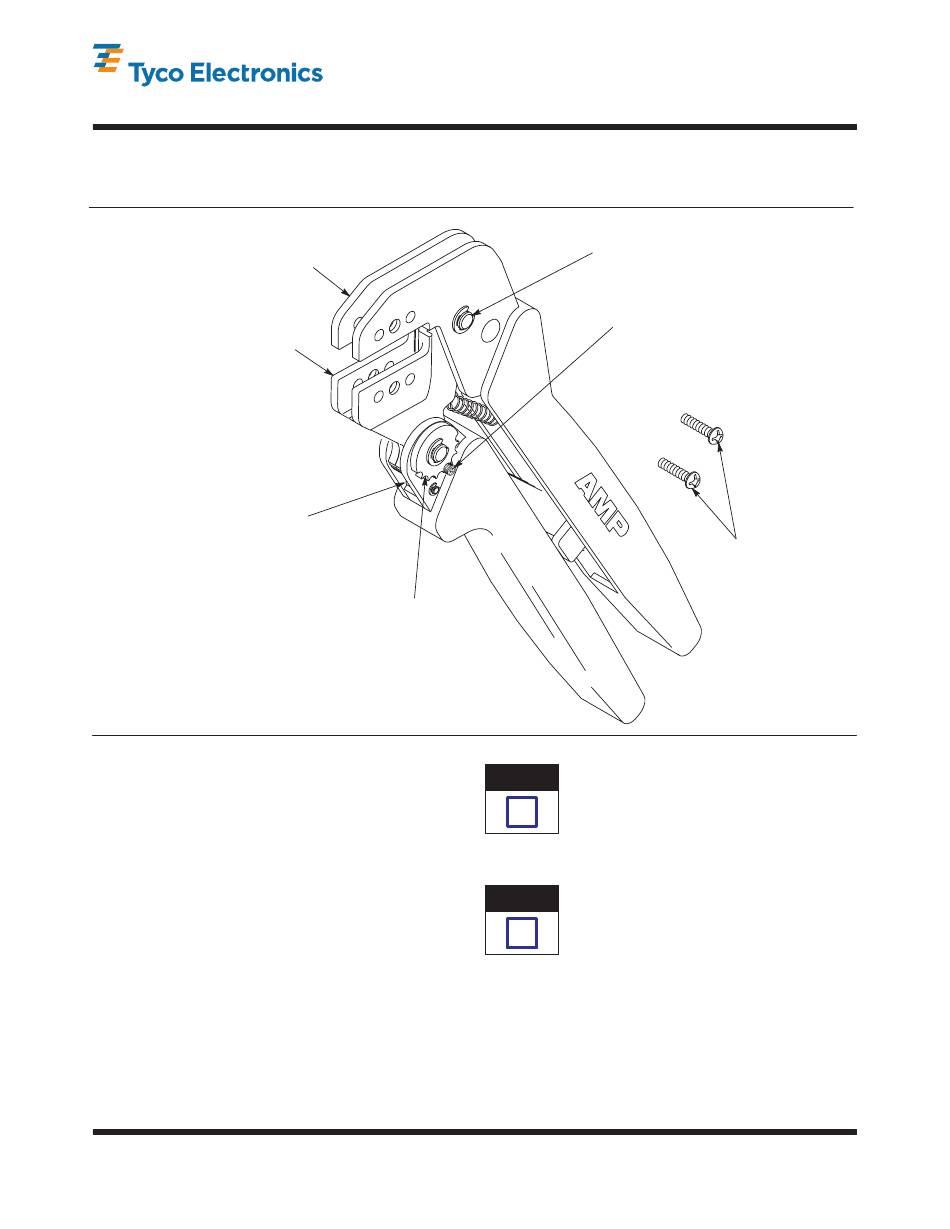

Figure 1
NOTE
i
NOTE
i
Reason for revision is given in Section 7, REVISION
SUMMARY.
2. DESCRIPTION
The PRO–CRIMPER III tool consists of two crimping
jaws, an adjustable ratchet, spring–actuated handles,
two die retaining screws, and an emergency ratchet
TOOLING ASSISTANCE CENTER 1-800-722-1111
PRODUCT INFORMATION 1-800-522-6752
Instruction Sheet
408-9930
06 AUG 07
Pivot Pin
Ratchet
Adjustment
Screw
Die Retaining
Screws
The PRO-CRIMPER III Frame Assembly is
designed to accept dies to crimp a variety of Tyco
Electronics products. Contact your local Tyco
Electronics Representative or the Tooling
Assistance Center for information regarding the
availability of dies for specific applications.
All dimensions on this document are in metric
units [with U. S. customary units in brackets].
Figures and illustrations are for reference only
and are not drawn to scale.
This controlled document is subject to change.
For latest revision and Regional Customer Service,
visit our website at www.tycoelectronics.com
Rev D
1 of 4
LOC B
