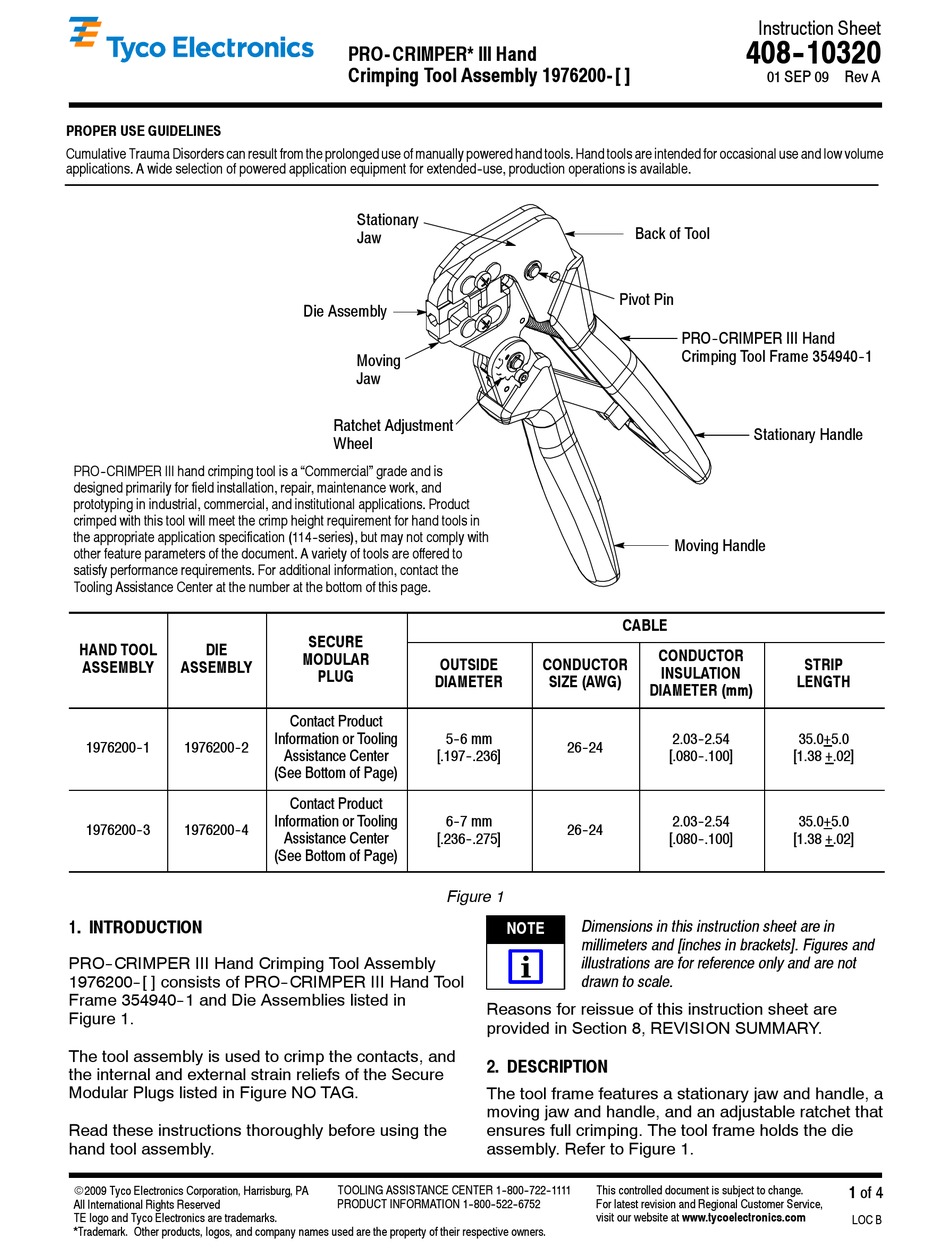

Tyco Electronics PRO-CRIMPER III Instruction Sheet

PROPER USE GUIDELINES
Cumulative Trauma Disorders can result from the prolonged use of manually powered hand tools. Hand tools are intended for occasional use and low volume
applications. A wide selection of powered application equipment for extended- - use, production operations is available.
PRO- - CRIMPER III hand crimping tool is a "Commercial" grade and is
designed primarily for field installation, repair, maintenance work, and
prototyping in industrial, commercial, and institutional applications. Product
crimped with this tool will meet the crimp height requirement for hand tools in
the appropriate application specification (114- - series), but may not comply with
other feature parameters of the document. A variety of tools are offered to
satisfy performance requirements. For additional information, contact the
Tooling Assistance Center at the number at the bottom of this page.
HAND TOOL DIE
ASSEMBLY ASSEMBLY
1976200--1 1976200--2
1976200--3 1976200--4
1. INTRODUCTION
PRO--CRIMPER III Hand Crimping Tool Assembly
1976200--[ ] consists of PRO--CRIMPER III Hand Tool
Frame 354940--1 and Die Assemblies listed in
Figure 1.
The tool assembly is used to crimp the contacts, and
the internal and external strain reliefs of the Secure
Modular Plugs listed in Figure NO TAG.
Read these instructions thoroughly before using the
hand tool assembly.
E2009 Tyco Electronics Corporation, Harrisburg, PA
All International Rights Reserved
TE logo and Tyco Electronics are trademarks.
*Trademark. Other products, logos, and company names used are the property of their respective owners.
PRO- CRIMPER* III Hand
Crimping Tool Assembly 1976200- [ ]
Stationary
Jaw
Die Assembly
Moving
Jaw
Ratchet Adjustment
Wheel
SECURE SECURE
MODULAR
OUTSIDE
PLUG
DIAMETER
Contact Product
Information or Tooling 5--6 mm
Assistance Center [.197--.236]
(See Bottom of Page)
Contact Product
Information or Tooling 6--7 mm
Assistance Center
[.236--.275]
(See Bottom of Page)
Figure 1
TOOLING ASSISTANCE CENTER 1- - 800- - 722- - 1111
PRODUCT INFORMATION 1- - 800- - 522- - 6752
Back of Tool
Pivot Pin
CABLE
CONDUCTOR
CONDUCTOR
INSULATION
SIZE (AWG)
DIAMETER (mm)
26--24
26--24
Dimensions in this instruction sheet are in
NOTE
millimeters and [inches in brackets]. Figures and
i
illustrations are for reference only and are not
drawn to scale.
Reasons for reissue of this instruction sheet are
provided in Section 8, REVISION SUMMARY.
2. DESCRIPTION
The tool frame features a stationary jaw and handle, a
moving jaw and handle, and an adjustable ratchet that
ensures full crimping. The tool frame holds the die
assembly. Refer to Figure 1.
This controlled document is subject to change.
For latest revision and Regional Customer Service,
visit our website at www.tycoelectronics.com
Instruction Sheet
408- - 10320
01 SEP 09 Rev A
PRO- - CRIMPER III Hand
Crimping Tool Frame 354940- - 1
Stationary Handle
Moving Handle
STRIP
LENGTH
2.03--2.54 35.0+5.0
[.080- - .100] [1.38 +.02]
2.03--2.54 35.0+5.0
[.080- - .100] [1.38 +.02]
1 of 4
LOC B
