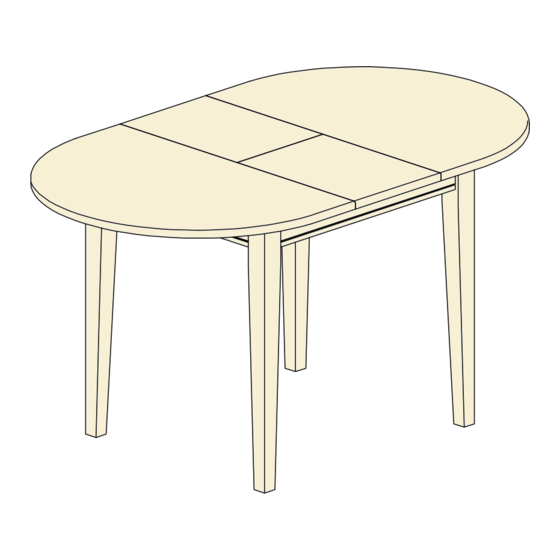

Thornbury Oval Dining Table
Assembly Instructions
Dimensions
Width - 106-135 cm
Depth - 80 cm
Height - 74 cm
Important
- Please read these instructions fully before starting assembly
If you need help or have damaged or missing parts, call the Customer Helpline:
Homebase = 0345 077 8888
- Please keep for future reference
343759
385/7188
Issue 1 - 09/04/15
Advertisement
Related Manuals for Argos Thornbury 343759
Summary of Contents for Argos Thornbury 343759
- Page 1 Thornbury Oval Dining Table Assembly Instructions 343759 - Please keep for future reference 385/7188 Dimensions Width - 106-135 cm Depth - 80 cm Height - 74 cm Important - Please read these instructions fully before starting assembly If you need help or have damaged or missing parts, call the Customer Helpline: Homebase = 0345 077 8888 Issue 1 - 09/04/15...
- Page 2 Safety and Care Advice Important - Please read these instructions fully before starting assembly • We do not • Check you have all the • During assembly do not stand components and tools listed on or put weight on the product, this recommend the the following pages.
-
Page 3: Components - Parts
Components - Parts If you have damaged or missing components, call the Customer Helpline: Homebase = 0345 077 8888 Please check you have all the parts listed below Table Top Leg x 4 (106/135 x 80 x 11 cm) (72 x 5.5 x 3.5 cm) Components - Fittings Please check you have all the fittings listed below Note: The quantities below are the correct amount to complete the assembly. - Page 4 Assembly Instructions Step 1 Attaching the legs Place the table top a flat protected surface. Position the legs the table top and insert the bolts on the legs into holes on the table top as plastic tip shown. Note: Remove plastic tip cover on bolts before assembling.
- Page 5 Operation Instructions Step 1 Extending the table Release the 2 locks under the table top. With two persons on each end of the table, unlock carefully pull out the lock table top as shown. Pull out the middle extension top as shown. Open up the middle middle extension top extension top.
- Page 6 Operation Instructions Step 2 Retracting the table Release the 4 locks under the table top. With two persons on lock each end of the table, unlock carefully pull out the table top as shown. Pull up the middle extension top as shown. middle extension top Fold down the middle extension top.
