Argos Charlie 332/7553 Assembly Instructions Manual

Bar stool

Download this manual

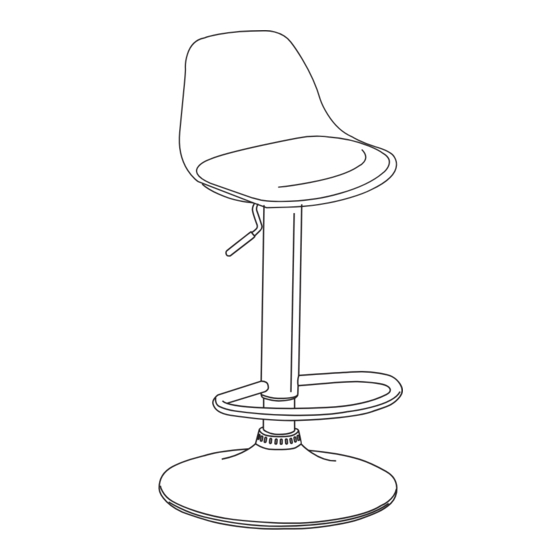

Charlie Bar Stool

Assembly Instructions -

Dimensions

Length - 41.5cm

Width - 42cm

Height - 82-104cm

Important – Please read these instructions fully before starting assembly

If you need help or have damaged or missing parts, call the Customer Helpline: 0845 640 0800

Please keep for future reference

332/7553

346/5886

Issue 1 - 12/11/2014

Need help?

Do you have a question about the Charlie 332/7553 and is the answer not in the manual?

Page 1 Charlie Bar Stool Assembly Instructions - 332/7553 Please keep for future reference 346/5886 Dimensions Length - 41.5cm Width - 42cm Height - 82-104cm Important – Please read these instructions fully before starting assembly If you need help or have damaged or missing parts, call the Customer Helpline: 0845 640 0800 Issue 1 - 12/11/2014...
Page 2: Care And Maintenance
Safety and Care Advice Important - Please read these instructions fully before starting assembly • Check you have all the • Pls do not stand or put weight • We do not on the product during assembly, components and tools listed on recommend the this could cause damage.
Page 3 Parts parts Gas lift Seat support Seat (355x410x285mm) (330x260x390mm) ）（ 50x50x500/720mm Base （４１５ｘ４１５ｘ８５ｍｍ）...
Page 4 M6x20mm boltx4 6mm Allen keyx1...
Page 5 Attaching base Remove the cap from the top of the gaslift Insert the gaslift into the base Attaching the seat Place seat on the edge of a covered table top. Place seat support the underside of seat shown. Fix seat to seat support with bolts...
Page 6 Fitting the Unit Carefully turn the seat assembly over, and place it onto the base unit Step 4 Assembly is complete. If you need help or have damaged or missing parts, call the Customer Helpline: 0845 640 0800 Argos Ltd MK9 2NW...

Charlie 346/5886
