Summary of Contents for Argos AUBREY

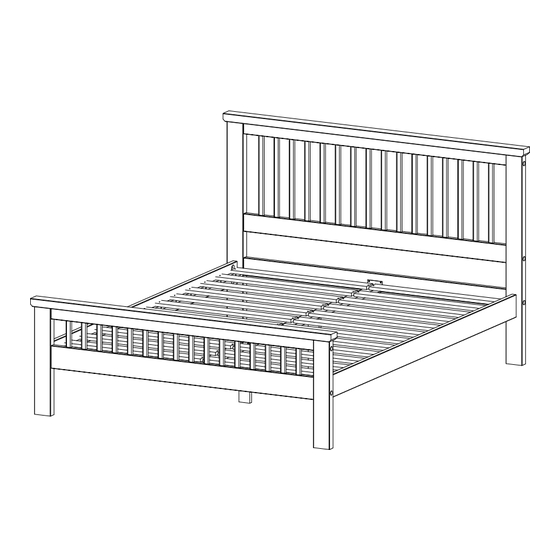

- Page 1 Aubrey Spare Parts Customer Support 0345 640 2020 www.argos-support.co.uk Help@ClickSpares.co.uk 0370 112 1928 Issue 0 -21/09/23...
- Page 2 ● Regularly check and ensure that all bolts and fittings are tightend properly. ● Maximum user weight 100kg ● This product is compliant En1725 Sainsbury's Sainsbury's Supermarkets Ltd and Argos Limited, London EC1N 2HT, UK. Sainsbury’s (NI) Ltd And Argos (N.I.) Ltd, Forestside Shopping Centre, Upper Galwally, Bt8 FX, UK.
- Page 3 Headboard Bottom Rail Headboard Grid (1458 x 90mm) (1458 x 558mm) Top Rail Footboard Grid (1668 x 65mm) (1458 x 314mm) Side Rail Headboard Right Foot (2000 x 115mm) (1060 x 90mm) Slats (755 x 68mm) Headboard Left Foot (1060 x 90mm) Footboard Right Foot Central Support (550 x 90mm)
-
Page 4: Tools Required
Fittings Half-Moon Nut 1/4 x 04 80mm Bolt x 8 Allen Key 9203F 6000 Washer 1/4 x 04 35mm Screw x 52 40mm Wooden dowel x 14 6001 9013 10004 70mm Headless Bolt x 04 Nut 1/4 x 06 Spanner x 01 9301 6100 Screw 16mm x 08... - Page 5 Fittings 80mm Bolt x 8 Half-Moon Nut 1/4 x 04 Allen Key 9203F 6000 40mm Wooden dowel x 14 35mm Screw x 52 Washer 1/4 x 04 40mm Wooden dowel x 14 9013 6001 10004 Nut 1/4 x 06 70mm Headless Bolt x 04 Spanner x 01 9301 6100...
- Page 6 Allen Key 80mm Bolt x 4 Allen Key 120mm Bolt x 4 WARNING!
- Page 7 Allen Key 80mm Bolt x 4 70mm Headless Bolt x 4 Screw 16mm x 04 80mm L Shaped Bracket x 01 WARNING!
- Page 8 Screw 16mm x 04 80mm L Shaped Bracket x 01 Allen Key 90mm Bolt 1/4 x 4 Half-Moon Nut 1/4 x 04...
- Page 9 Spanner Spanner Washer x 4 Nut 1/4 x 4 Allen Key 50mm Bolt x 04...
- Page 10 Nut 1/4 x 02 40mm Bolt 1/4 x 02 35mm Screw x 52 92mm Spacer x 2...
- Page 11 Screw Cap x 10...
