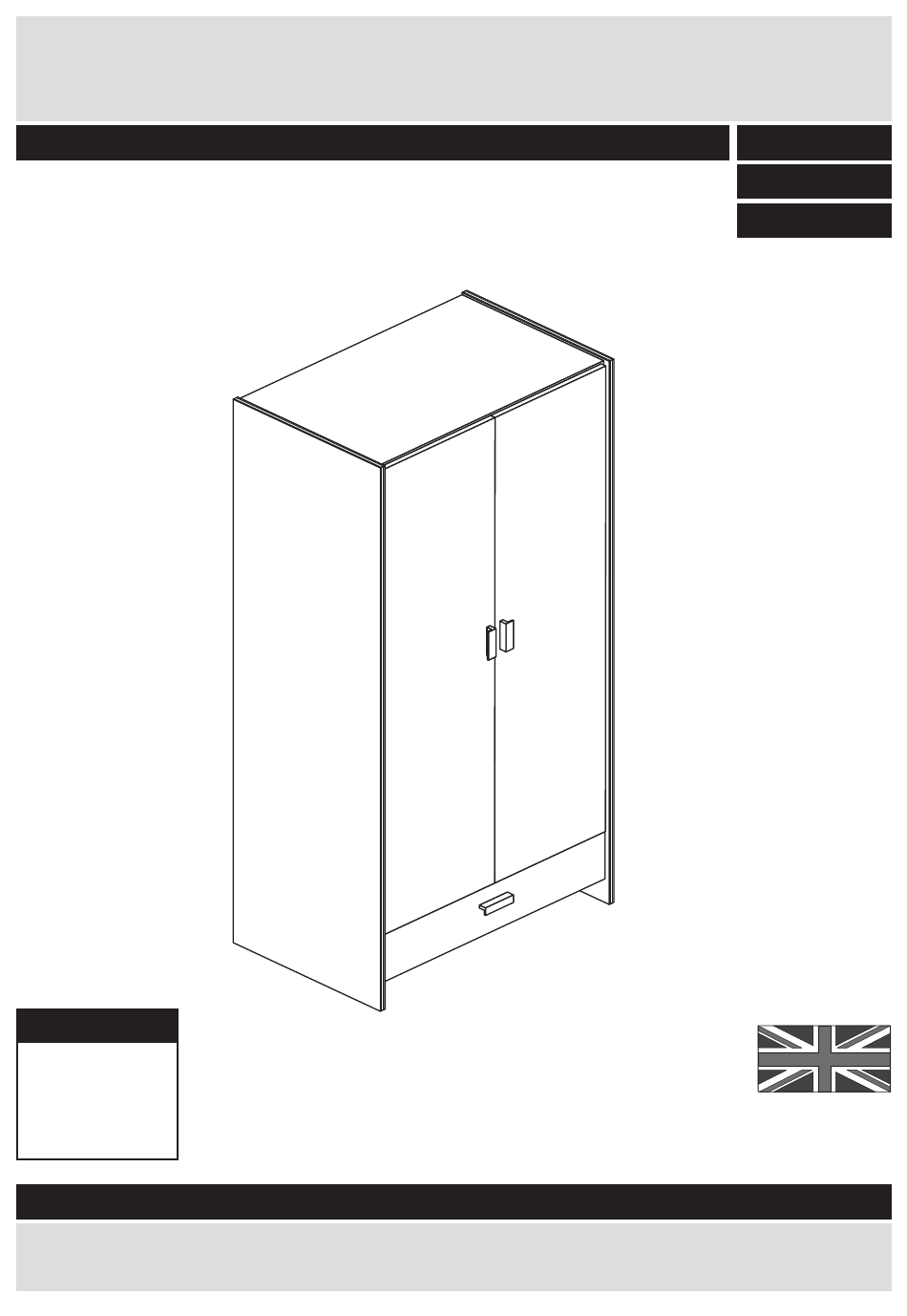

Capella - 1 Drawer 2 Door Robe
Assembly Instructions -
Dimensions
Width - 83cm
Depth - 49cm
Height - 181cm
Important -
Please read these instructions fully before starting assembly
If you need help or have damaged or missing parts, call the Customer Helpline: 08456 400800
Please keep for future reference
343/7711
339/5200
356/6589
MADE IN
BRITAIN
Issue 1 - 03/12/14
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Argos Capella
Summary of Contents for Argos Capella
- Page 1 Capella - 1 Drawer 2 Door Robe Assembly Instructions - 343/7711 Please keep for future reference 339/5200 356/6589 Dimensions Width - 83cm Depth - 49cm MADE IN Height - 181cm BRITAIN Important - Please read these instructions fully before starting assembly...
-
Page 2: Care And Maintenance
Safety and Care Advice Important - Please read these instructions fully before starting assembly • Warning: This unit weighs • Make sure you have enough • We do not approximately 50kgs. space to layout the parts before recommend the Please lift with care. starting. - Page 3 If you have damaged or missing components, call the Components - Panels Customer Helpline: 08456 400800 quoting the reference numbers below Please check you have all the panels listed below (DF1995A) (797 x 471mm) Base (DF1996A) (797 x 471mm) x 2 Plinth (DF1999A) (797 x 85mm)
- Page 4 If you have damaged or missing components, call the Components - Fittings Customer Helpline: 08456 400800 quoting the reference numbers below Please check you have all the fittings listed below Note: The quantities below are the correct amount to complete the assembly. In some cases more fittings may be supplied than are required.
- Page 5 If you have damaged or missing components, call the Assembly Instructions Customer Helpline: 08456 400800 quoting the reference numbers below Step 1 Prepare the drawer front Screw 2 metal dowels into the holes shown on the back of the drawer front Note: Tighten the metal dowels up fully against...
- Page 6 Assembly Instructions Step 4 Fit the drawer base Slide the drawer base down the grooves in the drawer sides and down into the groove in the drawer front . Step 5 Fit the drawer back Fit the drawer back . between the drawer sides Make sure that the...
- Page 7 Assembly Instructions Step 8 Prepare left side Place drawer runner Profiled on the left side . Slide front edge back top of runner and use 1st hole from the front to fit 1st screw Slide runner back the other way and fit the 2nd screw into the corre- sponding hole in the left...
- Page 8 Assembly Instructions Step 9 Prepare right side Place drawer runner on the right side Slide back top of runner and use 1st hole from the front to fit 1st screw Profiled Slide runner back the front edge other way and fit the 2nd screw into the corre- sponding hole in the left...
- Page 9 Assembly Instructions Step 10 Prepare the top Tap 4 wooden dowels . into the top Note: Wooden dowels must not stick out from the edge by more than 10mm or they may damage other panels. Insert 4 large locking nuts into the top Finished front edge...
- Page 10 Assembly Instructions Step 13 Fit the top and a base to the right side Push the top and 1 base onto the right side as shown. Use a screwdriver to tighten the 4 large locking nuts fitted to the top and base Profiled Finished...
- Page 11 Assembly Instructions Step 15 Fit the left side Push the left side onto the assembly. Use a screwdriver to tighten the 7 large locking nuts fitted to the top , 2 bases and plinth Profiled front edge Step 16 The measurement from top corner X to bottom corner X must be equal to the measurement from top corner Y to bottom corner Y Fit the back Square up the unit by...
- Page 12 Assembly Instructions Step 17 Fit the 4 plastic nails Tap 2 plastic nails into the bottom edge of each of the sides Stand the unit up for the next step. Warning: The unit is heavy. Lift with care. Step 18 Fit the hanging rail and drawer Push the hanging rail...
- Page 13 Assembly Instructions Step 19 Prepare the doors Push fit 3 hinges into each door Secure each hinge with 2 screws Note: Before securing with the screws, make sure that the hinges are positioned at 90 degrees with the edge of the door.
- Page 14 Assembly Instructions Step 20 Fit doors and handles Note: The easiest way to attach each door to fit the top hinge first, then align and fit the other hinges. Push the hinge onto the front part of the hinge plate The recess at the bottom of screw B goes into the slot in the hinge plate.
- Page 15 Assembly Instructions Step 21 Adjust the doors if needed Before adjusting the doors, use a spirit level to check the base (or top) of the unit is level, front-to-back and side-to-side in the 3 positions shown. Use suitable packing pieces (not supplied) to make the unit level BEFORE making any adjustment to the hinges,...
- Page 16 Assembly is complete If you need help or have damaged or missing parts, call the Customer Helpline: 08456 400800 and quote the reference numbers on the component pages. Argos Ltd, 489-499 Avebury Boulevard, Central Milton Keynes, MK9 2NW ALR3121...
