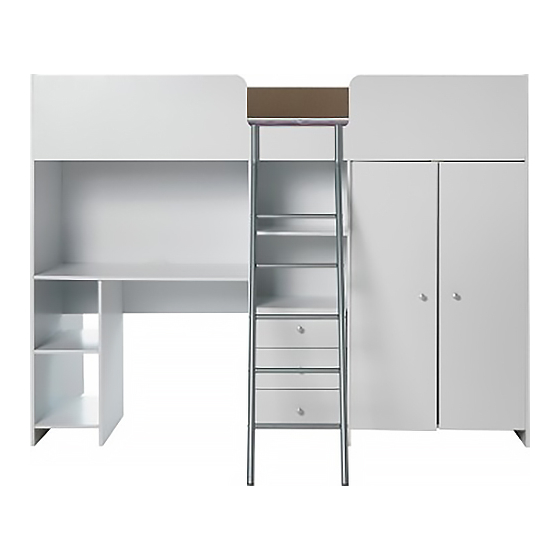

Ohio Highsleeper Shorty
Assembly Instructions
Dimensions
Width - 180cm
Depth - 80cm
Height -150cm
Important
- Please read these instructions fully before starting assembly
If you need help or have damaged or missing parts, call the Customer Helpline:
Argos = 0345 6400800
Please keep for future reference
-
365/9654
346/5013
Version 1 Date: 05/10/15
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Argos Ohio Highsleeper Shorty 365/9654
Summary of Contents for Argos Ohio Highsleeper Shorty 365/9654
- Page 1 Width - 180cm Depth - 80cm Height -150cm Important - Please read these instructions fully before starting assembly If you need help or have damaged or missing parts, call the Customer Helpline: Argos = 0345 6400800 Version 1 Date: 05/10/15...
-
Page 2: Important! Keep For Future Reference
WARNING IMPORTANT! KEEP FOR FUTURE REFERENCE This bed complies the European Standard BS EN 747-1:2012 and BS EN 747-2:2012 + A1:2015. • Follow the information on the warnings appearing on the upper bunk bed and do not remove the • warning label. - Page 3 IMPORTANT: RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE • Argos Ltd. MK9 2 NW. • This product is intended for • Assembly of this product must children in the age 6 or above.
- Page 4 Components - Panels If you have damaged or missing components, call the Customer Helpline: Argos = 0345 6400800 Please check you have all the panels listed below Pilot holes for guidance only Bed frame (177 x 33cm) Left support panel Centre right side panel (66.5 x 50cm)
-
Page 5: Tools Required
Components - Fittings Please check you have all the fi ttings listed below Note: The quantities below are the correct amount to complete the assembly. In some cases more fi ttings may be supplied than are required. 50mm Screw x 83 30mm Screw x 17 14mm Screw x 14 (24 pcs screws are... - Page 6 Assembly Instructions Step 1 Fitting the track Middle hole Important: Because of the size of this unit we recommend that it is built in the room intended for use. 1.7cm Warnung: Finished front edge Be aware of the danger of young children under six years old falling from the upper...
- Page 7 Assembly Instructions Step 1 - continued Middle hole Position Runners front edge of the Centre left side panel Silde top of the Runners back. 1.7cm Use screws to fix the Runners on the Centre left side panel The front part of Note: the runner should be approximately 1.7cm from...
- Page 8 Assembly Instructions Step 2 Fitting the shelves Use Screws to fix the Rail support and Door hinges ‘back plates’ onto the Centre right side panel and Right side panel Use Screws to fix Plastic supports onto the Center front support Use Screws to fix Center front support...
- Page 9 Assembly Instructions Step 2 - continued Fasten Screws(9 pcs) by Allen key to fix Centre right side panel onto the Centre back panel , Centre shelves and Centre bottom panel Unfinished back surface Position Centre left side panel onto the unit.
- Page 10 Assembly Instructions Step 3 - continued Use Screws to fix Right front support onto the Right bottom panel Use Screws Allen key to fix Right bottom panel onto the unit.
- Page 11 Assembly Instructions Step 4 Fitting the wardrobe Note: It would be useful to ask someone to help you at this stage. Use Screws(5 pcs) by Allen key to fix the Right back panel onto the unit. Finished front surface Use Screws(5 pcs) by Allen key to fix the Right side panel...
- Page 12 Assembly Instructions Step 5 Fitting the left shelves Use Screws to fix Plastic supports onto the Left front support Use Screws to fix Left front support onto the Left bottom panel Use Screws by Allen to fix the Left support panel onto the Left shelf and Left...
- Page 13 Assembly Instructions Step 6 Fitting the bed panel Note: It would be useful to ask someone to help you at this stage. Use Screws(9 pcs) by Allen key to fix Bed panel onto the unit. Use Screw covers(3 pcs) to cover the screw heads.
- Page 14 Assembly Instructions Step 7 Fitting the left side panel Finished front surface Note: It would be useful to ask someone to help you at this stage. Use Screws(4 pcs) by Allen key to fix Left back panel onto the unit. Use Screws(11 pcs) by Allen key to fix...
- Page 15 Assembly Instructions Step 8 Finished Fitting the bed frames front surface Note: It would be useful to ask someone to help you at this stage. Always check the direction of Front bed frame before fixing the board. ( longer side: 83.2 cm, shorter side: 54 cm ) Use Screws(12 pcs) by Allen key...
- Page 16 Assembly Instructions Step 9 Fitting the doors Fix 2 Door hinges Door panel using Screws Use Screws to fix Handle onto the door. Carefully stick the Door onto the Door panel Step 10 With help, slot Door hinges onto ‘hinge plates’.
- Page 17 Assembly Instructions Step 11 Hinge adjustment To move doors up or down: loosen screws shown and move doors to suit. Door Once doors are aligned, re-tighten and insert 2 Screws into ‘hinge plates’. Door To move doors in or out: loosen screw shown and move doors to suit.
- Page 18 Assembly Instructions Step 12 Drawer assembly Caution: Always check the assembly method is correct before applying glue. Note: It would be useful to ask someone to help you at this stage. Use Screws to fix the Drawer right side panel and Drawer left side panel onto...
- Page 19 Assembly Instructions Step 12 - continued Use Screw to fix the Handle onto the Drawer front panel Carefully locate the Drawer front panel onto the unit. Insert 4 Locking nuts into the unit. Use a screwdriver to turn Locking nuts clockwise to lock.
- Page 20 Assembly Instructions Step 13 Fitting the ladder Note: It would be useful to ask someone to help you at this stage. Use Screws Spring washers to fix the Ladder steps onto the Ladder posts Carefully place the ladder on the unit.
- Page 21 Complies BS EN 747-1:2012 and BS EN 747-2:2012 + A1:2015. Assembly is complete. If you need help or have damaged or missing parts, call the Customer Helpline: Argos = 0345 6400800...
