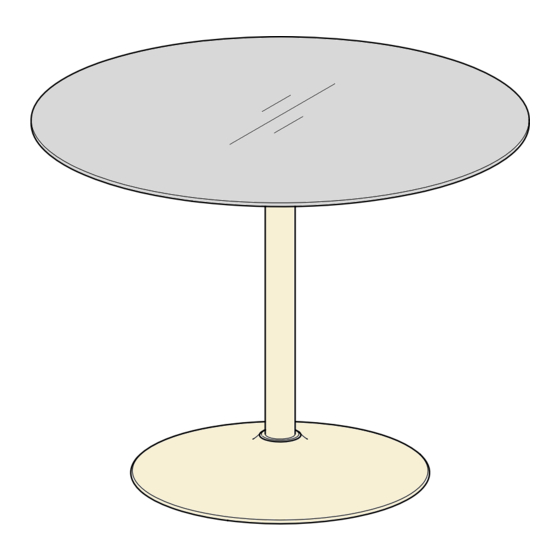

Gino Glass Round Table
Assembly Instructions
346/4423
- Please keep for future reference
Dimensions
Dia - 100cm
Height - 75.5cm
Important
– Please read these instructions fully before starting assembly
If you need help or have damaged or missing parts, call the Customer Helpline:
Argos = 0345 6400800
Issue 1 - 25/10/14
Advertisement
Related Manuals for Argos 346/4423
Summary of Contents for Argos 346/4423
- Page 1 - Please keep for future reference Dimensions Dia - 100cm Height - 75.5cm Important – Please read these instructions fully before starting assembly If you need help or have damaged or missing parts, call the Customer Helpline: Argos = 0345 6400800 Issue 1 - 25/10/14...
- Page 2 • If the glass is chipped or broken, stop using the product and consult the Manufacturer or Supplier. reference. • Imported by: • Batch No: 545019（按订单PO号） Argos Ltd. • Date of Manufacture: Dec.2014（按订单出货年月） 489-499 Avebury Boulevard. • Type of glass used: 8mm toughened glass Saxon Gate West.
- Page 3 Components - Panels If you have damaged or missing components, call the Customer Helpline: Argos = 0345 6400800 Please check you have all the panels listed below Post Connecting plate Bottom weight plate (dia6 x 65.5 cm) (dia11 cm) (dia46 x 6.3 cm)
- Page 4 Components - Fittings Please check you have all the fittings listed below Note: The quantities below are the correct amount to complete the assembly. In some cases more fittings may be supplied than are required. 20mm Bolt x 3 25mm Bolt x 3 80mm Bolt x 1 Small plain washer x 3 Large plain washer x 1...
- Page 5 Assembly Instructions Step 1 Two people are needed during assembly. The bolt, nut, carboard, foams fixing in between bottom weight plate and base are only for packing purpose. Package material should be removed before assembly. bolt foam foam carboard...
- Page 6 Assembly Instructions Step 2 Assemble base Fix post , bottom weight plate and base by using bolt , large spring washer large plain washer Tightly secure the bolt using large hex key Step 3 Assemble connecting plate Turn the base upright, fix connecting plate to post by using bolts Tightly secure the bolts...
- Page 7 Tightly secure the bolts using middle hex key Remove the plastic film on table top. Assembly is complete. Customer Helpline: If you need help or have damaged or missing parts, call the Argos = 0345 6400800...
