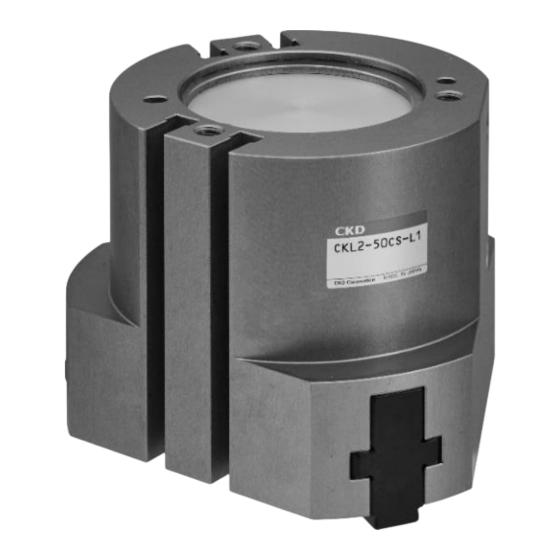

Powerful Chuck
CKL2 Series
CKLG2 Series
INSTRUCTION MANUAL
SM-289067-A/3
• Read this Instruction Manual before using the product.
• Read the safety notes carefully.
• Keep this Instruction Manual in a safe and convenient place for future reference.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CKL2 Series and is the answer not in the manual?

Questions and answers

Related Manuals for CKD CKL2 Series

Summary of Contents for CKD CKL2 Series

  • Page 1 Powerful Chuck CKL2 Series CKLG2 Series INSTRUCTION MANUAL SM-289067-A/3 • Read this Instruction Manual before using the product. • Read the safety notes carefully. • Keep this Instruction Manual in a safe and convenient place for future reference.

  • Page 2: Preface

    • Since there are a wide variety of customer applications, it is impossible for CKD to be aware of all of them. Depending on the application or usage, the product may not be able to exercise its full performance or an accident may occur due to fluid, piping, or other conditions.

  • Page 3: Safety Information

    SM-289067-A/3 SAFETY INFORMATION SAFETY INFORMATION When designing and manufacturing any device incorporating the product, the manufacturer has an obligation to ensure that the device is safe. To that end, make sure that the safety of the machine mechanism of the device, the fluid control circuit, and the electric system that controls such mechanism is ensured.

  • Page 4: Precautions On Product Use

    • For applications where life or properties may be adversely affected and special safety measures are required. (Exception is made if the customer consults with CKD prior to use and understands the specifications of the product. However, even in that case, safety measures must be taken to avoid danger in case of a possible failure.)

  • Page 5: Precautions On Product Disposal

    SM-289067-A/3 SAFETY INFORMATION Precautions on Product Disposal CAUTION When disposing of the product, comply with laws pertaining to disposal and cleaning of wastes and have an industrial waste disposal company dispose of the product. 2020-01-23...

  • Page 6: Table Of Contents

    SM-289067-A/3 CONTENTS CONTENTS PREFACE ........................... i SAFETY INFORMATION ....................ii Precautions on Product Use ..................iii Precautions on Design and Selection ................iii Precautions on Product Disposal .................. iv CONTENTS ........................v PRODUCT OVERVIEW ..................... 1 Model Number Indication ..................1 1.1.1 Product model number ...................

  • Page 7: Product Overview

    1.1.1 Product model number ◼ Example of model number indication <CKL2 Series> Note 1： Single acting (O, C) and long stroke (L1) cannot be selected at the same time. Note 2： For long stroke (L1), only (A) sizes 50CS, 63CS, 80CS and 100CS can be selected.

  • Page 8: Switch Model Number

    SM-289067-A/3 1. PRODUCT OVERVIEW ◼ Example of model number indication <CKLG2 Series> Note 1: Attachment is commonly used for inner and outer chuck. Note 2: Refer to catalog for the dimensions and compatible model of the Attachment.When ordered as an option, three are attached at shipment.

  • Page 9: Specifications

    SM-289067-A/3 1. PRODUCT OVERVIEW 1.2 Specifications 1.2.1 Product specifications Descriptions CKL2 16CS 20CS 25CS 32CS 40CS 50CS 63CS 80CS 100CS Size ø16 ø20 ø25 ø32 ø40 ø50 ø63 ø80 ø100 Bore size Compressed air Working fluid Max.working pressure Min. working pressure Ambient temperature 5 to 60 °C...

  • Page 10: Switch Specifications

    SM-289067-A/3 1. PRODUCT OVERVIEW 1.2.2 Switch specifications Proximity 2-wire type Proximity 3-wire type Descriptions T2H/V T3H/V Only for programmable controller For programmable controller, relay Applications Output method － － 10 VDC to 28 VDC Power supply voltage 10 VDC to 30 VDC 30 VDC or less Load voltage 100 mA or less...

  • Page 11: Installation

    SM-289067-A/3 2. INSTALLATION 2. INSTALLATION 2.1 Environment CAUTION When using the product in a cutting, casting, or welding plant, install a cover to prevent foreign matters such as cutting fluid, chips, powder, and dust from entering. Do not use the equipment in the following environments. •...

  • Page 12: Mounting

    SM-289067-A/3 2. INSTALLATION 2.3 Mounting 2.3.1 Mounting the body The body can be mounted from two directions,using a body tap and a body through hole. Select the mounting direction appropriate for the application.Do not put any dents and scratches on the body mounting surface or the finger that may affect their flatness and perpendicularity.
  • Page 13 SM-289067-A/3 2. INSTALLATION ◼ Allowable load Gripping power represents the force holding the workpiece, as shown in the figure below. Performance data indicates the gripping power at chuck finger length ℓ at a supply pressure of 0.3 to 0.7 MPa. Finger Workpiece To find the gripping power from performance data, if the distance from the attachment to the workpiece...

  • Page 14: Finger

    SM-289067-A/3 2. INSTALLATION 2.3.2 Finger ◼ Rigidity of the attachment If the attachment is not rigid enough, sagging can result and cause the finger to twist or adversely affect operation. ◼ Mounting the attachment The effect on the chuck body must be taken into consideration when mounting the attachment to the finger.
  • Page 15 SM-289067-A/3 2. INSTALLATION • When gripping long or large workpieces, stable gripping requires a grip on the center of gravity. Stability is a must when using larger or multiple workpieces as well. • Select a model that has sufficient opening / closing width for the workpiece size. •...

  • Page 16: Mounting The Switch

    SM-289067-A/3 2. INSTALLATION 2.3.3 Mounting the switch ◼ Mounting position For the switch to function at an intermediate position of the stroke, secure the piston at the position where the switch needs to function and then slide the switch on the piston back and forth to find the positions where the switch turns on when slid forward and when slid backward.
  • Page 17 SM-289067-A/3 2. INSTALLATION ◼ Changing the position of the switch Loosen the fastening screw (set screw). Move the switch body along the groove on the side of the body or the rail plate and then tighten the screw at the predetermined position. ◼...

  • Page 18: Piping

    SM-289067-A/3 2. INSTALLATION 2.4 Piping 2.4.1 Piping WARNING Insert the tube into the fitting until it firmly rests on the tube end and make sure that the tube does not come off before use. • Use pipes that are made of corrosion-resistant materials after the filter such as zinc-plated pipes, nylon tubes, and rubber tubes.
  • Page 19 SM-289067-A/3 2. INSTALLATION ◼ Seal material Use a seal tape or a seal material to stop leakage from piping. Apply a seal tape or seal material to the screw threads leaving two or more threads at the pipe end uncovered or uncoated. If the pipe end is fully covered or coated, a shred of seal tape or residue of seal material may enter inside of the pipes or device and cause a failure.

  • Page 20: Wiring

    SM-289067-A/3 2. INSTALLATION 2.5 Wiring 2.5.1 Proximity switch ◼ Connection of lead wires Turn off the power to the device in the electric circuit to which the switch is to be connected and connect the lead wires according to their color. Not turning off the power may cause damage to the electric circuit of the switch load.
  • Page 21 SM-289067-A/3 2. INSTALLATION ◼ Protection of the output circuit For the following cases, refer to the figures below and install a protection circuit: • When an inductive load (relay or solenoid valve) is connected and used: See Ex. 1 Use a surge absorption element since a surge voltage is generated when the switch is turned off. •...
  • Page 22 SM-289067-A/3 2. INSTALLATION ◼ Connection to the programmable controller The connection method depends on the type of the programmable controller. Connect as shown below. Programmable controller Programmable controller Blue Brown Blue Brown Switch Switch Input Input termi- termi- nals nals Blue Brown Blue...

  • Page 23: Usage

    SM-289067-A/3 3. USAGE 3. USAGE 3.1 Using the Chuck CAUTION Do not apply excessive load to the finger when attaching, removing, or transferring the workpiece. Scratches and dents may occur on the rolling surface of the finger linear guide and possibly cause a malfunction.

  • Page 24: Maintenance And Inspection

    SM-289067-A/3 4. MAINTENANCE AND INSPECTION 4. MAINTENANCE AND INSPECTION WARNING Do not disassemble the product. Do not touch electrical wiring connections (bare live parts) of actuators equipped with switches, and other such actuators. Do not touch live parts with bare hands. An electric shock may occur.

  • Page 25: Periodic Inspection

    SM-289067-A/3 4. MAINTENANCE AND INSPECTION 4.1 Periodic Inspection In order to use the product under optimum conditions, perform a periodic inspection every six months or when the operation count reaches 5 hundred thousand times. 4.1.1 Inspection item • Actuation state •...

  • Page 26: Internal Structure

    SM-289067-A/3 4. MAINTENANCE AND INSPECTION 4.1.4 Internal structure <CKL2> C (normally closed) Standard (double acting) O (normally open) <CKLG2> Standard (double acting) O (normally open) C (normally closed) 2020-01-23...
  • Page 27 SM-289067-A/3 4. MAINTENANCE AND INSPECTION Parts list <CKL2> Part name Material Remarks Body Aluminum alloy Finger Steel Stainless steel (16 to 32CS), Piston A Steel (40 to 100CS) Piston B Aluminum alloy Piston C Aluminum alloy Aluminum alloy Cylinder guard Stainless steel Center guard Piston packing...

  • Page 28: Troubleshooting

    SM-289067-A/3 5. TROUBLESHOOTING 5. TROUBLESHOOTING 5.1 Problems, Causes, and Solutions If the product does not operate properly, check the table below for a possible solution. 5.1.1 Finger (cylinder) Problem Cause Solution No pressure or insufficient pressure is applied. Secure sufficient pressure. No signal is input to directional control valve.

  • Page 29: Switch

    Ambient temperature is too high or too low. to 60°C. Magnetic field is nearby. Install a magnetic shield. External signal is faulty. Check the external circuit. If you have any other questions or concerns, contact your nearest CKD sales office or distributor. 2020-01-23...

  • Page 30: Warranty Provisions

    If the product specified herein fails for reasons attributable to CKD within the warranty period specified below, CKD will promptly provide a replacement for the faulty product or a part thereof or repair the faulty product at one of CKD’s facilities free of charge.
