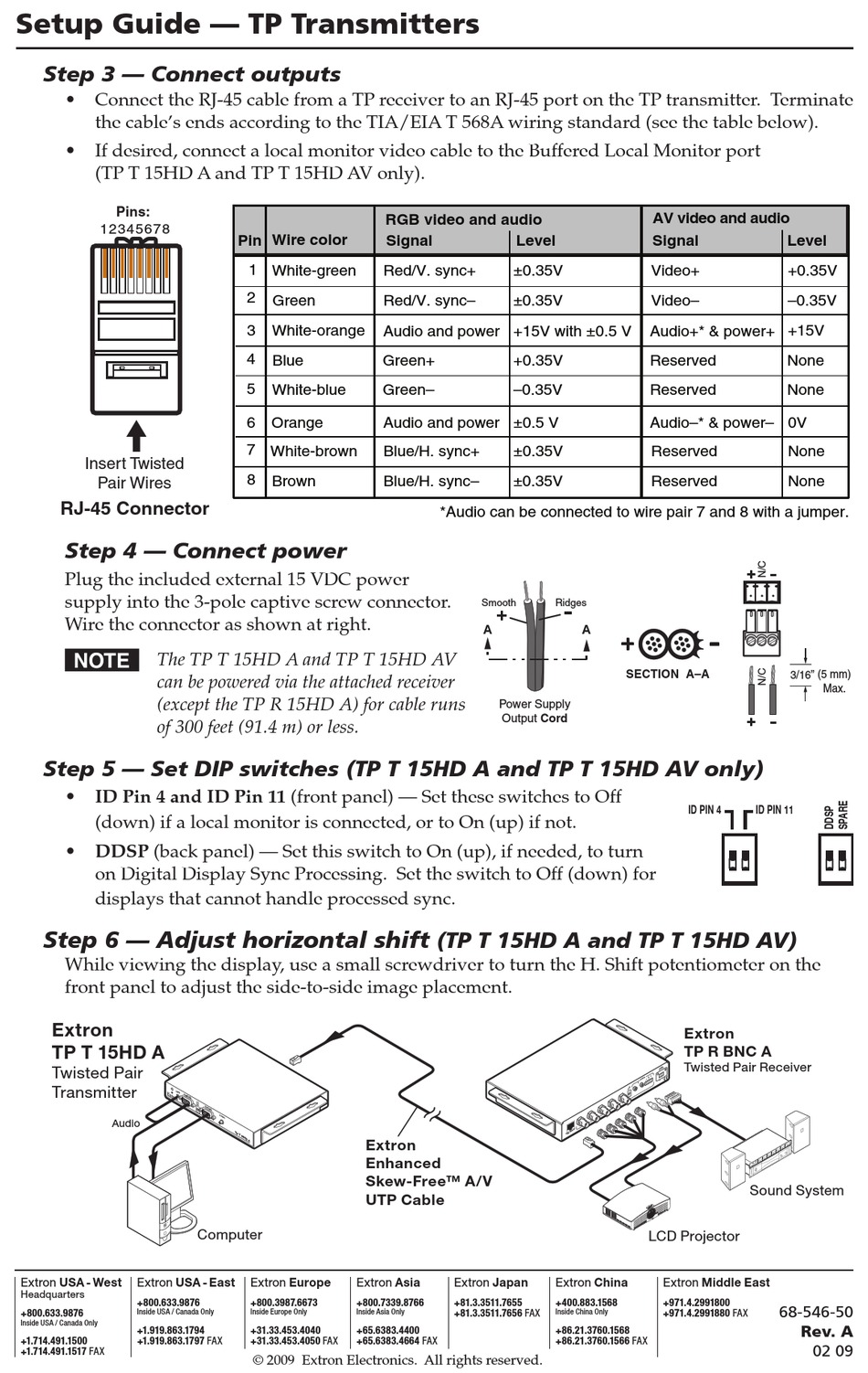

Setup Guide — TP Transmitters
Step 3 — Connect outputs
• Connect the RJ-45 cable from a TP receiver to an RJ-45 port on the TP transmitter. Terminate
the cable's ends according to the TIA/EIA T 568A wiring standard (see the table below).
• If desired, connect a local monitor video cable to the Buffered Local Monitor port
(TP T 15HD A and TP T 15HD AV only).
Pins:
12345678
Insert Twisted
Pair Wires
RJ-45 Connector
Step 4 — Connect power
Plug the included external 15 VDC power
supply into the 3-pole captive screw connector.
Wire the connector as shown at right.
N The TP T 15HD A and TP T 15HD AV
can be powered via the attached receiver
(except the TP R 15HD A) for cable runs
of 300 feet (91.4 m) or less.
Step 5 — Set DIP switches (TP T 15HD A and TP T 15HD AV only)
• ID Pin 4 and ID Pin 11 (front panel) — Set these switches to Off
(down) if a local monitor is connected, or to On (up) if not.
• DDSP (back panel) — Set this switch to On (up), if needed, to turn
on Digital Display Sync Processing. Set the switch to Off (down) for
displays that cannot handle processed sync.
Step 6 — Adjust horizontal shift
While viewing the display, use a small screwdriver to turn the H. Shift potentiometer on the
front panel to adjust the side-to-side image placement.
