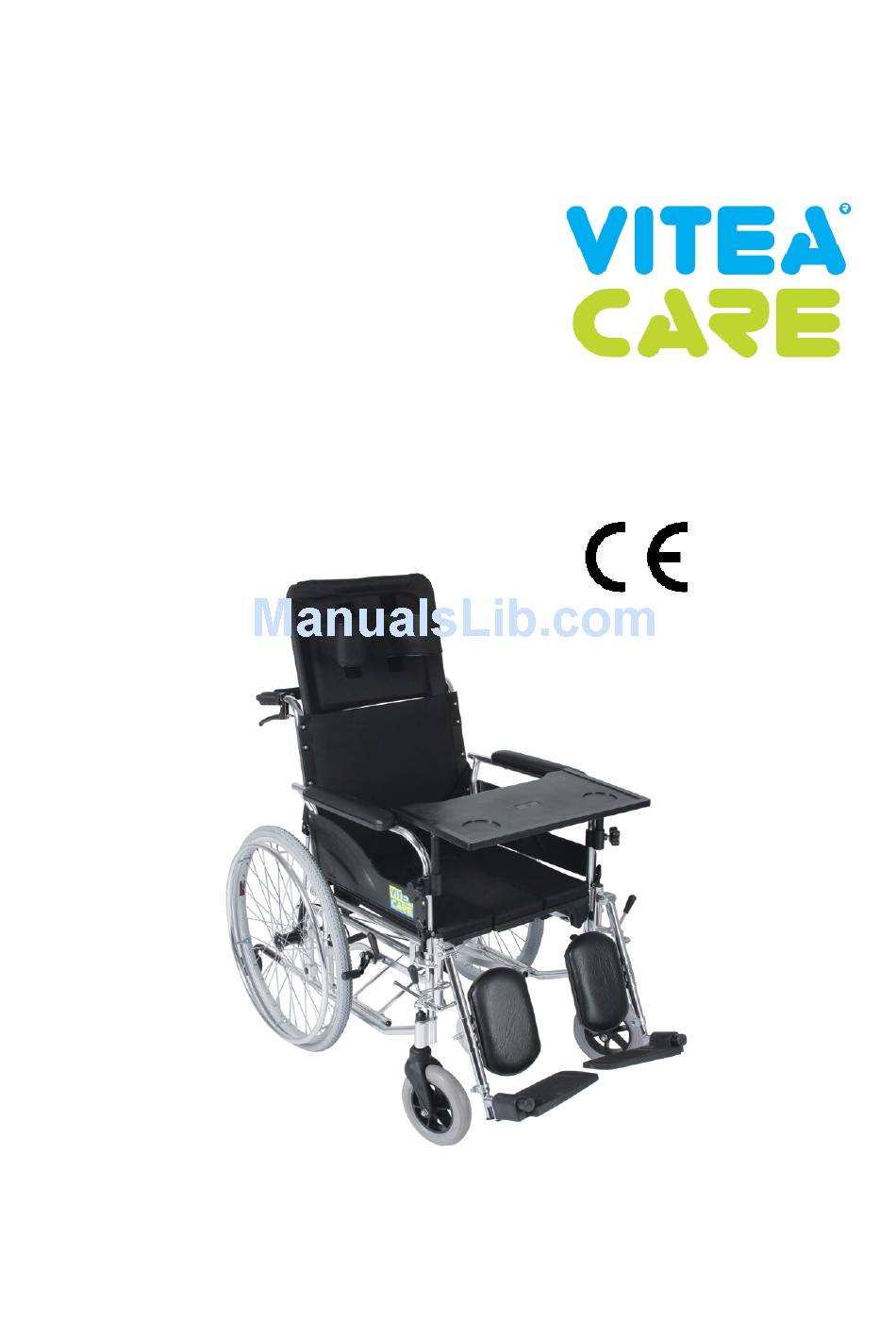

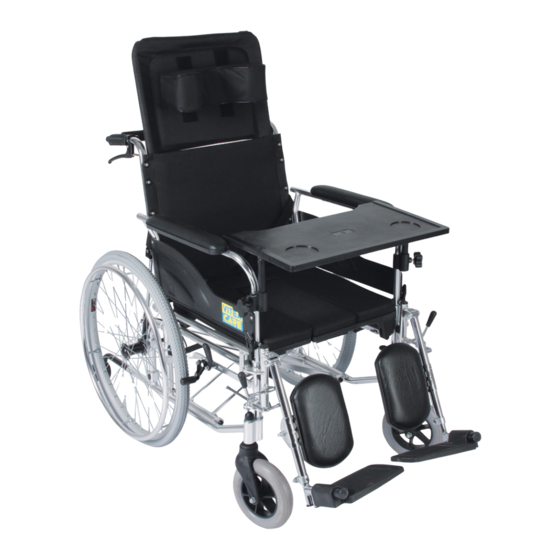

  • Page 1 User Manual Recliner Plus Special wheelchair VCWK7T Edition MG 11.2015...

  • Page 2: Table Of Contents

    Tabele of contents Introduction ............................. 3 Description of product ........................3 Application ............................6 Contraindications ..........................6 Usage ............................... 6 Safety of use – WARNING! ......................9 Everyday use and maintenance ...................... 11 Technical parameters ........................20 Symbols ............................20 10.

  • Page 3: Introduction

    1. Introduction Thank you for choosing our product. We are deeply convinced that it will meet your expectations. Please read this document before first use. This manual was made in order to provide the necessary information on the safe use of the device. The correct application of the recommendations will contribute significantly to extend the durability and aesthetics of the product.
  • Page 4 14. Armrest 15. Table 16. Side plate of the armrest 17. Element mocujący nóżki stolika. 18. Table corb 19. Seat 20. Footrest lever. 21. Seat frame. 22. Brake lever 23. Cros frame. 24. Calfrest. 25. Footrest platform. Elements that should be inside the packaging: Illustration 2.
  • Page 5 Illustration 5. Toilet container Illustration 6. Armrests Table Two table legs Two mounting elements Four pads Illustration 7. Table with mounting elements Illustration 8. Footrests...

  • Page 6: Application

    Illustration 9. Wheelchair Illustration 10. Anti-tip wheels 3. Application The wheelchair is used in order to commute by people with disabilities e.g. after the spinal cord damages, cerebral palsy or various lower limb injuries, neuromuscular diseases, post-traumatic cranial cerebral or for geriatric patients. It is also intended for people who want to actively and comfortably participate in everyday life.
  • Page 7 UNFOLDING THE WHEELCHAIR • The wheelchair must be placed with rear wheels in front to You. • Unfold the handle holder towards the outside. • Then place wheelchair with front wheels in front of you. • Press seat frames, until complete unfolding. (Illustration 11., 12.) Illustration 11.
  • Page 8 Illustration 16. Illustration 17. • Armrests should mounted in openings at a side edge of the seat. The locking clip should be on the outer side of the wheelchair. (Illustration 16.,17.) Illustration 18. Illustration 19. Illustration 20. • Higher backrest, should mount in holes localized in the rear of the backrest. (Illustration 18., 19.) •...

  • Page 9: Safety Of Use - Warning

    Footrest lock Mounting bracket Wheelchair frame hanger Illustration 23. Illustration 24. Footrest Lever Illustration 25. • To attach footrests, should suspend mounting bracket on wheelchair frame hanger (Illustration 23 .; 24) and turn it to inside to the moment where will hear a click Unfold the footrest platform.
  • Page 10 i) The wheelchair is not intended for patient transport on stairs, or puling the patient on it. The construction of the wheelchair and it joining elements are not designed for such a large overload if it is used in this way. This can cause weakness or damage of the entire structure supporting the wheelchair and possible accidents! j) The wheelchair is designed to use indoors and outdoors only on hard and even surfaces.

  • Page 11: Everyday Use And Maintenance

    ff) Strength of the breaking intensity may be reduced after long exploitation of the wheelchair. You are allowed to adjust breaks yourself. In order to do that you must loosen the screws locking the position of the break, move the mechanism of the break towards the wheel so that the wheel will not rotate when break will be on again (try the adjustment with the user sitting on the wheelchair).
  • Page 12 Fastening element Illustration 27. • Screw after the screwing should be facing the front side of the wheelchair. (Illustration 27.) Illustration 28. • Table legs should be placed in the mounting holes (Illustration 28.) • To install table legs, pull out it from the mounting holes. •...
  • Page 13 Illustration 30. • To remove the toilet container, just pull it out of gantry. Then put on the seat removable element . SITTING ON THE WHEELCHAIR: • Place the wheelchair in a position that will make easier transporting patient (by the bed, chair, close to lifting distance) •...
  • Page 14  Backwards without the help of a caretaker • Experienced wheelchair user can cross on his own the threshold or curbs. • Turn the wheelchair in such a way that both rear wheels were turned toward the curb • Lean forward to move the centre of gravity in forward. •...

  • Page 15: Illustration

    The system of quick release rear wheels Illustration • The wheelchair is equipped with system of quick release rear wheels. • To install or remove the rear wheels, press the system of quick release rear wheels button (Illustration 32) and pull or push a wheel. •...

  • Page 16: Illustration

    BRAKE MECHANISM Brake Lever Brake Illustration 34. • Illustration 22 shows the brake mechanism. • To activate the brake, pull the brake lever towards the rear wheel to the point where the brake tightly touches to the rear wheel • Make sure that the brake lever does not automatically switch off when you try to move the wheelchair.

  • Page 17: Illustration

    PUMPING TYRE (It applies to stroller fitted with wheels pumped) Schrader valve Prest valve Illustration 39. Illustration 40. • Before pumping the tires, identify the type of valve which is located on the tire. This may be one of the two valves shown in Illustration 26 and 27. •...
  • Page 18 PRESSURE IN WHEELS AND BRAKING POWER • Pressure in wheels should be select to the user weight and then with assistance caregiver check the operation of the parking brakes (wheelchair with user facing toward the fall, can not roll on a plane with a slope of 15%.) •...
  • Page 19 TECHNICAL REVIEW The review should be carried out regularly, it should be preceded by thorough cleaning the wheelchair (so as to reveal any hidden damage). Frequency Object of control Comments Before first Checking the technical condition and Check if any elements have any installation all the elements within the visible mechanical damage.

  • Page 20: Technical Parameters

    8. Technical parameters Permitted user weight 90 kg Usage period: 5 years since production date Wheelchair hight with maximum backrest hight 1230 mm Wheelchair width 700 mm Maximum length wheelchir 1650 mm Minimum length wheelchir 1300 mm Seat width 460 mm Seat depth 455 mm Backrest wildth...
  • Page 21 Read the user's manual Warning Catalog number Serial number Protect from humidity Protect from sunlight Permitted user weight. Use inside and outside buildings Maximum safe slope. The possibility of fingers jamming.

  • Page 22: Contact Details

    Do not stand on the footrest The product is intended to transport by car. The product is not designed for use as a seat to transport in a motor vehicle. The product is intended to the transport by plane. Temperature of storage and use 10.
