Superheat controller, Type EKE 1A, 1B, 1C, 1D

4.3 Typical EKE applications

The EKE 1x series can be used for various refrigeration applications like Chiller, Reversible Chillers, Reversible Heat
pump, AC air handler, cold room Standalone, Multi evaporators ext.

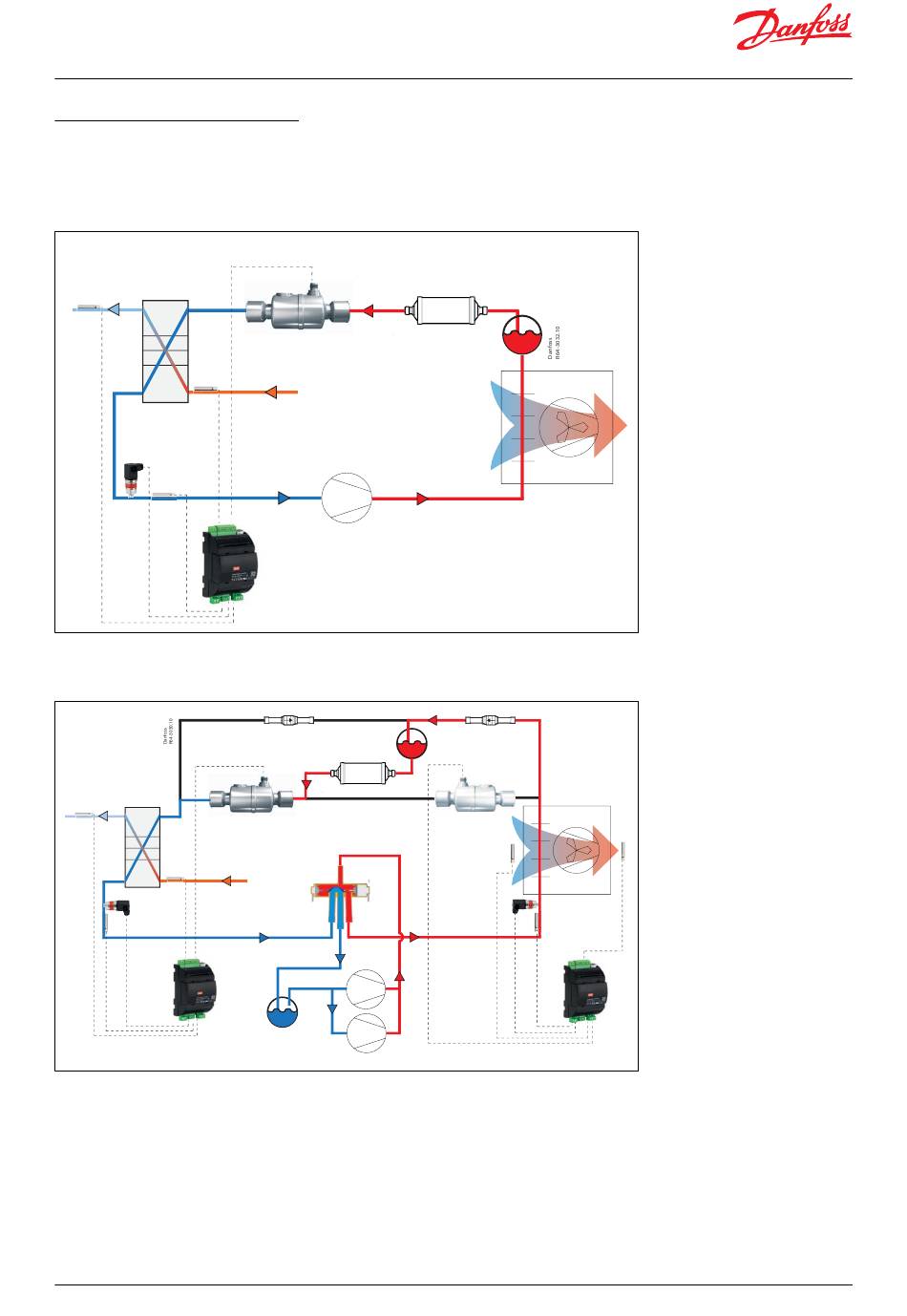

Chiller (cooling only)
Figure 22: Chiller (cooling only)
Chiller cool only
S4 S4
E
S3 S3
P
e
S2
Reversible chillers (Air to water)
Figure 23: Reversible chillers (Air to water)
S4
E
S3 S3
P
P
e
S S2
EKE
EK EKE
controller
co controller
Reversible Chiller Heating
