SHARP: 50, 80, 100 - User manual Safety..................................3 Safety precautions............................... 3 Warning information..............................5 Graphical symbols................................5 Receiving..................................5 Installation.................................. 6 Mechanical installation..............................6 Electrical installation..............................6 Operation..................................7 User interface - Control panel............................7 Charging..................................7 GET Ready – NFC...............................8 Parameter settings..............................8 Checking charging parameters............................ -
Page 3: Safety
SHARP: 50, 80, 100 - User manual Safety Safety precautions Read the instructions. The manual contains important safety and operating instructions. Always keep this manual nearby the product. Read and understand this instruction, the battery instruction provided by your battery manufacture, and your employer’s safety practice, before using, installing, or servicing the product. - Page 4 SHARP: 50, 80, 100 - User manual WARNING High voltage! Disconnect the battery and power supply before maintenance, servicing or dismantling. Do not touch uninsulated battery terminals, connectors or other live electrical parts. Do not penetrate the ventilation slots with any object. Check that the power supply at the site of the installation complies with the rated voltage specified on the battery charger’s data label.
-
Page 5: Warning Information
SHARP: 50, 80, 100 - User manual Warning information Hazardous situations and precautions are presented in the text as follows. WARNING Indicates a potentially dangerous situation. Death or serious injury may occur if appropriate precautions are not taken. CAUTION Indicates a situation where damage or injury could occur. If it is not avoided, minor injury and/or damage to property may result. -
Page 6: Installation
SHARP: 50, 80, 100 - User manual Check the delivered parts against the delivery note. Contact your supplier if something is missing, see Contact information. Installation Mechanical installation • Install the battery charger indoors in a dry, clean and well-ventilated environment, unless the charger is at least IPX4-rated. -
Page 7: Operation

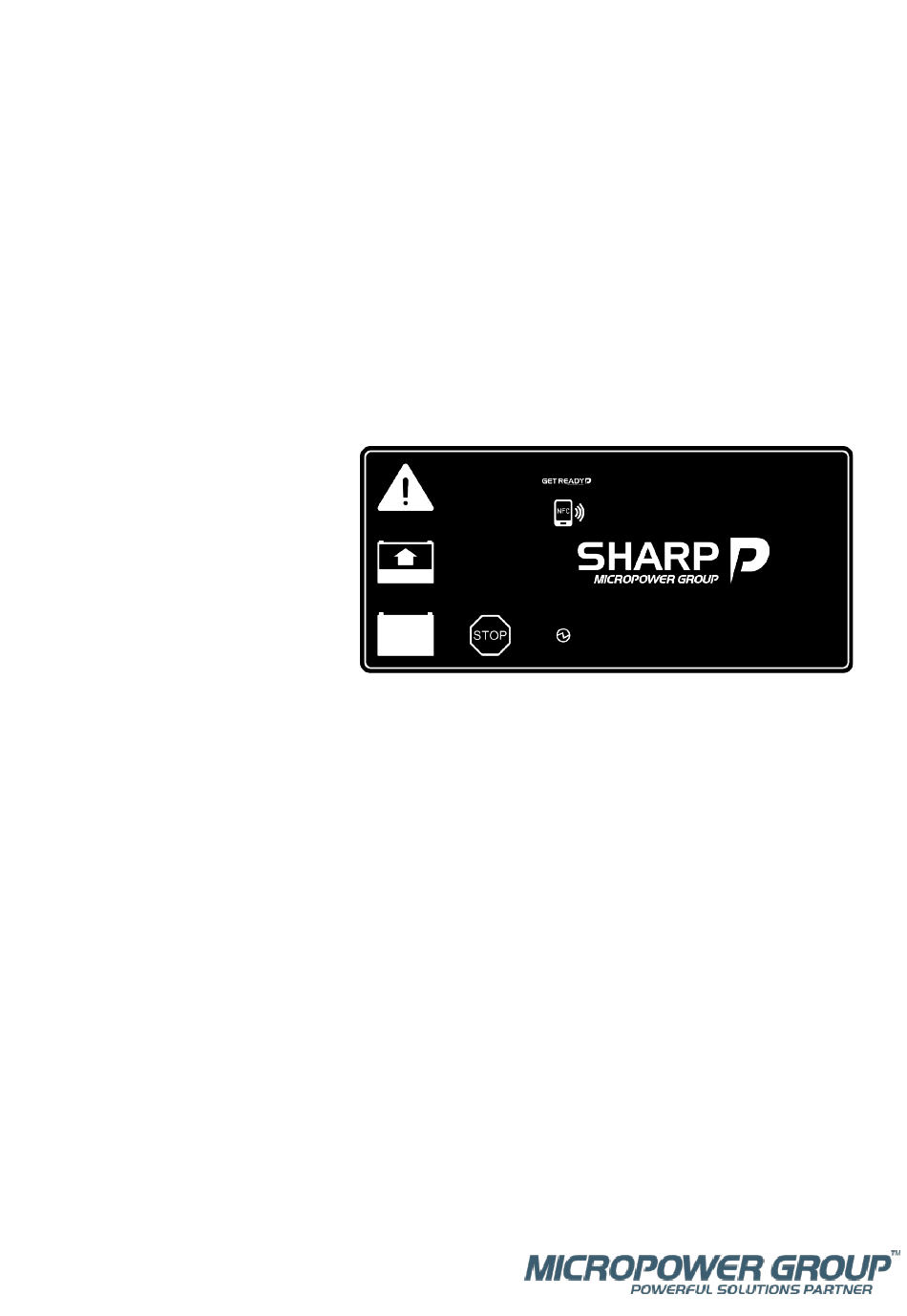

SHARP: 50, 80, 100 - User manual Operation User interface - Control panel See Control panel 1. Control panel 2. Alarm indicator (red) 3. Charging indicators (green and yellow) 4. STOP button 5. Mains power indicator (blue) 6. NFC symbol ( GET Ready – NFC) Charging WARNING High voltage! -
Page 8: Get Ready - Nfc
The unit has Near Field Communication (NFC) and can communicate with compatible iOS-/Android devices. 1. Activate NFC on the current iOS-/Android device. 2. Put the iOS-/Android device on the units NFC symbol. For further information, refer to GET APP information on Micropower Support Center. Parameter settings WARNING Incorrect settings of the battery charger may damage the battery and generate explosive gases from the battery during charging. -
Page 9: Hmi Indications
SHARP: 50, 80, 100 - User manual 7. Once the lights show the required charging curve, press and hold the STOP button again for 3 seconds. The charger will respond by flashing three times with all the lights and then display the selected battery nominal voltage code. -
Page 10: Checks
SHARP: 50, 80, 100 - User manual WARNING High voltage! Do not use the battery charger if it is damaged. Disconnect the mains immediately. Do not touch damaged parts, uninsulated battery terminals, connectors, or other live electrical parts. Contact service personnel. Checks 1. -
Page 11: Recycling
SHARP: 50, 80, 100 - User manual Recycling The product is recycled as electronic scrap. Local regulation apply and should be followed. Contact information Micropower Sweden AB Idavägen 1, SE-352 46 Växjö, Sweden Phone: +46 (0)470-727400 e-mail: support@micropower.se www.micropower-group.com 2023-02-02... -
Page 12: Capacity Code
SHARP: 50, 80, 100 - User manual Capacity code 2023-02-02... -
Page 13: Charging Curve
LK10-18, Ionic mixing, Flooded Lead-Acid LK20-09, Gel Lead-Acid LK10-04, Ionic mixing, Flooded Lead-Acid For more information on charging curves and charging times, please contact your local Micropower representative or visit www.micropower-group.com. Battery voltage setting The chargers output voltage can be reduced with this setting. -
Page 14: Figures
SHARP: 50, 80, 100 - User manual Figures Control panel Sharp™ 50 Sharp™ 80 2023-02-02... -
Page 15: Sharp™ 100 X
SHARP: 50, 80, 100 - User manual Sharp™ 100 X Sharp™ 100 2023-02-02... -
Page 16: Approvals
SHARP: 50, 80, 100 - User manual Approvals SHARP 30, 50, 80, 100 - EU Declaration of Conformity 2023-02-02...
