3.2 Opening the device

1 USB connector
For the connection to a PC.
3 I/O connector
For output of an inject marker signal.
5 Type label
Contains specifications concerning supply
voltage and serial number.
3.2 Opening the device
10
￭￭￭￭￭￭￭￭
1
2

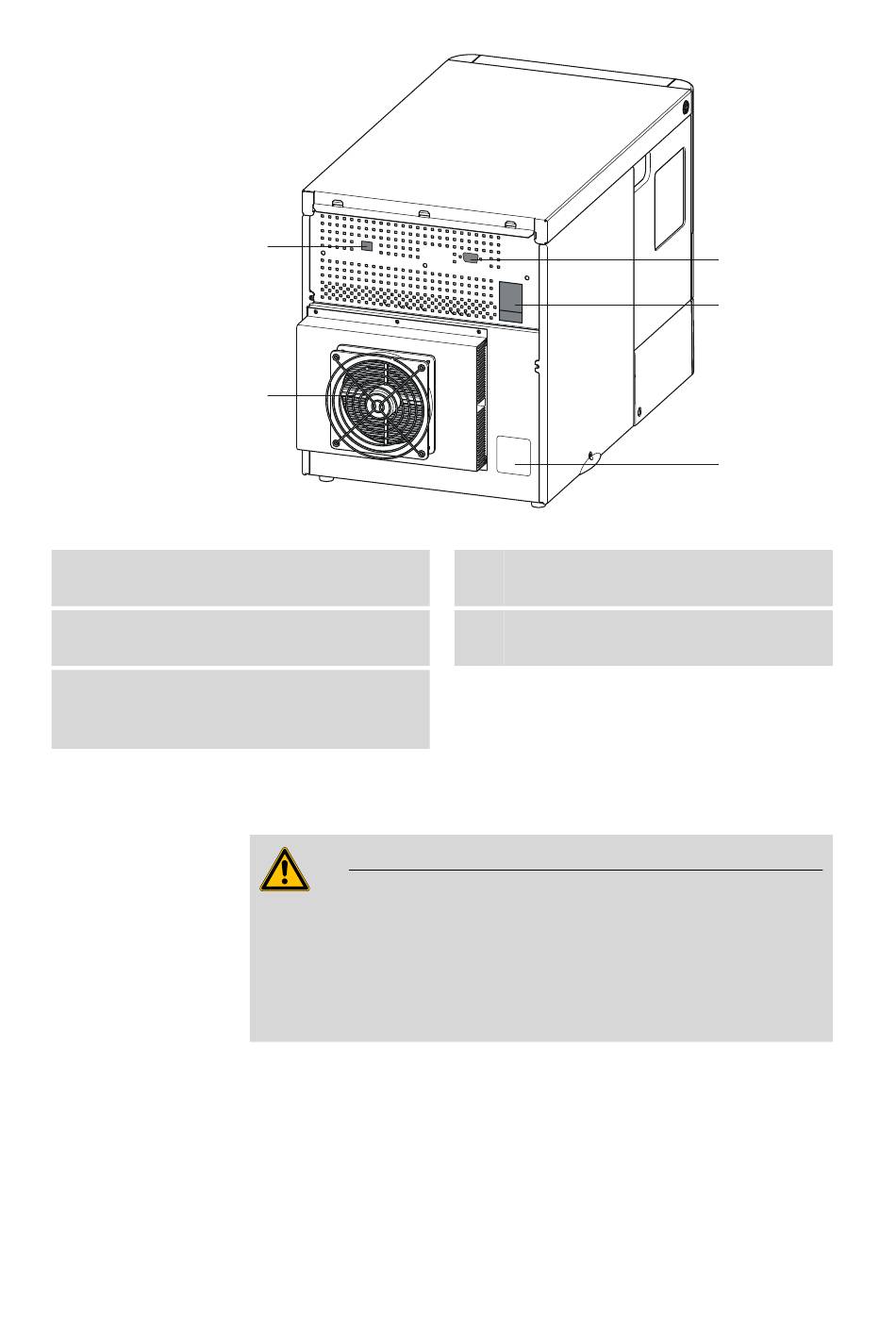

Figure 2 889 IC Sample Center Basic - rear
WARNING
Mobile parts are to be found in the interior of the 889 IC Sample Center
Basic. Reaching into the interior during operation puts personnel at a
serious risk of injury. Open the door only if the device is in hibernate
mode. Due to safety considerations, no needle movements are carried
out by the device when the door is open.
2 Fan
For the cooling unit. Do not cover!
4 Power socket
With power switch and fuse holder.
￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭
3
4
5
889 IC Sample Center Basic
