Summary of Contents for Eliminator Lighting COSMIC BURST

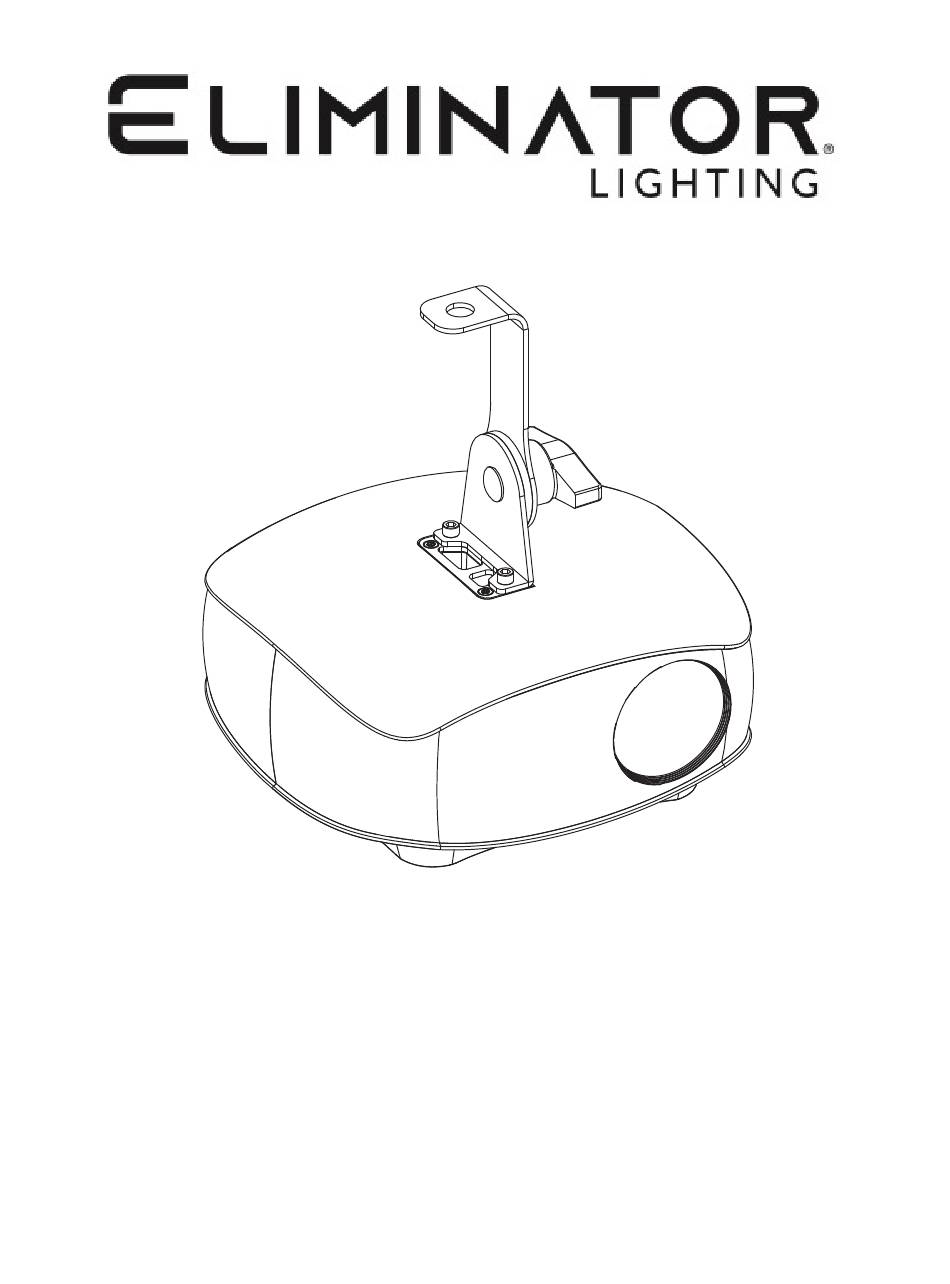

- Page 1 COSMIC BURST User Manual...
- Page 2 ©2022 ADJ Products, LLC all rights reserved. Information, specifications, diagrams, images, and instructions herein are subject to change without notice. Eliminator Lighting logo and identifying prod- uct names and numbers herein are trademarks of ADJ Products, LLC. Copyright protection claimed includes all forms and matters of copyrightable materials and information now allowed by statutory or judicial law or hereinafter granted.
-
Page 3: Table Of Contents
T A B L E O F C O N T E N T S Introduction Limited Warranty (USA Only) | Warranty Registration Features Safety Precautions Overview Installation Remote Device Management (RDM) Control Panel System Menu DMX Set Up DMX Traits Primary-Secondary Set Up Maintenance Guidelines Dimensional Drawings... -
Page 4: Introduction

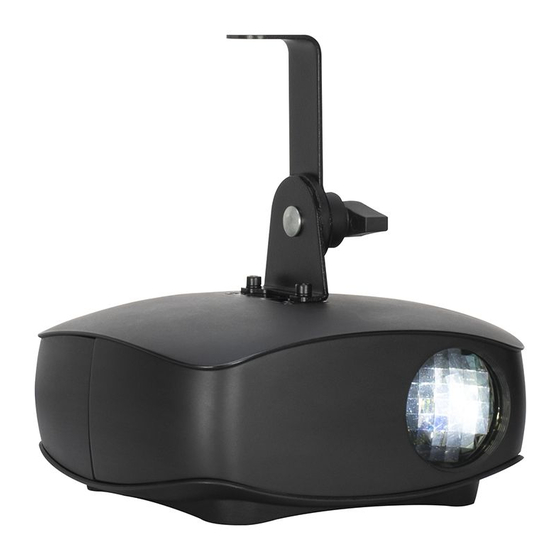

Do not return this unit to your dealer without first contacting customer support. Introduction: The Cosmic Burst is a laser burst beam effect. It features a single 10W laser module, OLED display, and 5-channel DMX control. -
Page 5: Limited Warranty (Usa Only) | Warranty Registration
L I M I T E D W A R R A N T Y ( U S A O N L Y ) 1 Year Limited Warranty: The Eliminator Lighting warranty is valid for 1 year from the date of purchase. Our 1 year limited warranty covers manufacturing defects only. -
Page 6: Features
F E A T U R E S • 1 x 10W laser module • Smooth dimming 0-100% • Adjustable strobe effect • OLED display • 6/7-channel DMX control • DMX-512 and RDM protocols • 3-pin XLR Data In/Out ports •... -
Page 7: Safety Precautions
S A F E T Y P R E C A U T I O N S LASER ACCESSION NUMBER: 2210851-000 After completing setup, and before public use, test the laser to ensure proper function. Do not use if any defects are detected. Do not use if the laser emits only a few laser beams rather than dozens/hundreds, as this could indicate damage to the diffraction grating optic, and could allow emission of laser intensity levels that exceed Class 3R. - Page 8 S A F E T Y P R E C A U T I O N S PROTECTION CLASS 1 - FIXTURE MUST BE PROPERLY GROUNDED. THERE ARE NO USER SERVICEABLE PARTS INSIDE THIS UNIT. DO NOT ATTEMPT ANY REPAIRS YOURSELF, AS DOING SO WILL VOID YOUR MANUFACTURER’S WARRANTY.
-
Page 9: Overview
O V E R V I E W Display Screen Button Hole Power Menu Down Enter Button Button Button Mounting Bracket Bracket Adjustment Knob Front Lens... -
Page 10: Installation
I N S T A L L A T I O N DO NOT INSTALL THE FIXTURE IF YOU ARE NOT QUALIFIED TO DO SO! Fixture MUST be installed following all local, national, and country commercial electrical and construc- tion codes and regulations. When installing the unit, the trussing or area of installation must be able to hold at least 10 times the weight of the unit and any attached accessories without any deformation. - Page 11 I N S T A L L A T I O N CLAMP MOUNTING This fixture features an adjustable mounting bracket with a built-in mounting clamp attachment point. Additionally, the unit also features a safety cable loop located at the base of the mounting bracket (see the illustration below).
-
Page 12: Remote Device Management (Rdm)
R E M O T E D E V I C E M A N A G E M E N T ( R D M ) NOTE: In order for RDM to work properly, RDM enabled equipment must be used throughout the entire system, including DMX data splitters and wireless systems. -
Page 13: Control Panel
C O N T R O L P A N E L The Cosmic Burst features a display screen with a 4-button control pad, which can be used to easily adjust any device settings. Pressing the MENU button will cycle through the various Main Menu options. When the desired Main Menu option is displayed on the screen, press the ENTER button to select, then use the UP and DOWN buttons to scroll through sub-menu options. -
Page 14: System Menu
S Y S T E M M E N U 001 - 512 DMX Address Set DMX address Mode1 (6) 6-ch DMX channel mode DMX Ch. Mode Mode2 (7) 7-ch DMX channel mode Holds last received settings Hold when signal is lost or inter- rupted All DMX channels go to 0 when Blackout... - Page 15 S Y S T E M M E N U Current Current LED temperature Max Temp Max recorded LED tempera- xxx F / xxx C Temperature ture Yes / No Temp Rst Reset LED temperature Passcode = 050 Fan State Reflector INFORMATION Strobe...
-
Page 16: Dmx Set Up
D M X S E T U P DMX-512: DMX is short for Digital Multiplex. This is a universal protocol used as a form of commu- nication between intelligent fixtures and controllers. A DMX controller sends DMX data instructions from the controller to the fixture. DMX data is sent as serial data that travels from fixture to fixture via the DATA “IN”... - Page 17 D M X S E T U P Special Note: Line Termination. When longer runs of cable are used, you may need to use a termi- nator on the last unit to avoid erratic behavior. A terminator is a 110-120 ohm 1/4 watt resistor which is connected between pins 2 and 3 of a male XLR connector (DATA + and DATA -).
- Page 18 D M X S E T U P DMX ADDRESSING. All fixtures should be given a DMX starting address when using a DMX controller, so the correct fix- ture responds to the correct control signal. This digital starting address is the channel number from which the fixture starts to “listen”...
-
Page 19: Dmx Traits
D M X T R A I T S CHANNEL FUNCTION VALUES Reflector Rotation 000 - 007 Standby 008 - 125 Clockwise Rotation, fast to slow 126 - 129 Stop 130 - 247 Counter-Clockwise Rotation, slow to fast 248 - 255 Stop Shutter, Strobe 000 - 031 Off 032 - 063 On... -
Page 20: Primary-Secondary Set Up
P R I M A R Y - S E C O N D A R Y S E T U P This function allows you to link units together to run in a Primary-Secondary set-up, in which one unit will act as the controlling unit and the others will react to the controlling unit’s built-in programs. -
Page 21: Maintenance Guidelines
M A I N T E N A N C E G U I D E L I N E S DISCONNECT POWER BEFORE PERFORMING ANY MAINTENANCE! CLEANING Frequent cleaning is recommended to ensure proper function, optimized light output, and an extend- ed life. -
Page 22: Dimensional Drawings
D I M E N S I O N A L D R A W I N G S 2.5in (63mm) 1.2in (30mm) 8.7in (220mm) 7.7in (196mm) Drawings not shown to scale. -
Page 23: Specifications
S P E C I F I C A T I O N S Model: Cosmic Burst Light Source: 1 x 10W laser module Color Temperature: 6000K - 8000K Beam Angle: 87° Lamp Life: 10,000 hours Display: OLED DMX Control Mode:...
