Summary of Contents for Eliminator Lighting LED CLOUD

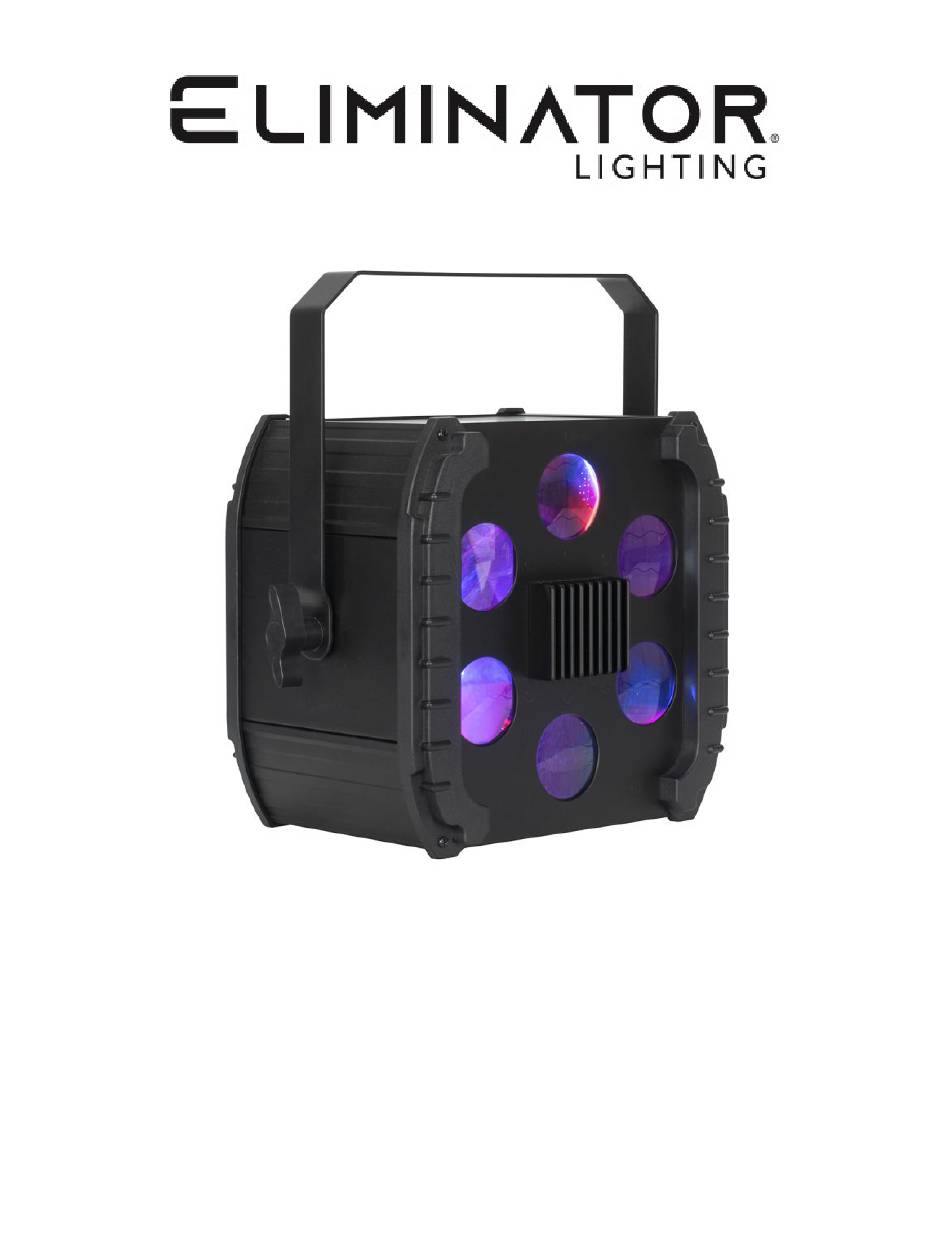

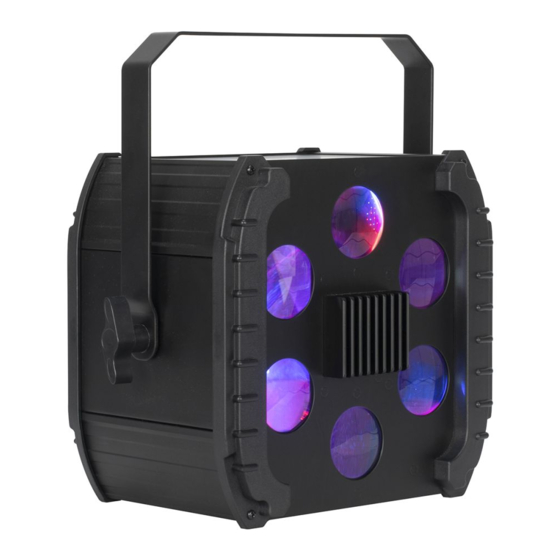

- Page 1 LED Cloud LED Cloud User Manual SKU#: LED CLOUD UPC#: 817175010198...
- Page 2 Eliminator Lighting and all affiliated companies hereby disclaim any and all liabilities for property, equipment, building, and electrical damages, injuries to any persons, and direct or indirect economic...
-
Page 3: General Information
You may obtain an R.A. number by contacting customer support. Eliminator Lighting warranty is valid from the date of purchase. Our 1 year limited warranty cov- ers manufacturing defects only. Serial number and place of purchase with dated valid receipt must be submitted at time of service. -
Page 4: L I M I T E D W A R R A N T Y ( U S A O N Ly )
This warranty is the only written warranty applicable to Eliminator Lighting, an ADJ Products, LLC brand, and su- persedes all prior warranties and written descriptions of warranty terms and conditions heretofore published. -
Page 5: Safety Guidelines
S A F E T Y G U I D E L I N E S THERE ARE NO USER SERVICEABLE PARTS INSIDE THESE DEVICES. DO NOT ATTEMPT ANY REPAIRS YOURSELF; DOING SO WILL VOID YOUR MANUFAC- TURER’S WARRANTY. DAMAGES RESULTING FROM MODIFICATIONS TO THESE DEVICES AND/OR THE DISREGARD OF SAFETY INSTRUCTIONS AND GUIDE- LINES IN THIS MANUAL VOID THE MANUFACTURER’S WARRANTY AND ARE NOT SUBJECT TO ANY WARRANTY CLAIMS AND/OR REPAIRS. -
Page 6: Maintenance
Regular inspections are recommended to ensure proper function and extended life. There are no user serviceable parts inside these devices; please refer all other service issues to Eliminator Light- ing. Should you need any spare parts, please order genuine parts from Eliminator Lighting. FUSE REPLACEMENT Locate and remove the unit’s power cord. - Page 7 I N S T A L L A T I O N I N S T R U C T I O N S FLAMMABLE MATERIAL WARNING Keep devices at least 5.0 feet (1.5m) away from flammable materials and/or pyrotech- nics.
-
Page 8: System Menu
DMX Mode: Operating through a DMX controller gives the user the freedom to create their own pro- grams tailored to their own individual needs. The LED Cloud has 4 DMX channels. See the chart in the DMX Traits section of this manual for the DMX traits and values. -
Page 9: Dmx Traits
D M X T R A I T S Eliminator LED Cloud - DMX Traits CHANNEL DMX VALUE DESCRIPTION Color Macros 000 - 007 Blackout 008 - 015 016 - 023 Green 024 - 031 Blue 032 - 039 White... - Page 10 D M X T R A I T S Eliminator LED Cloud - DMX Traits CHANNEL DMX VALUE DESCRIPTION Color Macros (continued) 232 - 239 Red + Green + White + Amber 240 - 247 Red + Green + Blue + White + Amber...
-
Page 11: Specifications
S P E C I F I C A T I O N S • Supply Voltage: 100V ~ 240V, 60Hz/50Hz • LEDs: 5 x 3W LEDs • Power Consumption: 27.5 W • Weight: 4.4 lbs / 2 kgs. • Size: 9.8 “...
