7 Accessories

7.1 Cordsets

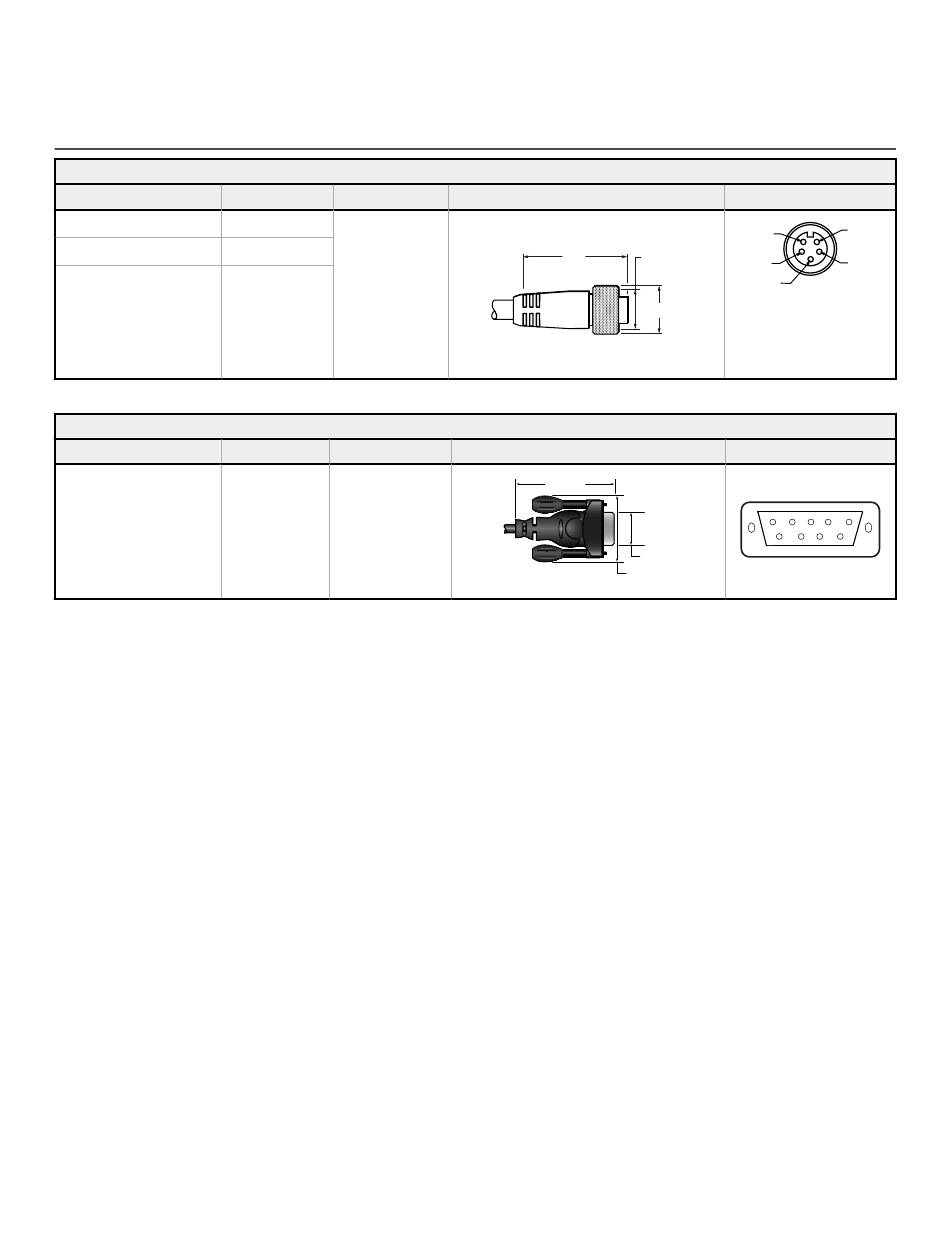

5-Pin Mini-Style Cordsets with Shield—Single Ended
Model
QDC-515C
QDC-525C
QDC-550C
Communication Cable
Model
MASC
34
®
Length Style
4.57 m (15 ft)
7.62 m (25 ft)
Straight
15.2 m (50 ft)
Length Style
DB9, straight
2 m (6.5 ft)
RS-232 cable
www.bannerengineering.com - Tel: + 1 888 373 6767
Dimensions
58
7/8-16UNF
ø 26
Dimensions
55.5 mm
16.2 mm
31.5 mm
Pinout (Female)
1
5
2
4
3
1 = Black
2 = Blue
3 = Drain
4 = Brown
5 = White
Pinout (Female)
5 4 3 2 1
9 8 7 6
