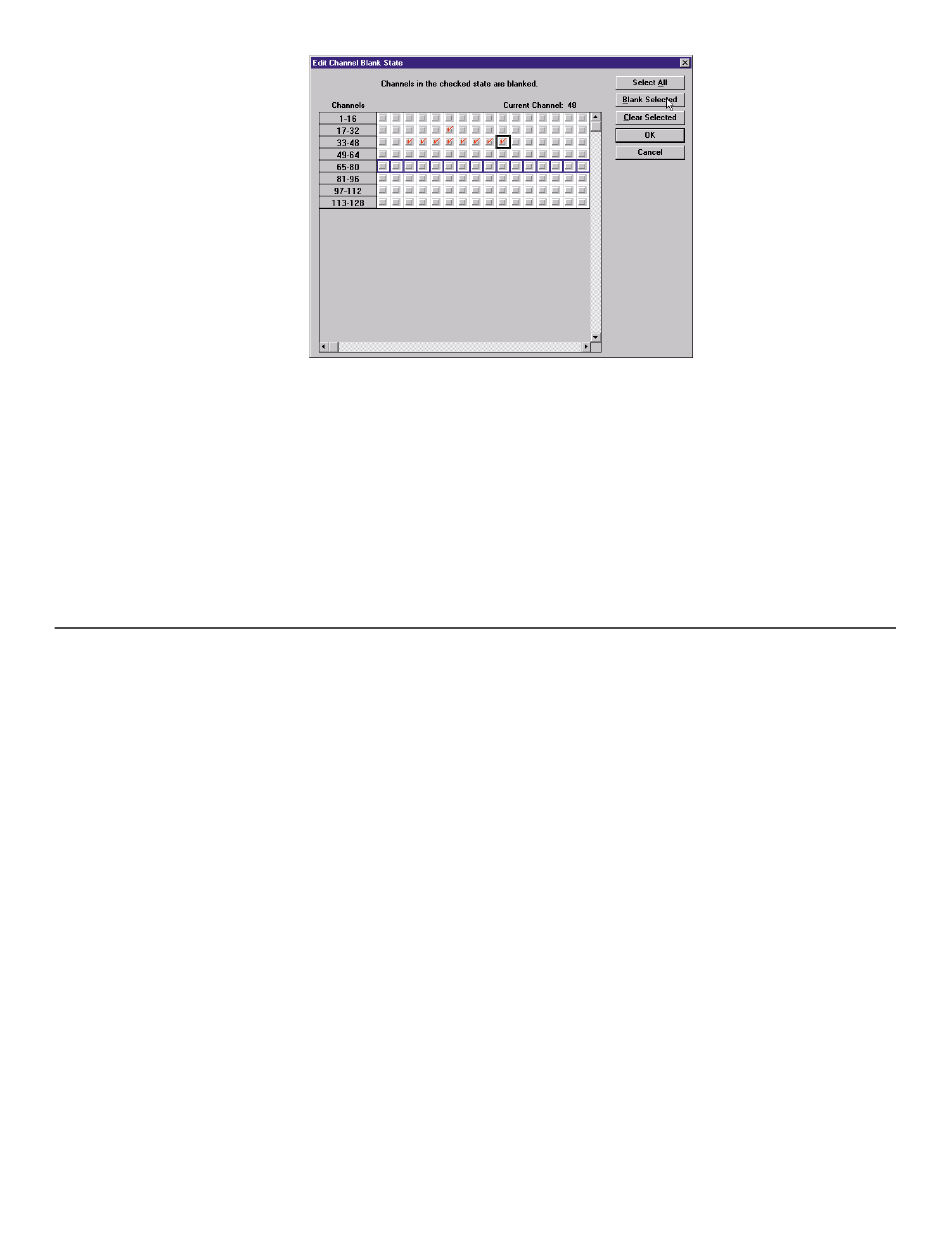

Figure 18. Edit channel blank state screen, showing beam #22 and beams #35-42 blanked; beams #65-80 are highlighted, ready to be selected
2. To set the blanking fields, click each grid box representing a beam you wish to blank.
3. Clicking again on a blanked beam channel removes the blanking specification.
4. To select or clear the blanking specification for several rows of channels, place the cursor directly to the left of the
row to be selected and click the mouse. The rows highlight.
5. Select Blank Selected (to accept the blanking status) or Clear Selected (to reject the blanking status) option.
6. To leave Alignment mode, click OK.
Both the control module and the receiver indicate a clear condition (green Align indicator ON) and the Diagnostics
Indicator shows A.. When the system is ready for operation and configured for beams to be blanked, the period on
the Diagnostics Indicator remains lit, showing —..

4.3 Programming Control Module Response

Use the Parameter Setup File (PSF) Configuration routine to configure the control module for a specific application. After
performing the Ping routine to select a control module, access the PSF Configuration screen by selecting Edit PSF (F4) from
the MINI-ARRAY menu. The Edit PSF process may also be performed with no control module selected, to configure and
save a PSF for multiple control modules. In such a case, some fields on the PSF Configuration screen will not be
accessible.
The process of configuring the control module involves selecting among options for each of the parameters listed in this
section, including serial communication, control mode, scanning method, scan analysis mode, serial transmission, and
analog/discrete outputs. The resulting combination of options causes the control module to react as required for the
application, to changes in the light screen.
The configuration process produces a Parameter Setup File (PSF). PSF files may be saved and retrieved as computer files
via File Save PSF and File Retrieve PSF (see
sent to the control module via the Send PSF command. The PSF currently loaded into the control module may be displayed
by using the Upload PSF command.
for blanking
Saving and Recalling PSF Files
