3.3.3 Outputs

Control Module
MAHCVN-1
Figure 7
(p. 9)
MAHCVP-1
Figure 8
(p. 9)
MAHCIN-1
Figure 9 (p. 9)
MAHCIP-1
Figure 10
(p. 10)
Serial Communication
RS-232: All A-GAGE High-Resolution MINI-ARRAY Systems may communicate with a host computer or controller via
RS-232 or RS-485 serial protocol. See Section 5.3.1 for selectable communications parameters. Prepare an RS-232 cable
using a male DB-9 connector with connections as shown.
Note: DO NOT use a "null modem" RS-232 cable
RS-485: RS-485 serial port is located at terminals #18 (TX) and #19 (TX).

3.4 Install the Software

The Parameter Setup Software CD includes an installation program that quickly and easily loads the MINI-ARRAY
configuration program into the computer. The MINI-ARRAY configuration program requires approximately 50 MB of hard
disk space. Install as follows:
1. Use the Parameter Setup Software CD included with the controller, or download from
as required.
2
Discrete Output #2 is labeled Alarm on the control module.
Analog Outputs (Terminals #10 and 16)
0 V to 10 V Sourcing
15 mA maximum
0 V to 10 V Sourcing
15 mA maximum
4 mA to 20 mA
Sinking
16 V dc to 30 V dc
4 mA to 20 mA
Sinking
16 V dc to 30 V dc
RS-232
5 3 2
DB-9 Pin #
2
3
5

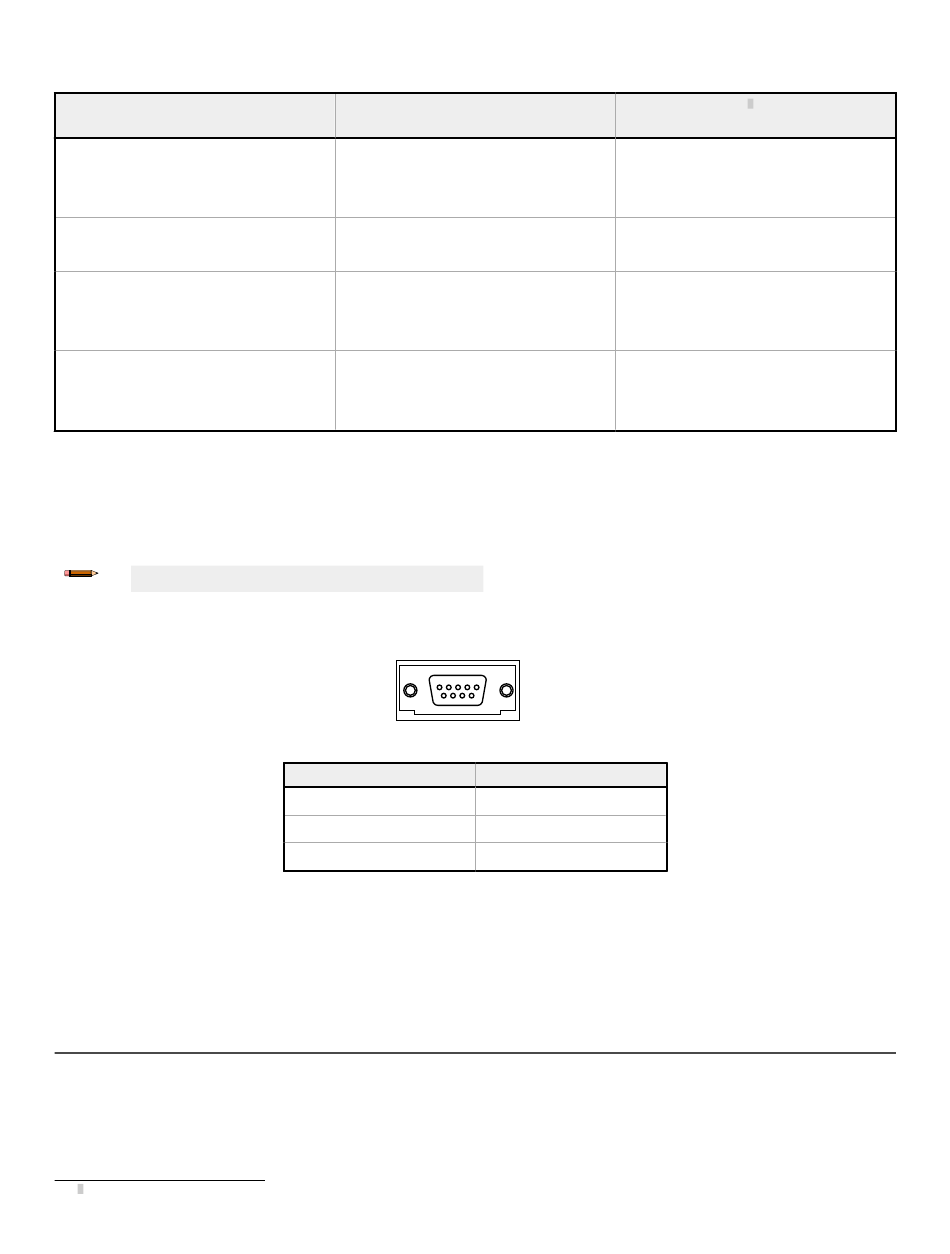

Figure 12. DB-9 connections between the control module and the PC
www.bannerengineering.com - Tel: + 1 888 373 6767
®
A-GAGE High-Resolution MINI-ARRAY
Discrete Outputs
NPN open-collector
30 V dc maximum
150 mA maximum
PNP open-collector
30 V dc maximum
NPN open-collector
30 V dc maximum
150 mA maximum
PNP open-collector
30 V dc maximum
150 mA maximum
2 - TX
3 - RX
5 - COM
Function
Transmit (TX)
Receive (RX)
Ground (GND)
www.bannerengineering.com
®
2
(Terminals #9 and
20)
11
