6.5 Control Module Dimensions

All measurements are listed in millimeters [inches], unless noted otherwise.
5.0 mm
(0.20")
69.0 mm
(2.72 ")
5.5 mm
(0.22")
106.0 mm
(4.17")
96.0 mm
(3.78")
DIN mounting slot

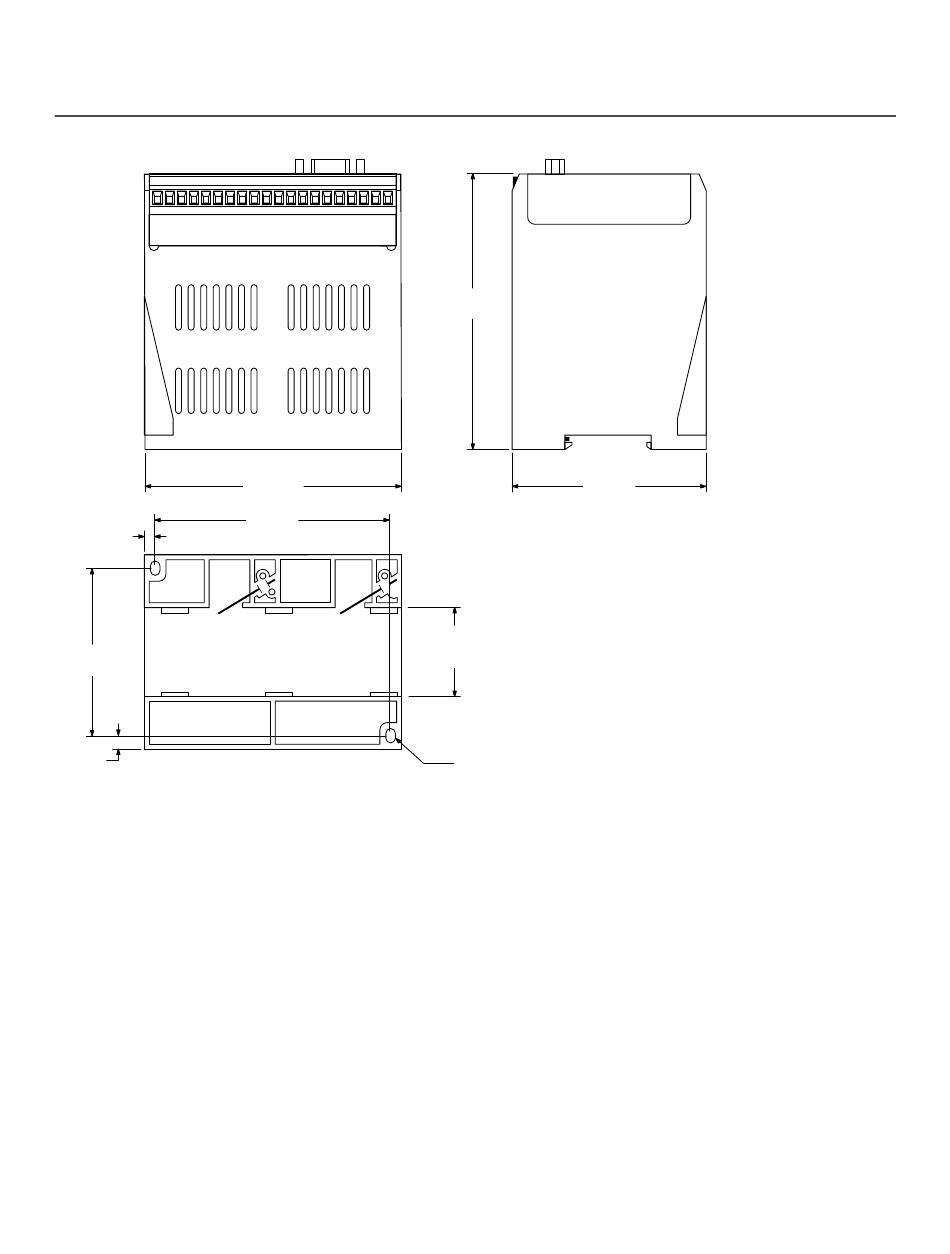

Figure 29. Control Module Dimensions
www.bannerengineering.com - Tel: + 1 888 373 6767
115.0 mm
(4.53")
81.0 mm
(3.19")
35.0 mm
(1.38")
Slot for M3.5 screws (2)
®
