A-GAGE
High-Resolution MINI-ARRAY
POWER
1
F1
+
16-30V dc
1 A max

3.3.1 Emitter and Receiver Wiring

Connect emitters and receivers together in parallel to terminals #4 through #8 of the control module (identical for all control
module models). See the figures in

3.3.2 Inputs

System Power: Connect a source of 16 V dc to 30 V dc, rated at 1 amp or greater, to control module terminals #1 (+) and #2
(-). Connect a good earth ground to terminal #3 to provide electrical and RF noise immunity to the System.
Note: Remove power before making other connections to the controller.
Gate Signal: A source of 10 V dc to 30 V dc switched to terminals #12(+) and #13(-) provides a gating input (if required). The
gating voltage typically is switched by the open-collector output transistor of a dc sensing device. The gate signal controls
scanning when one of four Gate options is selected in the Control Mode Selection menu of the PSF configuration routine
(see
Control Mode Selection
Align: A source of 10 V dc to 30 V dc switched to terminals #14(+) and #15(-) provides a remote means of running the
automatic alignment and blanking routines. The switch sequence is identical to the procedure described in
Alignment Routine
(p. 14) for the Alignment switch on the front of the control module.
10
®
2
3
4
5
6
7
8
DISCRETE
EMITTER and
OUTPUT#1
RECEIVER CABLES
150 mA
max

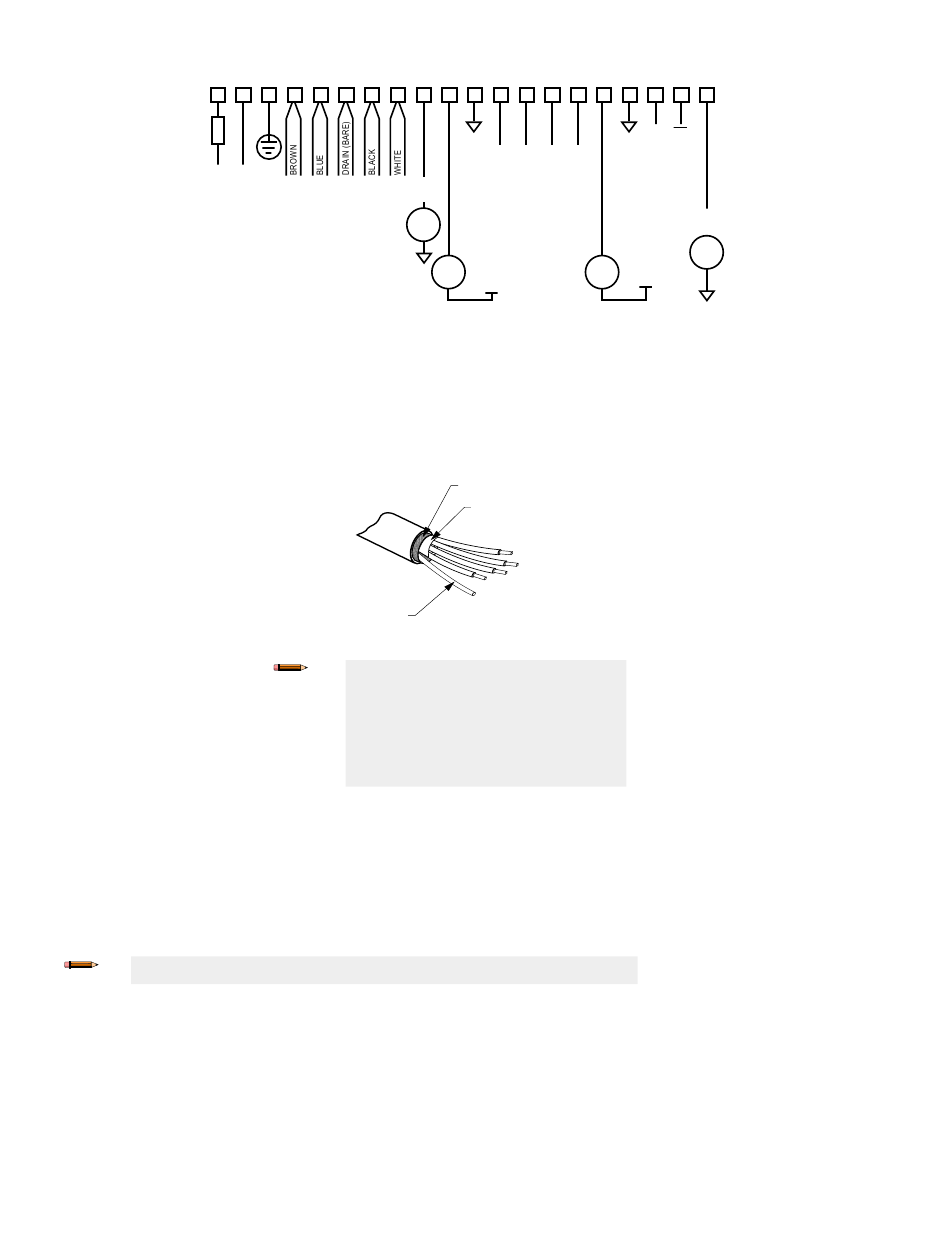

Figure 10. MAHCIP-1 Wiring
Wiring
(p. 9) for wire color information.
Uninsulated
drain wire
Note: The "drain wire" is the
uninsulated stranded wire which runs
between the braided shield and the
foil shield. The foil shield and the
braided shield should be removed at
the point where the wires exit the
cable.
Figure 11. Emitter and Receiver Cable Preparation
(p. 19)) .
www.bannerengineering.com - Tel: + 1 888 373 6767
9
10
11
12
13
14
15
16
+
+
10-30V dc
10-30V dc
GATE
ALIGN
SIGNAL
4-20 mA
4-20 mA
ANALOG
ANALOG
OUTPUT #2
OUTPUT #1
Load
Load
+16 – 30V dc
Trim braided shield flush
with cable
Trim foil shield flush
with cable
17
18
19
20
TX
TX
RS-485
DISCRETE
OUTPUT#2 (ALARM)
150 mA
max
+16 – 30V dc
Push-Button
