A-GAGE High-Resolution MINI-ARRAY
2. Select Run. The table displays the status for the selected measurement mode(s), including the Present value and the
High and Low values for the Run period.
3. Select Stop to freeze the data.
4. Select Step to initiate a single scan of the array to simulate a snapshot of what is viewed by the array at the instant
that Step is selected.
Use of the Execute command is beneficial for testing the response of a gated system. Run simulates the Continuous
Scanning mode, and Step simulates a gate input command.

4.5.3 Quit and Exit

To close the PSF Configuration screen, select either Quit or Exit. Selecting Quit erases the Edit PSF Screen and sends the
user back to the Main Window; the present PSF Screen values are not retained. The Exit command is similar to the Quit
command, except the user is prompted to save the configuration values to a parameter setup file (PSF).
26
®

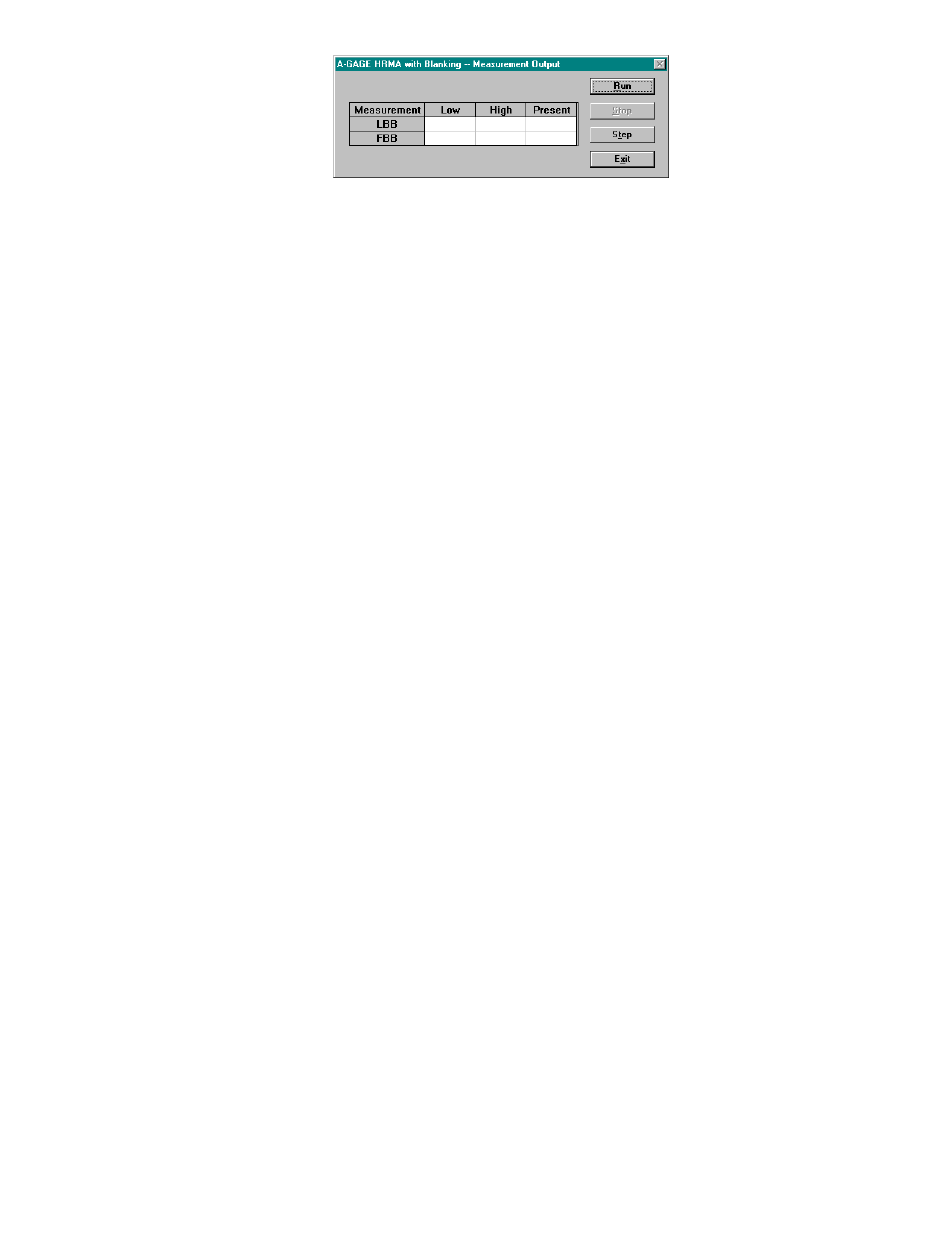

Figure 24. Measurement Output Screen
