5 System Diagnostics

Perform System diagnostics by using the status and diagnostics indicators on the control module and sensors, or by using
the diagnostics software routine, or by a combination of the two.

5.1 Diagnostic Indicators

Bright, easy-to-see LED indicators on both sensors and on the front panel of the control module provide an ongoing display
of the system's operating status.
Diagnostics Indicator
Alignment Button
Red Discrete Output #1 LED
Red Alarm (Discrete Output #2) LED
Red Gate LED
Green Align LED

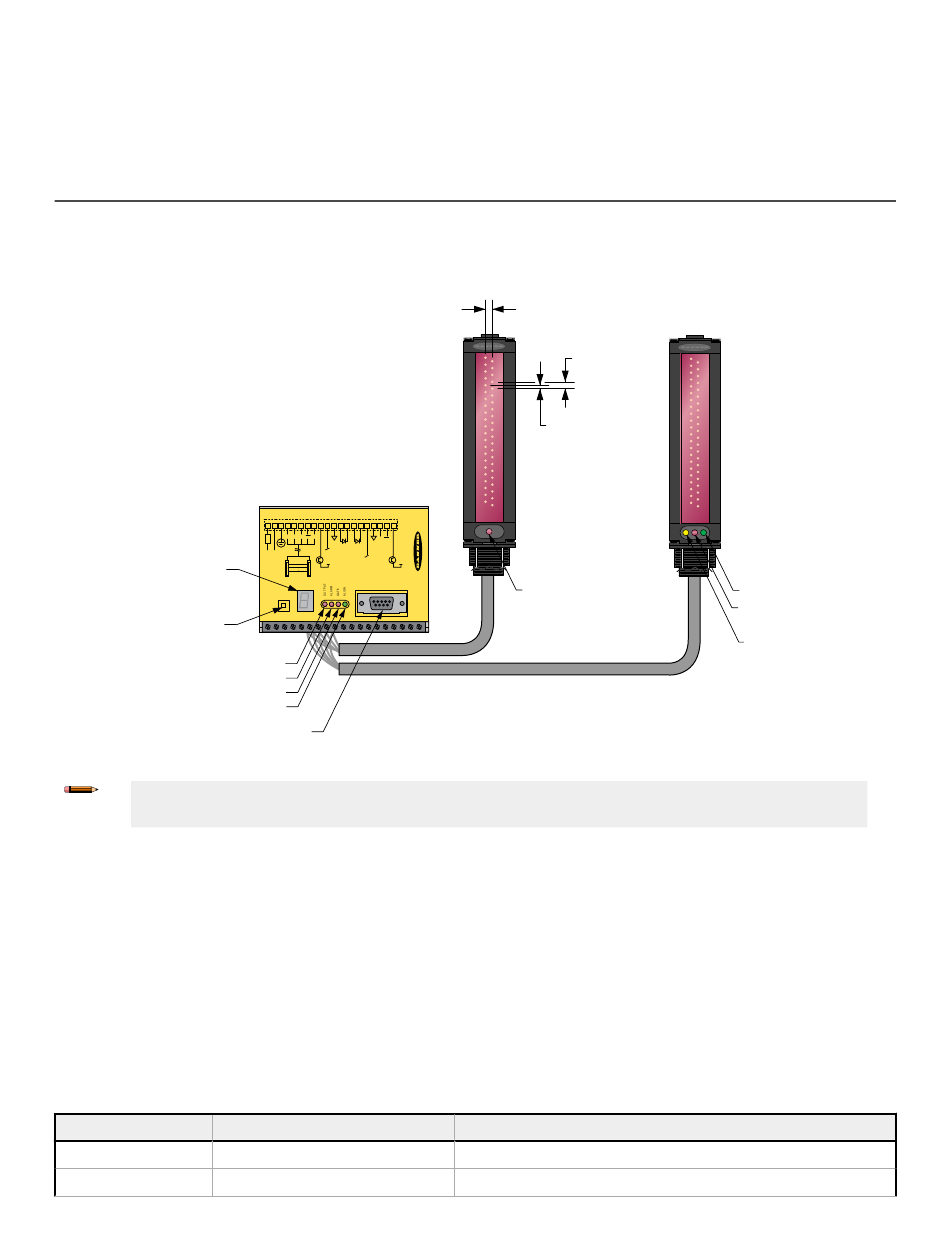

Figure 25. A-GAGE High-Resolution MINI-ARRAY System Diagnostics and Status Indicators
Note: Status indicators appear to freeze if the controller has been configured for Gate or Host mode, and
no signal is present to cause a scan update.
Control Module
OUTPUT (red): Displays the status of Discrete Output #1.
ALARM (red): Displays the status of Discrete Output #2. This output may be assigned to an analysis mode, or it may be
used as a system diagnostics alarm or as a trigger alarm to gate another A-GAGE High-Resolution MINI-ARRAY System.
GATE (red): Displays the status of the gate input.
ALIGN (green): Indicates proper emitter/receiver alignment and a clear, unblocked light screen. This indicator is ON when
either the green or both the green and yellow LEDs of the receiver are ON.
Diagnostics Indicator: This bright, segmented LED display on the control module front panel indicates one of ten system
status conditions, plus the presence or absence of blanking. Blanking ON causes a period to appear in the Diagnostics
Indicator window, in addition to the System's other status condition. See the table for the key to these error types and
status conditions; this chart is also located on the side of the control module.
Table 3: Key to System Diagnostics Indicator codes
Error Number Error Type
– System is OK
A / b Align / blank
DIN-Rail-Mountable Control Module
MAHCVP-1
HIGH RESOLUTION MINI-ARRAY CONTROLLER
POWER
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20
+12V COM DRN T/R T/R
F1
TX TX
+ – + –
BR BU BK WH
10-30VDC 10-30VDC
+ – 0-10VOLTS GATE ALIGN
25mA (MAX)
16-30V dc
V OUT 1
0-10VOLTS
1A MAX
+V 25mA (MAX) +V
V OUT 2
D OUT 1 ALARM
150mA MAX 150mA MAX
EMTR RCVR
DIAGNOSTICS
RS-232
INDICATOR
2 - TX
ALIGNMENT
3 - RX
SWITCH
5 - COM
POWER
RS-232 Port
