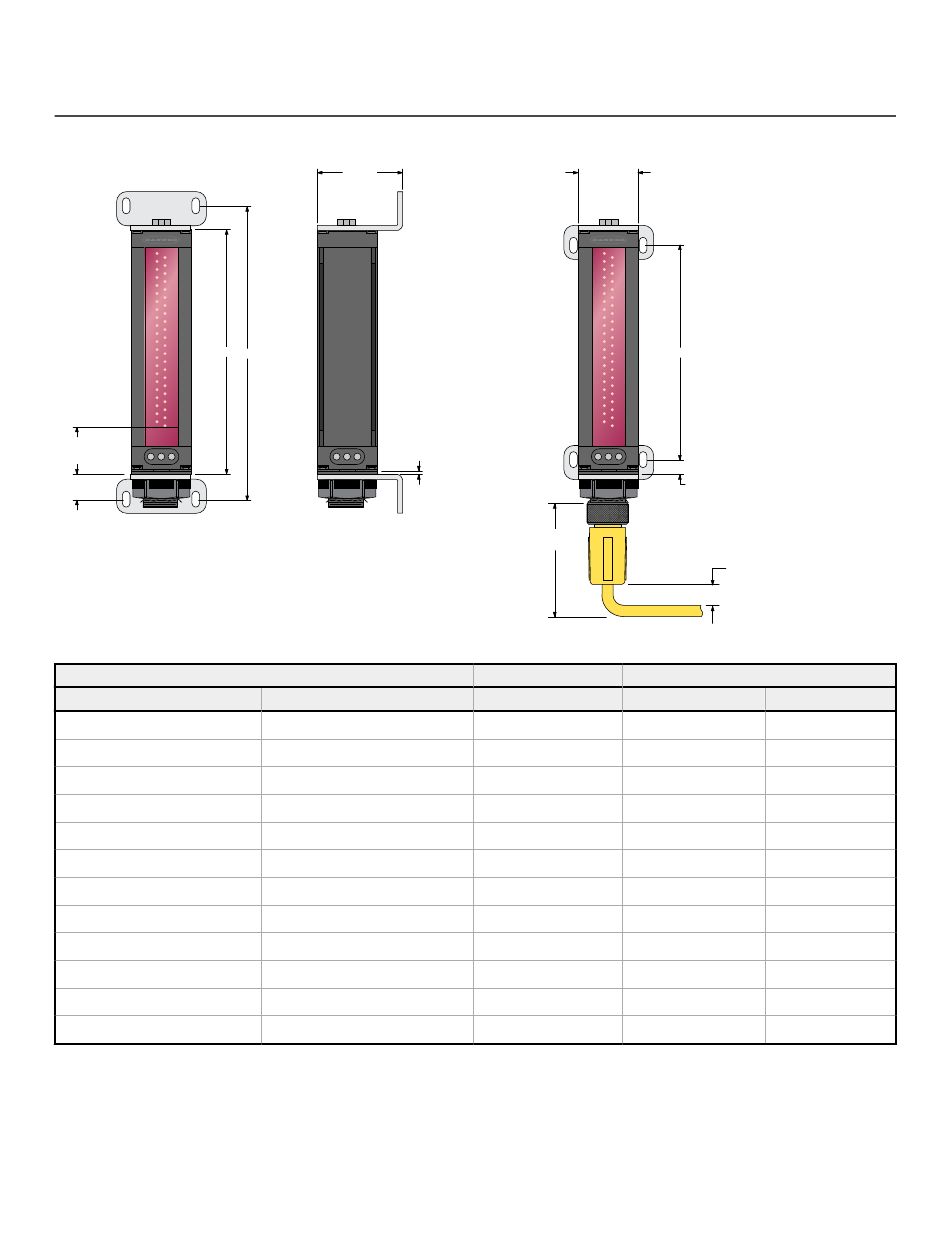

6.2 Emitter and Receiver Dimensions

All measurements are listed in millimeters [inches], unless noted otherwise.
L1
47.2 mm
(1.86")
18.3 mm
(0.72")
Model
Emitter
MAHE6A Emitter
MAHE13A Emitter
MAHE19A Emitter
MAHE26A Emitter
MAHE32A Emitter
MAHE38A Emitter
MAHE45A Emitter
MAHE51A Emitter
MAHE58A Emitter
MAHE64A Emitter
MAHE70A Emitter
MAHE77A Emitter
30
®
53.8 mm
(2.12")
L2
2.5 mm
(0.10")
Figure 27. Emitter and Receiver Dimensions
Receiver
MAHR6A Receiver
MAHR13A Receiver
MAHR19A Receiver
MAHR26A Receiver
MAHR32A Receiver
MAHR38A Receiver
MAHR45A Receiver
MAHR51A Receiver
MAHR58A Receiver
MAHR64A Receiver
MAHR70A Receiver
MAHR77A Receiver
www.bannerengineering.com - Tel: + 1 888 373 6767
38.1 mm
Square
(1.50")
L3
71 mm
(2.8")
Housing Length Distance Between Bracket Holes
L1
236 mm (9.3 in) 268 mm (10.5 in)
399 mm (15.7 in) 430 mm (16.9 in)
561 mm (22.1 in) 593 mm (23.3 in)
724 mm (28.5 in) 756 mm (29.7 in)
887 mm (34.9 in) 918 mm (36.2 in)
1049 mm (41.3 in) 1081 mm (42.6 in)
1215 mm (47.8 in) 1246 mm (49.1 in)
1377 mm (54.2 in) 1409 mm (55.5 in)
1540 mm (60.6 in) 1572 mm (61.9 in)
1703 mm (67.0 in) 1734 mm (68.3 in)
1865 mm (73.4 in) 1897 mm (74.7 in)
2028 mm (79.8 in) 2060 mm (81.1 in)
10.2 mm
(0.40")
R13 mm (0.5")
Minimum Bend
L2 L3
211 mm (8.3 in)
373 mm (14.7 in)
536 mm (21.1 in)
699 mm (27.5 in)
861 mm (33.9 in)
1024 mm (40.3 in)
1189 mm (46.8 in)
1352 mm (53.2 in)
1515 mm (59.6 in)
1677 mm (66.0 in)
1840 mm (72.4 in)
2003 mm (78.8 in)
