MicroNet SP6008P Quick Installation Manual

Specifications
Model No.
Standards IEEE 802.3af/at PoE
IEEE 802.3 10 BaseT
IEEE 802.3u 100 BaseTX
IEEE 802.3x Flow Control
Features Number of Ports: 8 PoE/PSE ports
Transmission Method: Store and Forward
Pin Assignment 1/2 (+), 3/6 (-)
and Polarity
PoE Power 120W
Budge
LED Indicators Per Port: Link/Act, PoE Act/Status
Per Unit: Power
PoE Power 48V/DC Per Port Output,
Output 15.4 Watts (Up to 30W)
Power Input: 100~240V/AC, 47~63 Hz
Adaptor Output: DC56V/2.15A
Dimension 188 mm x 119 mm x 39mm
Weight 0.69 Kg
Reliability MTBF
60 k.hrs. at 25 C
Environment
Operating: -10~45 C.
Humidity Operating: 10~90%
WEEE Directive & Product Disposal
At the end its serviceable life ,this product should not be treated
as household or general waste. It should be handed over to the
applicable collection point for the recycling of electrical and
electronic equipment, or returned to the supplier for disposal.
P/N 2300-0748
SP6008P
O
O
5
7
CE Mark Warning
This equipment complies with the requirements relating to
electromagnetic compatibility of the essential protection requirement
of Council Directive 89/336/EEC on the approximation of the laws of
the Member States. Company has an on-going policy of upgrading
its products and it may be possible that information in this document
is not up-to-date. Please check with your local distributors for the
latest information. No part of this document can be copied or
reproduced in any form without written consent from the company.
Communicate via
Quick Installation Guide

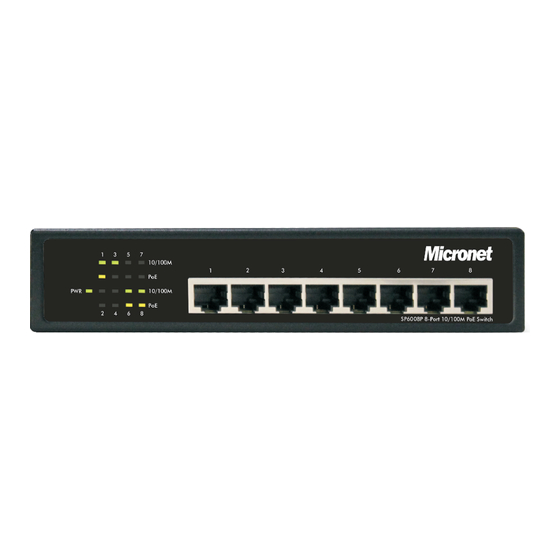

8-Port 10/100M PoE Switch
Model No.: SP6008P
