Connect To Ground

Connecting the switch to ground protects against lightning
over-voltage and over-current of the switch, which is also a
necessary measure to protect the body from electric shock.
In different environments, the switch may be grounded differently.
The following instructs you to connect the switch to ground through
the power cord. Connect the switch to ground in the best way
according to your specific operating environment.
Connect To Ground Through The Power Supply
If the switch is installed in a normal environment, it can be grounded
through the PE (Protective Earth) wire of the AC power supply, as

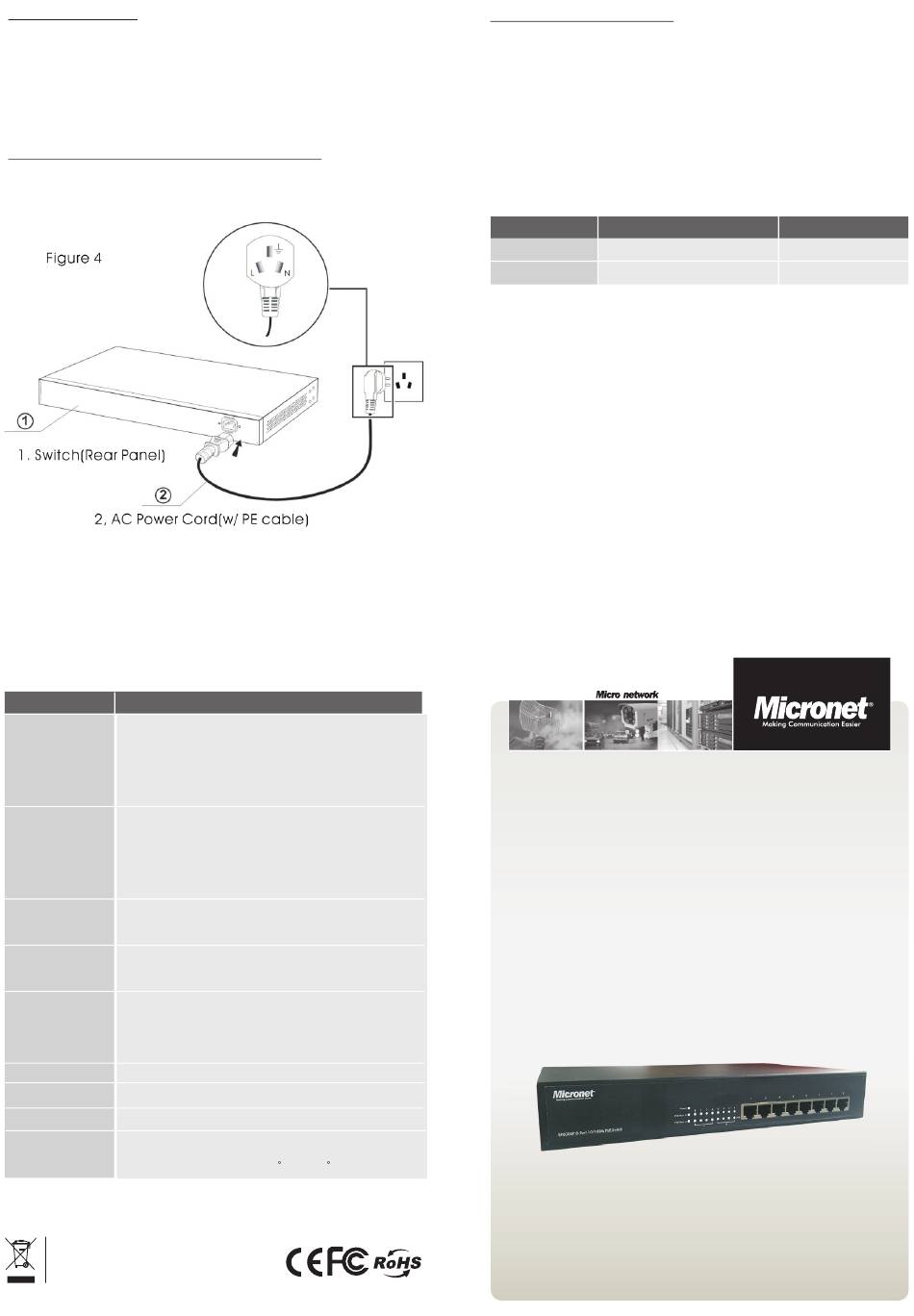

shown in the following figure 4

Specifications

Model No.
Standards
IEEE 802.3af/at PoE
IEEE 802.3 10 BaseT
IEEE 802.3u 100 BaseTX
IEEE 802.3x Flow Control
Features
Number of Ports: 8 PoE/PSE ports
MAC Address: 2k
Buffer Memory: 768 bits
Transmission Method: Store and Forward
Pin Assignment
1/2 (+), 3/6 (-)
and Polarity
Per Port: Data, PoE
Per Unit: Power, PoE Max. A/B
PoE Power
DC Per Port Output- 30W Max on Port,
Consumption
8 Ports at Full 15.4 W Output Supported
120 Watts (Max)
Power
100~240VAC
Dimension
44.5(H) x 280(W) x 179(D)mm
Weight
1.61 Kg
Environment
Operating Temperature : 0~50 C
Storage Temperature : -40 C to 70 C
WEEE Directive & Product Disposal
At the end its serviceable life ,this product should not be treated
as household or general waste. It should be handed over to the
applicable collection point for the recycling of electrical and
electronic equipment, or returned to the supplier for disposal.
P/N 2300-0749
5
SP6008P
O
7
Connecting Network Device
The setup of the switch can be performed using the following steps:
Step 1: Connect the Power Cord to SP6008P and then to a power
outlet.
Step 2: Connect a RJ-45 Ethernet cable from IEEE802.3af/802.3at
compliant devices (PD) to an available PoE port of SP6008P.
Note:
Port 1 to Port 8 are used for connecting to PD or PoE splitter for
end
devices.
For cable selection, refer to the following table:
Network Speed
Cable Type
10M
Cat. 3,4,5,5e UTP/STP
100M
Cat. 5e,6 UTP/STP

CE Mark Warning

This equipment complies with the requirements relating to
electromagnetic compatibility of the essential protection requirement
of Council Directive 89/336/EEC on the approximation of the laws of
the Member States. Company has an on-going policy of upgrading
its products and it may be possible that information in this document
is not up-to-date. Please check with your local distributors for the
latest information. No part of this document can be copied or
reproduced in any form without written consent from the company.
Communicate via
Quick Installation Guide

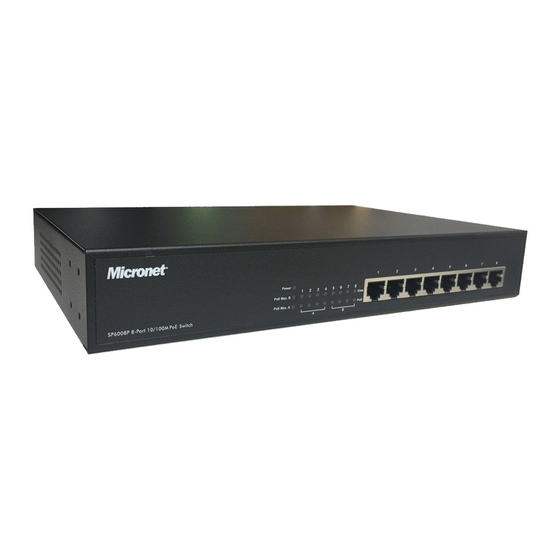

8-Port 10/100M PoE Switch
Model No.: SP6008P
Max. Length
100 meters
100 meters
6
w w w . m i c r o n e t . c o m . t w
