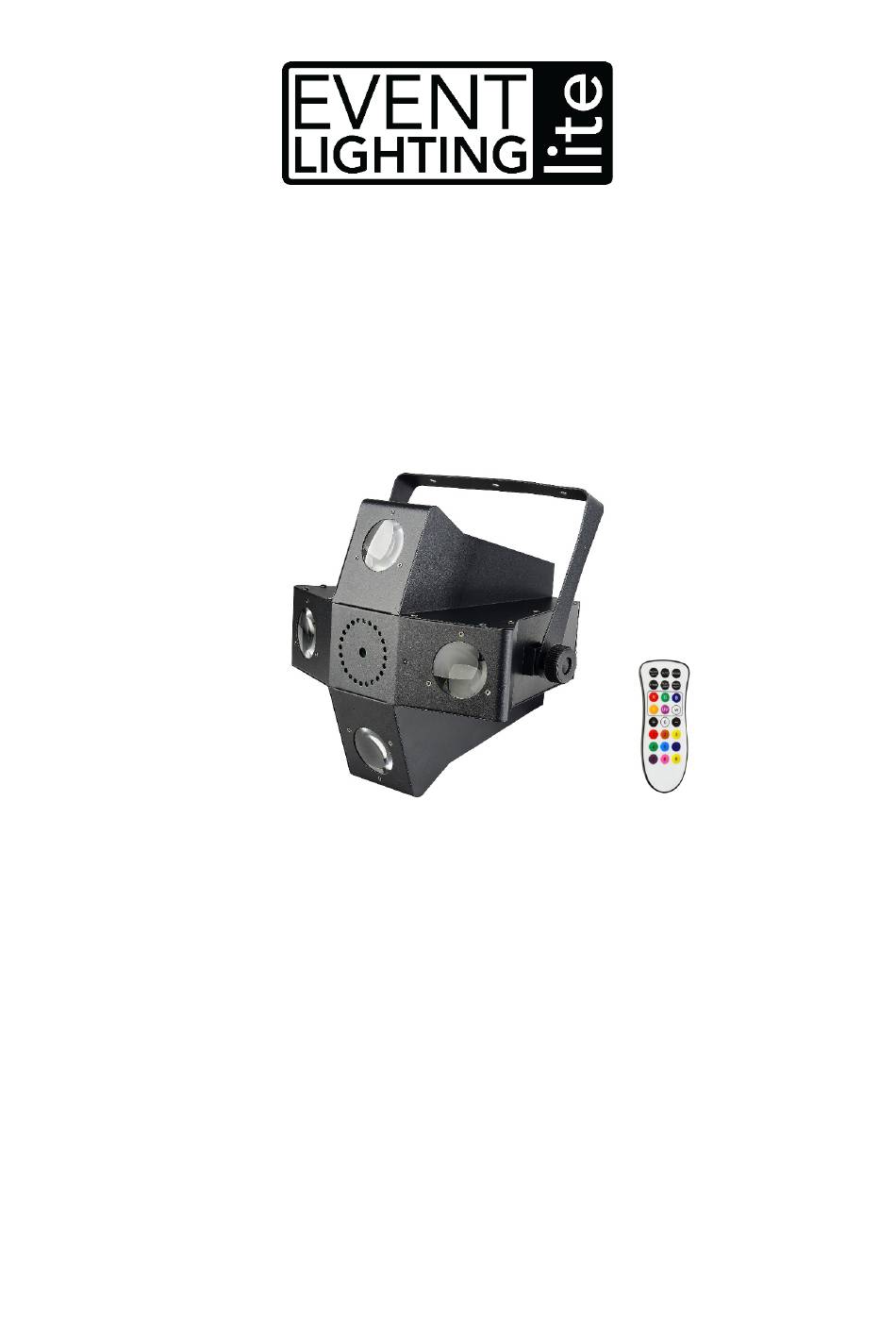

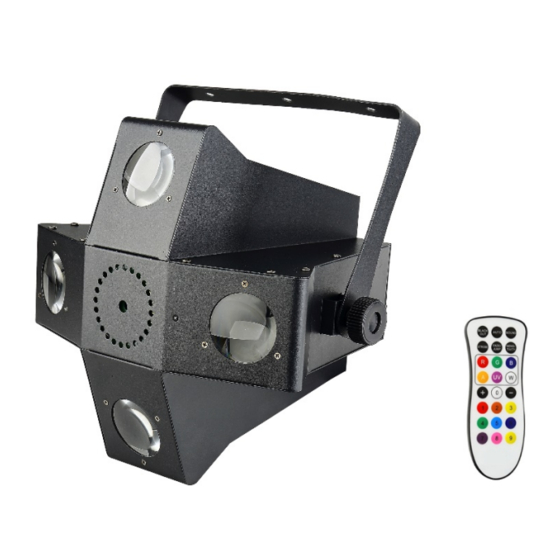

DARKSTAR2
3-in-1 Effect Light
USER MANUAL
For safety, please read this user manual carefully before initial use.
Event Lighting reserves the right to revise the manual at any time. Information and specifications
within this manual are subject to change without notice. Event Lighting assumes no liability or
responsibility for any errors or omissions. Please consult Event Lighting for any clarification or
information regarding this item.
Version: 10 (6 May 2020)
www.event-lighting.com.au
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Event Lighting DARKSTAR2
Summary of Contents for Event Lighting DARKSTAR2
- Page 1 For safety, please read this user manual carefully before initial use. Event Lighting reserves the right to revise the manual at any time. Information and specifications within this manual are subject to change without notice. Event Lighting assumes no liability or responsibility for any errors or omissions.
-
Page 2: Safety Instructions
Safety Instructions Warning • Do not open this device, there are no user-serviceable parts inside. The laser power inside the housing can start fires or burn skin and will cause eye injury. • Do not look at the light source when the device is on. •... -
Page 3: Power Input
Do not assume a moving laser light is safe. Eye injury can occur instantly. • DARKSTAR2 must be installed at least 3 metres above ground level and 3 metres from any person. See the Product Installation section for details. •... - Page 4 Laser Interlock The use of the laser is controlled by an interlock and key located on the back of the unit. In order for the laser to operate, the interlock must be inserted, and the key switched to the unlocked position.
-
Page 5: Menu Operation
Menu Operation 1. Menu – Move up a level. 2. Up – Move selection up one item. 3. Down – Move selection down one item. 4. Enter – Select / Move down a level. 5. DMX Signal LED indicator. LED will flash when DMX connected. -
Page 6: Dmx Chart
IR Remote Button Description Black Out Turn on/off Auto Auto Play Sound Sound Active mode Strobe Strobe mode Fade/ Jump No Function Sensitivity Adjust sound sensitivity R/G/B/W/A/UV/W No Function Increase parameter (strobe speed, sound sensitivity, auto speed) Decrease parameter (strobe speed, sound sensitivity, auto speed) Switch between functions in... -
Page 7: Channel Mode
2 Channel Mode Value Function Channel 5-20 Auto 0 (Combined effect) 21-35 Auto 1 (Beam effect – single colour) 36-50 Auto 2 (Beam effect – mixed colour) 51-65 Auto 3 (Laser + strobe) 66-80 Auto 4 (Beam + strobe) 81-95 Auto 5 (Beam (single colour) + laser) 96-110 Auto 6 (Beam (mixed colour) + laser) -
Page 8: 14 Channel Mode
14 Channel Mode Channel Value Description Function Beam 1 None 8-15 16-23 Green 24-31 Blue 32-39 White 40-47 Amber 48-55 Red + Green 56-63 Red + Blue 64-71 Red + White 72-79 Red + Amber 80-87 Green + Blue 88-95 Green + White 96-103 Green + Amber... -
Page 9: Technical Specifications
Control Panel: 4 digital LED display figures • Control Mode: Sound activated, Auto, Master/Slave, DMX512, IR Remote • DMX Channels: 2 / 14 • Dimensions: 345x345x345 mm (package) • Weight: 4.3kg Warranty Please refer to your local dealer or contact Event Lighting Pty Ltd. www.event-lighting.com.au...
