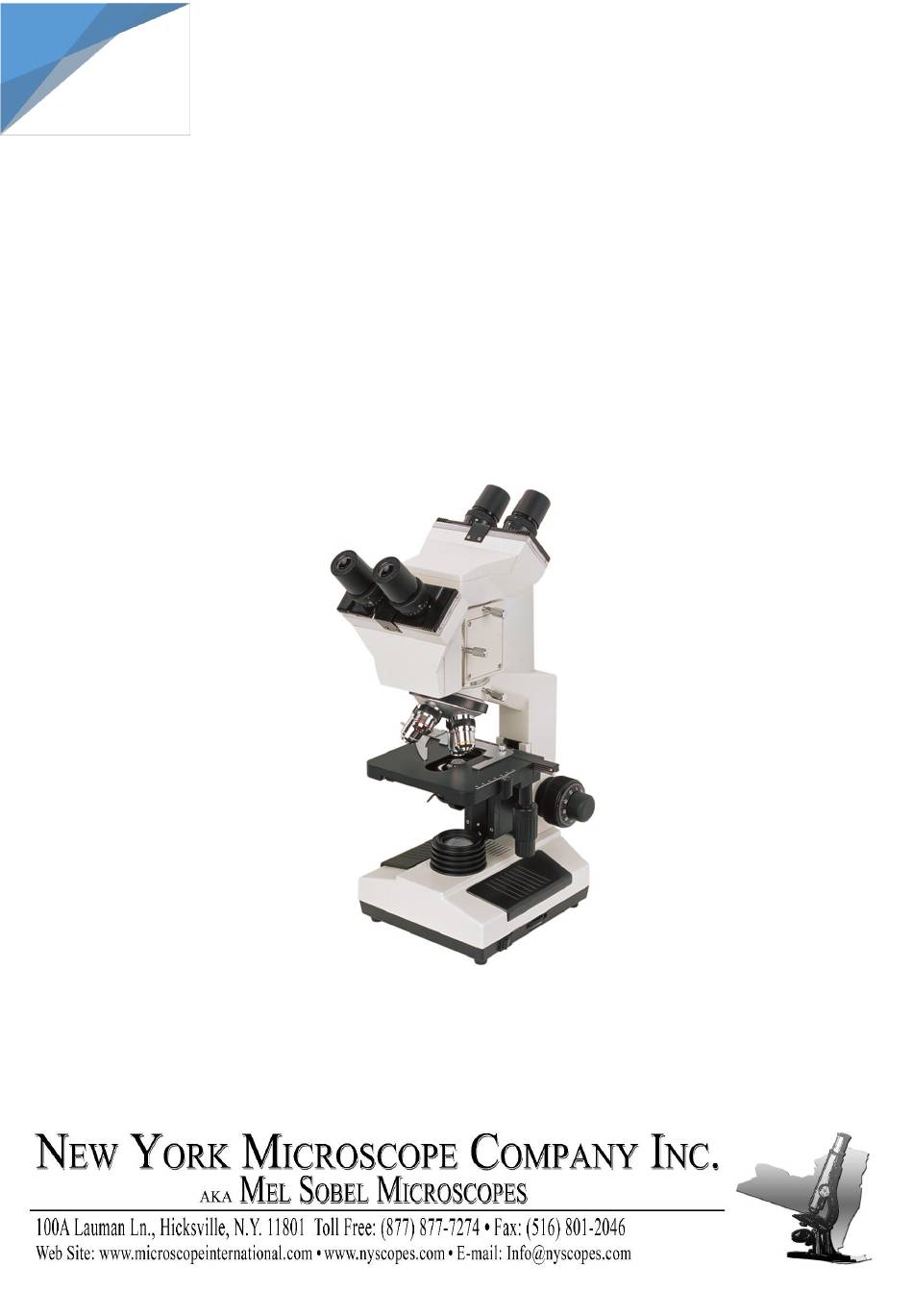

STEINDORFF

Multi-Head Biological Microscope

NYMCS-931

Instruction Manual

This manual is for biological microscope Model NYMCS-931. To ensure the safety, obtain optimum

performance and to familiarize yourself fully with the use of this microscope, it is strongly recommended

that you study this manual thoroughly before operating the microscope.

Table of Contents

Need help?

Do you have a question about the NYMCS-931 and is the answer not in the manual?

Page 1 NYMCS-931 Instruction Manual This manual is for biological microscope Model NYMCS-931. To ensure the safety, obtain optimum performance and to familiarize yourself fully with the use of this microscope, it is strongly recommended that you study this manual thoroughly before operating the microscope.
Page 2 STEINDORFF A. Applications: The biological microscope NYMCS-931 is designed for 2 persons to view simultaneously and is provided with achromatic objectives, wide field eyepieces, abbe condenser, adjustable built-in light source and also coaxial coarse and fine adjustment with focus stop. This microscope with his wide field eyepieces gives a nice and sharp image and is designed in a very modern way.
Page 3 ® STEINDORFF 2. Illumination system: In order to make observed specimen have enough brightness and make the resolving power of the objectives be used fully, this instrument adopt 6v20w built-in brightness variable lamp. It composed with condenser and iris diaphragm, turning the iris of the condenser and making the aperture of condenser suitable for the aperture of objective, the condenser is composed of two parts.
Page 4 ® STEINDORFF image. Because this instrument adopts precise and reliable nosepiece, you can always observe a clear image with different objectives. E. The complete set of the microscope: Items Contents Quantity Main Body 1set Eyepiece P10x 4 pcs Objective 4x,10x,40x,100x...
