STEINDORFF

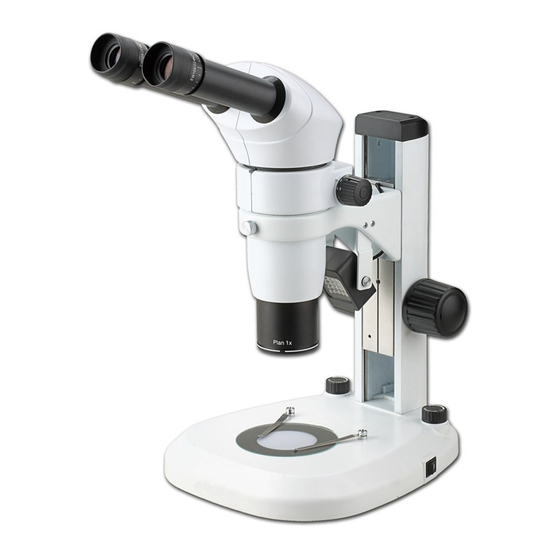

Zoom Stereo Microscope
NYMCS-360
Instruction Manual
This manual is written for stereo microscope NYMCS-360. To ensure the safety, obtain optimum performance and to
familiarize yourself fully with the use of this microscope, it is recommended strongly that you study this manual
thoroughly before using the microscope. Retain this manual in an easily accessible place near the work desk for future
reference.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for STEINDORFF NYMCS-360
Summary of Contents for STEINDORFF NYMCS-360

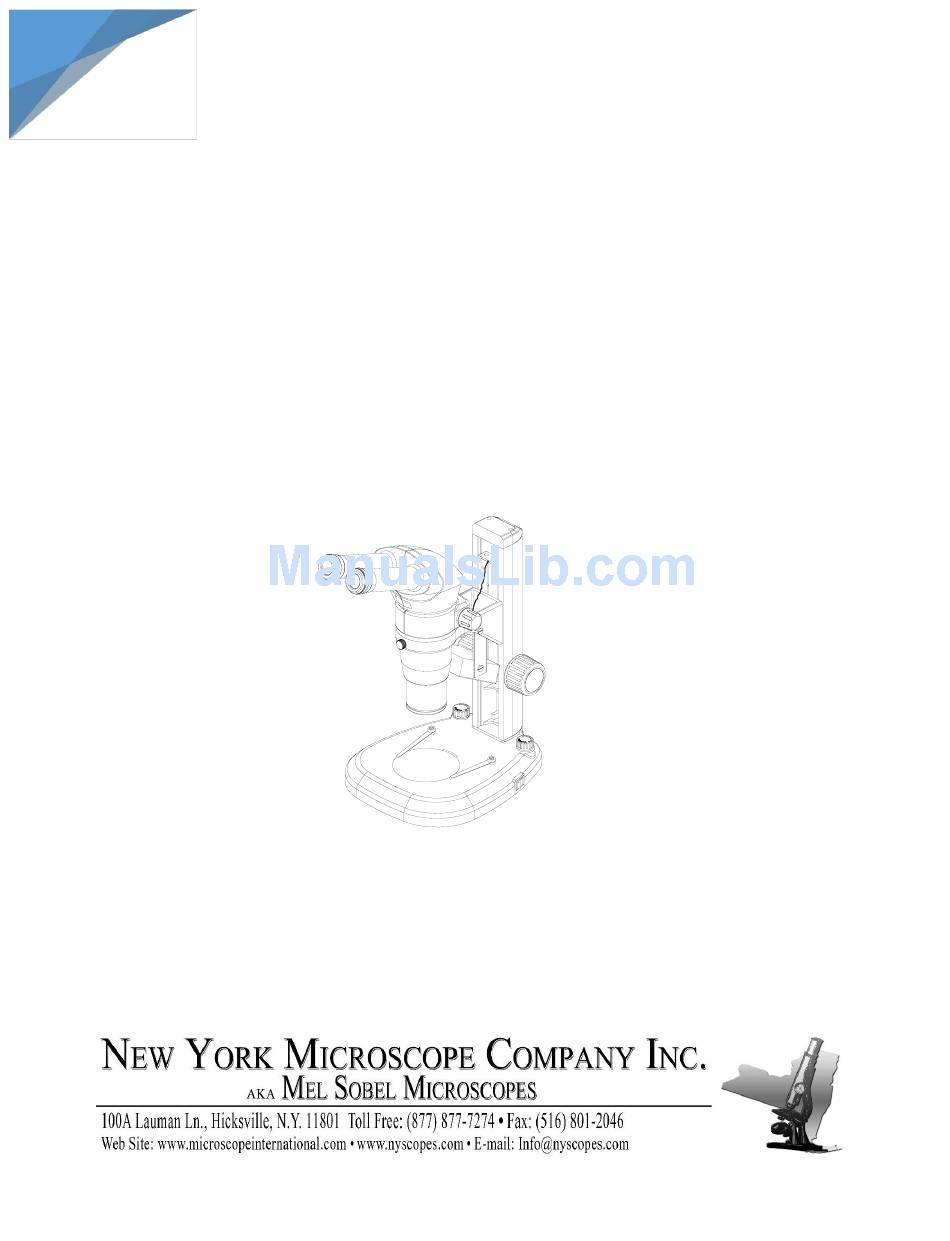

- Page 1 NYMCS-360 Instruction Manual This manual is written for stereo microscope NYMCS-360. To ensure the safety, obtain optimum performance and to familiarize yourself fully with the use of this microscope, it is recommended strongly that you study this manual thoroughly before using the microscope. Retain this manual in an easily accessible place near the work desk for future...
-
Page 2: Table Of Contents
® STEINDORFF CONTENTS USER NOTICE …………………………………………………………………………………………… Components ………………………………………………………………………………………….. Assembly ……………………………………………………………………………………………... 2.1. Assembly Diagram ……………………………………………………………………………... 2.2. Detailed Assembly Procedure …………………………………………………………………. Adjustment and Operation ………………………………………………………………………….. 3.1. Adjusting Binocular Viewing Head …………………………………………………………… 3.2. Focus Adjustment ……………………………………………………………………………… Photography and Video Attachment ……………………………………………………………….. 4.1. Photography and Video Attachment Assembly ………………………………………………... -
Page 3: User Notice
® STEINDORFF USER NOTICE Safety Precaution 1.1. Carefully open the box, avoid the accessories, like lens, dropping to ground and being damaged. 1.2. Check the input voltage, be sure the input voltage which signed on the microscope is consistent with the power supply voltage, or it will bring a serious damage to the instrument. -
Page 4: Components
® STEINDORFF 1. COMPONENTS Binocular viewing head Adjustable WF10×eyepieces Focusing Assembly Clamping Knob Zoom body Objectives Power cord Glass stage Brightness adjusting knob Standard base Main Switch Stereo Microscope NYMCS-360... -
Page 5: Assembly
® STEINDORFF 2. ASSEMBLY 2.1. Assembly Diagram The diagram below shows how to assemble the various modules. The numbers indicate the order of assembly. When assembling the microscope, make sure that all parts are free of dust and dirt, and avoid scratching any parts or touching glass surfaces. -
Page 6: Detailed Assembly Procedure
® STEINDORFF 2.2. Detailed Assembly Procedure 2.2.1. Mounting binocular viewing head (Fig.1, Fig.2) Rotate the objective ① into the objective mount thread on ② the lower end of the zoom body. ②, as ③ in fig.2. Aligning the positioning pin of the zoom body ③ to the positioning groove on the binocular viewing head ④,... - Page 7 ® STEINDORFF 2.2.2. Mounting binocular head (Fig. 3) Loose the clamping bolt ⑦ on the pillar ⑥ and insert the binocular head and zoom body assembly ⑧ into the bracket of the pillar, then screw down the bolt ⑦. 2.2.3. Mounting eyepieces (Fig. 3, Fig. 4, Fig. 5) Remove the eyepiece dust caps ⑨...
- Page 8 ® STEINDORFF 2.2.6. Mounting aperture iris diaphragm attachment (Fig.8, ① Fig.9) Aperture iris diaphragm attachment is optional. Use the provided hexagonal driver to loosen the clamping ② bolt and remove the binocular viewing head ①. Mounting the aperture iris diaphragm attachment ② to the top end of the zoom body.
-
Page 9: Adjustment And Operation
Fig. 11 shows the focusing part of Stereo Microscope NYMCS-360/361; Fig.12 shows the focusing part of Stereo Microscope NYMCS-360. There are coarse focusing knob ⑥ and fine focusing knob ⑦ in this kind of microscope. ⑦... -
Page 10: Focus Adjustment
® STEINDORFF 3.2. Focus Adjustment 3.2.1. Adjusting the rotation tension of the focus adjustment knob (fig. 13, fig. 14) The tension of the microscope has been adjusted well before delivery. Rotate the focus adjustment knob ① to move the slider ①... -
Page 11: Photography And Video Attachment
® STEINDORFF 4. PHOTOGRAPHY AND VIDEO ATTACHMENT 4.1. Adjusting Binocular Viewing Head The light splitter unit ③ make it possible to perform ④ photography or video observation. Loose the bolt ① with provided hex wrench and remove the ③... -
Page 12: The Magnification Of Photography And Video
® STEINDORFF 4.2. The Magnification of Photography and Video Magnification of video = Magnification of main objective × Magnification of zoom body × magnification of C-mount. When using upright illumination system, the magnification of photography = Magnification of main objective ×... -
Page 13: Troubleshooting
® STEINDORFF 6. TROUBLESHOOTING Under certain conditions, performance of this unit may be adversely affected by factors other than defects. If a problem occurs, please review the following list and take remedial action as needed. If you cannot solve the problem after checking the entire list, please contact your local franchiser for assistance. -
Page 14: Outfit
® STEINDORFF 7. OUTFIT Components Specification Quantity Standard Outfit ● Main body Main body ● Observation system Binocular head and zoom body ● Illuminator Transmitted illuminator (LED) ● Reflected illuminator (LED) ● Annular illuminator ○ Fluorescence ○ Eyepiece 10×Eyepiece ●...
