- Page 1 ® STEINDORFF NYMCS-VM2000N HD Digital Video Microscope 100 Lauman Lane, Suite A, Hicksville, NY 11801 Tel: (877) 877-7274 | Fax: (516) 801-2046 Email: Info@nyscopes.com www.microscopeinternational.com...

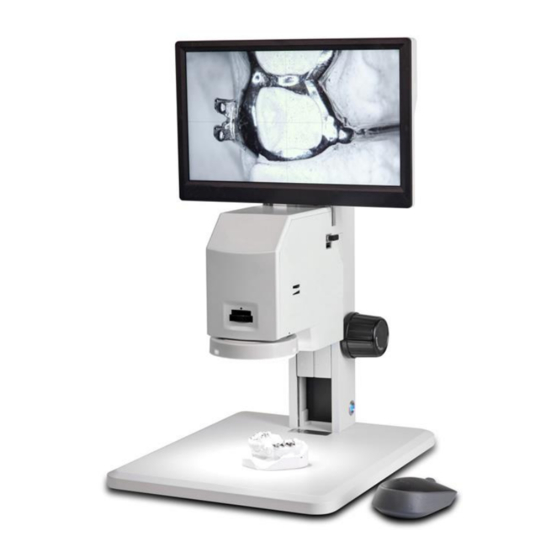

- Page 3 Introductions: This is a new design and Exclusive digital video microscope. Its functions include Camera drawing, video display, graphic measurement, video recording, which is not only for mobile phone repair but also jewelry welding and more precision welding works. 12-80X magnification details will be display on 12 inch screen with 1080 HD resolution.
-
Page 4: Main Specifications
Main Specifications: Microscope: Magnifications: 12X-80X(ZOOM) (optional magnifications: 9X-171X) Built in 0.5X Video Coupler. Standard Objective Lens; 0.75X, 1.5X optional. Max. magnification will be 171X if using optional 1.5X objective lens. FOV: 23mm- 3mm; Max. 30mm for options Working Distance: 100mm; Max.198 for options Base Size: 260mm(X)*320mm(Y) Height of the microscope: 480mm Weight of the microscope: 5.5kgs... - Page 5 Quickly, Exactly, Simply...
- Page 6 Comfort, magnification and speed With the S-VM2000N Digital Microscope, working fast and easy. The 12 "HD resolution monitor provides sharp, high-quality images. The ergonomically tilting monitor makes the instrument comfortable and not tiring. The monitor image can be displayed on multiple screens simultaneously with HDMI splitter, so it's great for use in education as well.
-
Page 8: Camera Specifications
Camera Specifications 1920x1080x24Bit Manual/line control Image spec Shoot Mode 60 fps@1920x1080 U Disk Resolution Storage Mode 1/3” Superpose or cancel Optical Size Crosshairs 3.75x3.75um C Mount Pixel Size Lens Mount R.G.B adjust 5V-12V Color Adjust Working voltage individually One button/Manual 280x180x67mm Camera Size 11.6’’... -
Page 9: Preparation Before Using
Camera Operation Instructions Preparation before using ① Select appropriate lens for camera ② Fix the camera to the holder and match the light source ③ Turn on the power and make sure the monitor indicates that the power light is on. ④... - Page 10 mouse to get the set. 2） To add horizontal line and vertical line: Set the number of lines and press “ok” key, then you will see the lines as you set. Put the mouse to any line, mouse arrowhead will change to hand form then you can move this line to deserved position.
- Page 11 Product Size Chart： Install Size Chart：...
