Page 1: User Manual

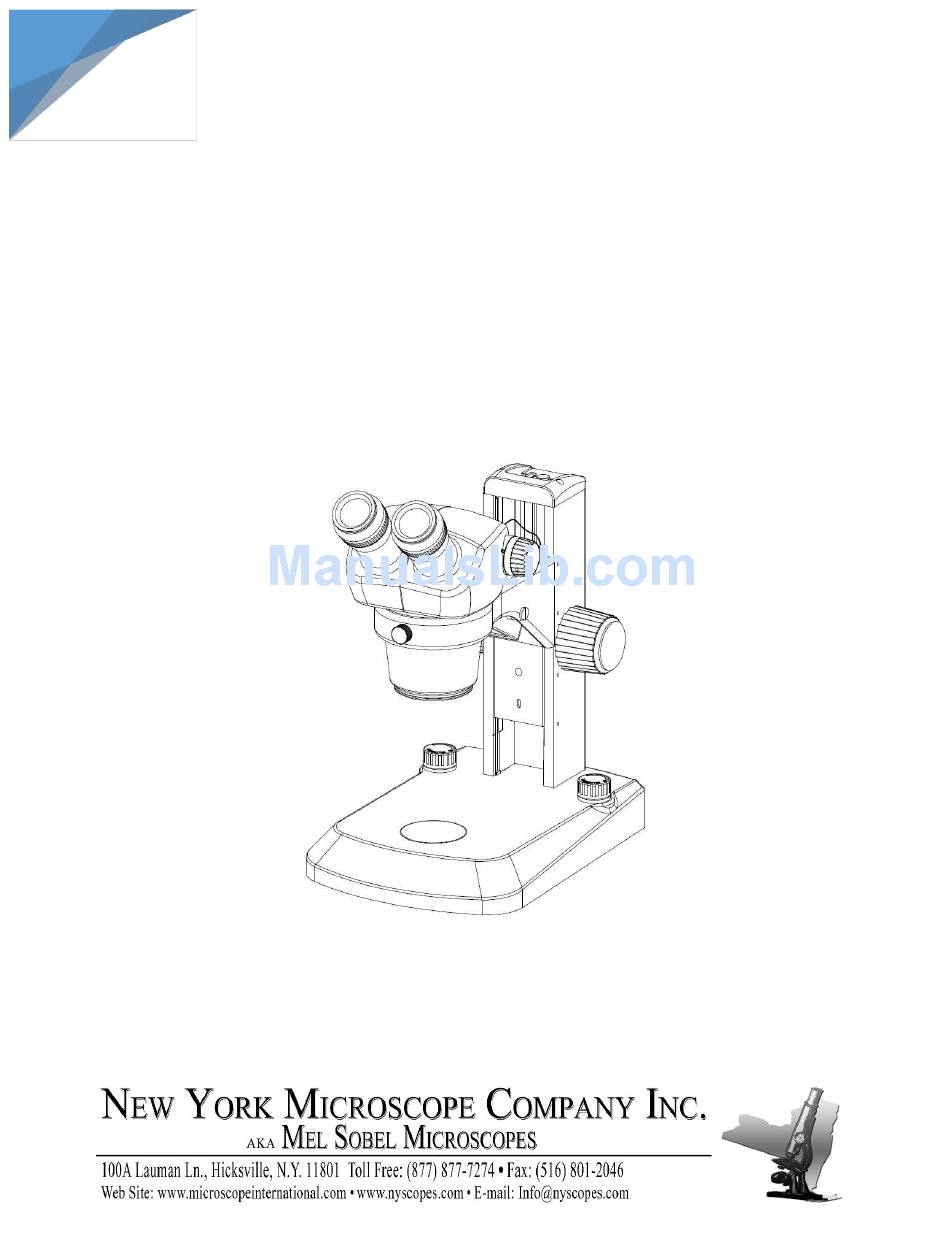

® STEINDORFF Stereo Microscope NYMCS-320 User Manual It is recommended strongly that you study this manual thoroughly before using the microscope. Retain this manual in an easily accessible place near the work desk for future reference. -
Page 2: Table Of Contents
® STEINDORFF CONTENTS Use Notices …………………………………………………………………………………………………. Components …………………………………………………………………………………………… Assembly ……………………………………………………..………………………………………... 2.1. Assembly Diagram ……………………………………………………………………………… 2.2. Assembly Procedure …………………………………………………………………………….. Adjustment and Operation …………………………………………………………………………... 3.1. Adjusting Viewing Head ………………………………………………………………………... 3.2. Focus Adjustment ……………………………………………………………………………….. 3.3. Illumination ……………………………………………………………………………………… Specification …………………………………………………………………………………………… Troubleshooting ………………………………………………………………………………………. Outfit …………………………………………………………………………………………………... -
Page 3: Use Notices
® STEINDORFF USE NOTICES Safety Precaution Carefully open the box, avoid the accessories, like lens, dropping to ground and being damaged. Check the input voltage, be sure the input voltage which signed on the microscope is consistent with the power supply voltage, or it will bring a serious damage to the instrument. -
Page 4: Components

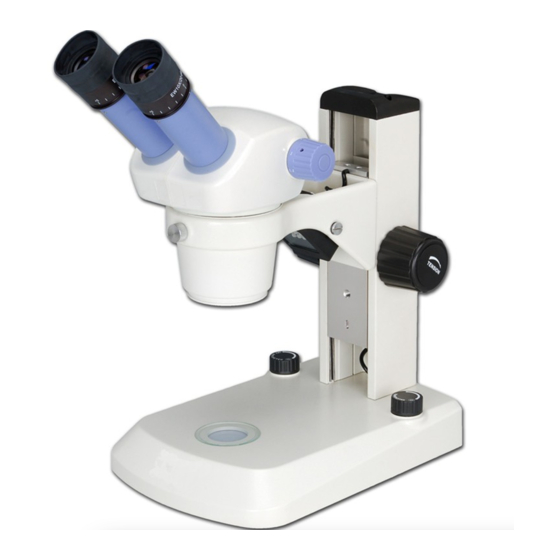

® STEINDORFF 1. COMPONENTS Binocular head and zoom body WF10x eyepieces Diopter ring Stand Clamping knob Focusing knob Standard base Power cord Glass stage Brightness adjusting knob NYMCS-320 Stereo Microscope... -
Page 5: Assembly
® STEINDORFF 2. ASSEMBLY 2.1. Assembly Diagram The diagram below shows how to assemble the various modules. The numbers indicate the order of assembly. When assembling the microscope, make sure that all parts are free of dust and dirt, and avoid scratching any parts or touching glass surfaces. -
Page 6: Assembly Procedure
® STEINDORFF 2.2. Detailed Assembly Procedure 2.2.1. Mounting binocular head (Figure 1) Loose the clamping bolt ③ on the pillar ④ and insert the binocular head and zoom body assembly ② into the bracket of the pillar, then screw down the bolt ③. - Page 7 ® STEINDORFF 2.2.3. Connecting the power cord (Figure 4) Clockwise rotate the left and right brightness adjusting switches ① until the end on (off) state before connecting the power cord ②. The power plug ② into the power jack of the microscope;...
-
Page 8: Adjustment And Operation
® STEINDORFF 3. ADJUSTMENT AND OPERATION 3.1. Adjusting Binocular Viewing Head 3.1.1. Adjusting interpupillary distance (Figure 7) Different users have different interpupillary distances. So when users change, do the interpupillary distance adjustment. While looking through the eyepieces, hold the left and right of the binocular assembly ①... -
Page 9: Focus Adjustment
® STEINDORFF 3.2. Focus Adjustment 3.2.1. Adjusting the rotation tension of the focus adjustment knob (Figure 9) Rotate the focus adjustment knob ① to move the slider ② to a lower place for fear that the zoom body drops down suddenly if the tension is decreased too much. -
Page 10: Specification
® STEINDORFF 4. SPECIFICATION 4.1. Zoom ratio: 1:4.5 4.2. Objective magnification: 1x～4.5x 4.3. Binocular viewing head: Inclined at 45˚, interpupillary distance range: 55～75mm 4.4. Working distance: 97mm 4.5. Illumination system: Adjustable illumination for both LEDs (top and bottom) Eyepiece Working... -
Page 11: Outfit
® STEINDORFF 6. OUTFIT Components Specification Quantity Outfit ● Main body Main body ○ 1:4.3 Binocular head and zoom body ● Observation system 1:4.5 ○ Trinocular head and zoom body ● Transmitted illuminator (LED) Illuminator ● Reflected illuminator (LED) ●...
