STEINDORFF

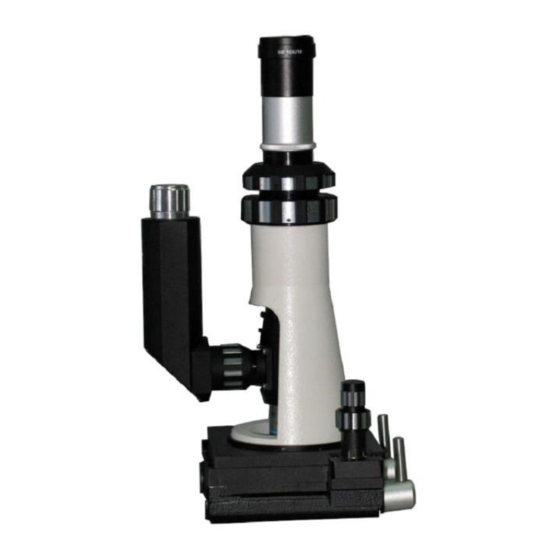

Portable Metallurgical Microscope
Model: NYMCS-605 / NYMCS-606
Instruction Manual
This manual is written for portable metallurgical microscope NYMCS-605,
NYMCS-606.
To ensure the safety, obtain optimum performance and to familiarize you
fully with the use of this microscope, it is recommended strongly that you study this
manual thoroughly before using the microscope and retain this manual in an easily
accessible place near the work desk for future reference.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for STEINDORFF NYMCS-605
Summary of Contents for STEINDORFF NYMCS-605
- Page 1 Portable Metallurgical Microscope Model: NYMCS-605 / NYMCS-606 Instruction Manual This manual is written for portable metallurgical microscope NYMCS-605, NYMCS-606. To ensure the safety, obtain optimum performance and to familiarize you fully with the use of this microscope, it is recommended strongly that you study this manual thoroughly before using the microscope and retain this manual in an easily accessible place near the work desk for future reference.
- Page 2 ® STEINDORFF Content 1. Introduction ..................2 2. Specification .................. 3 3. Parameters..................3 4. Structure..................4 5. Operation ..................4 6. Maintenance ................... 5 7. Outfit....................6 8. Optional Accessories ..............6...
- Page 3 It also can be used for jade, porcelain, bronze surface tissue structure observation and analysis. NYMCS-605, NYMCS-606 uses LED vertical illumination, it is portable, convenient to use and safety. Optional magnetic base is available, convenient for observation of large pipes and equipment.
- Page 4 ® STEINDORFF 2. Specification (1) Objective Type Magnification N.A. System WD(mm) PLL10X 0.25 7.3 mm LWD Plan Metallurgical objective PLL50X 0.70 0.5 mm (2) Eyepiece Type Magnification Field Diameter Ø18 mm Plan Eyepiece 12.5X (optional) Ø13 mm 3. Parameters (1) Total magnification: 100X, 500X...
- Page 5 ® STEINDORFF 4. Structure (1) Objective (2) Objective base (3) Polarizer slot (4) Microscope Body (5) Focus stop screw (6) Coarse limit screw (7) Coarse adjustment knob (8) Fine adjustment knob (9) Eyepiece tube (10) Eyepiece (11) Analyzer Slot (12) Illumination switch (13) Power indicator.
- Page 6 ® STEINDORFF When use the magnetic base, please remove the 16# microscope base and screw the microscope on the magnetic base, then you can use the magnetic base to attach the microscope on a pipe or large equipment. You can change the screw on the magnetic base to make the magnetic base work or not.
- Page 7 ® STEINDORFF 7. Outfit Item Description Quantity Note 10X Eyepiece 10X Plan Metallurgical objective 50X Plan Metallurgical objective Installed on the Illuminator microscope Charger User Manual 8. Optional Accessories (1) 5X, 20X, 40X, 60X Plan Metallurgical Objective (2) CCD/CMOS video adapter...
