02 Installing your Performance Box Touch V1 in the Vehicle

Installation

The battery is connected to Performance Box Touch using the Richter mounting system on the rear of the unit. Insert
the prongs from the back of the battery in to the rear of Performance Box Touch and then push upwards to secure.

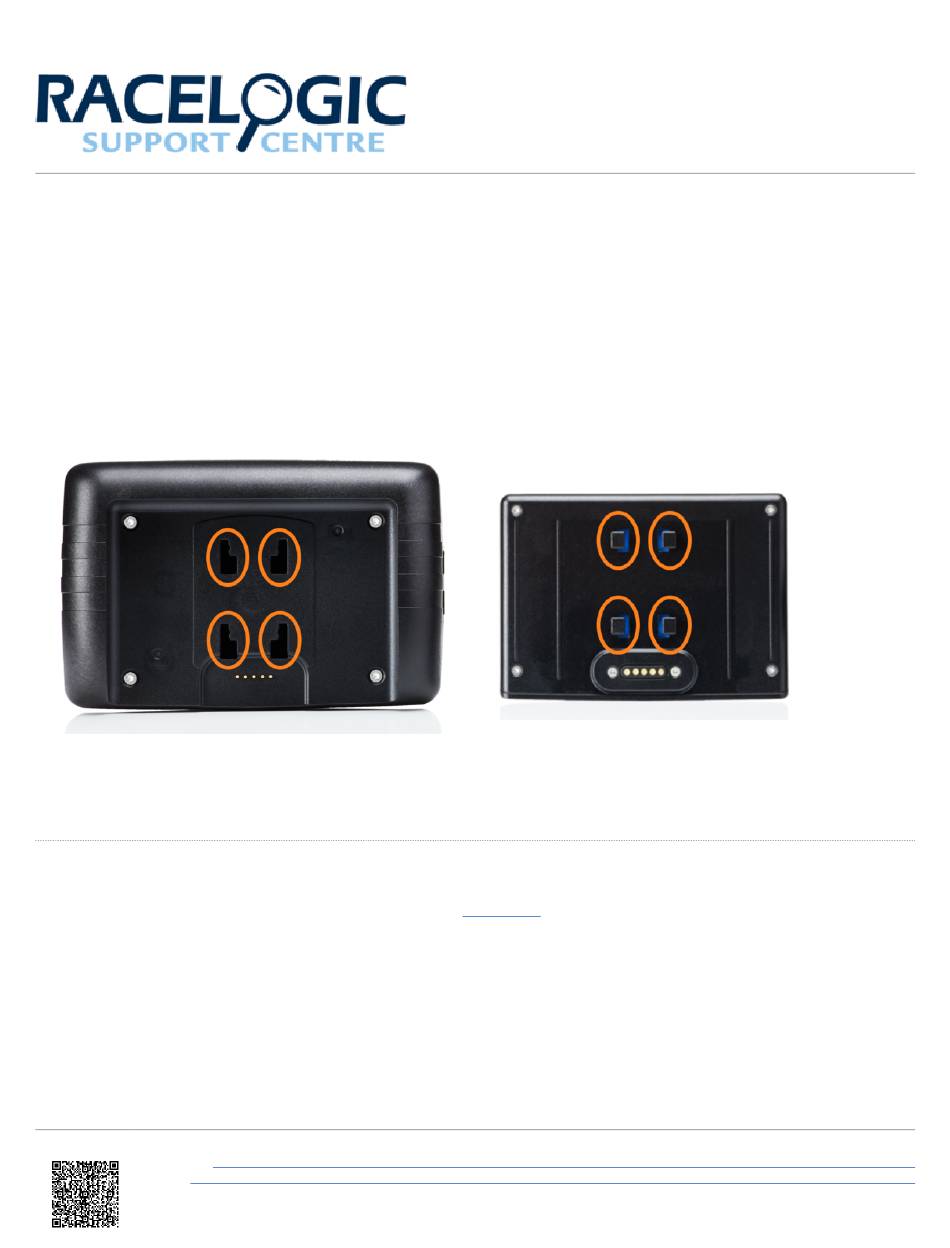

Richter mounting system on back of Performance
Box Touch

Connectors

You can find more detailed connector information on the
https://en.racelogic.support//Product_Info/Performance_Meters/Performance_Box_Touch/Performance_Box_Touch_V1/
User_Guide_%E2%80%93_Performance_Box_Touch_V1/02_Installing_your_Performance_Box_Touch_V1_in_the_Vehicle
Richter mounting system on rear of battery
PIN OUTS
page.
(RLACS290)
1
