Hardware layout and configuration
6.3.3
Using the ST-LINK/V2-1 to program and debug the on-board STM32
To program the on-board STM32, place the two jumpers marked in red on the connector
CN4, as shown in
communication with the STM32 microcontroller of the Nucleo-144 board.

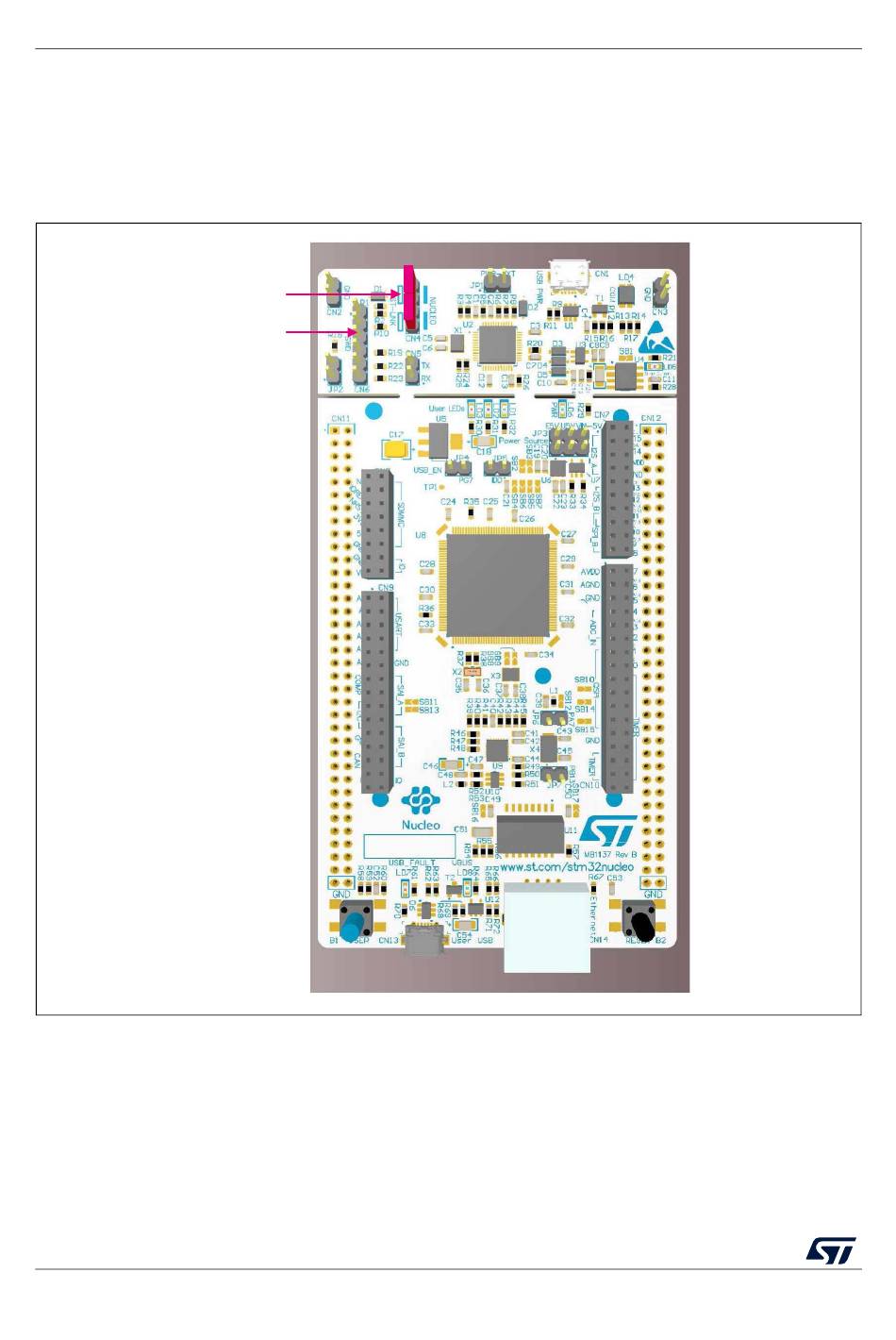

Figure 9. Connecting the STM32 Nucleo-144 board to program the on-board STM32
CN4 jumpers ON
SWD connector
18/85
Figure
9. The CN6 connector must not be used, since it might disturb the
(CN6)
UM1974 Rev 9
UM1974
MSv40065V3
