RASFinder RF300E/RF310E User Guide
Final Routing Setup
1. From your desktop, click Start | Programs | RASFinder 3.10 | RASFinder Configuration, or
double-click the RASFinder Configuration icon in the RASFinder 3.10 icon group window when it is
displayed on your desktop.

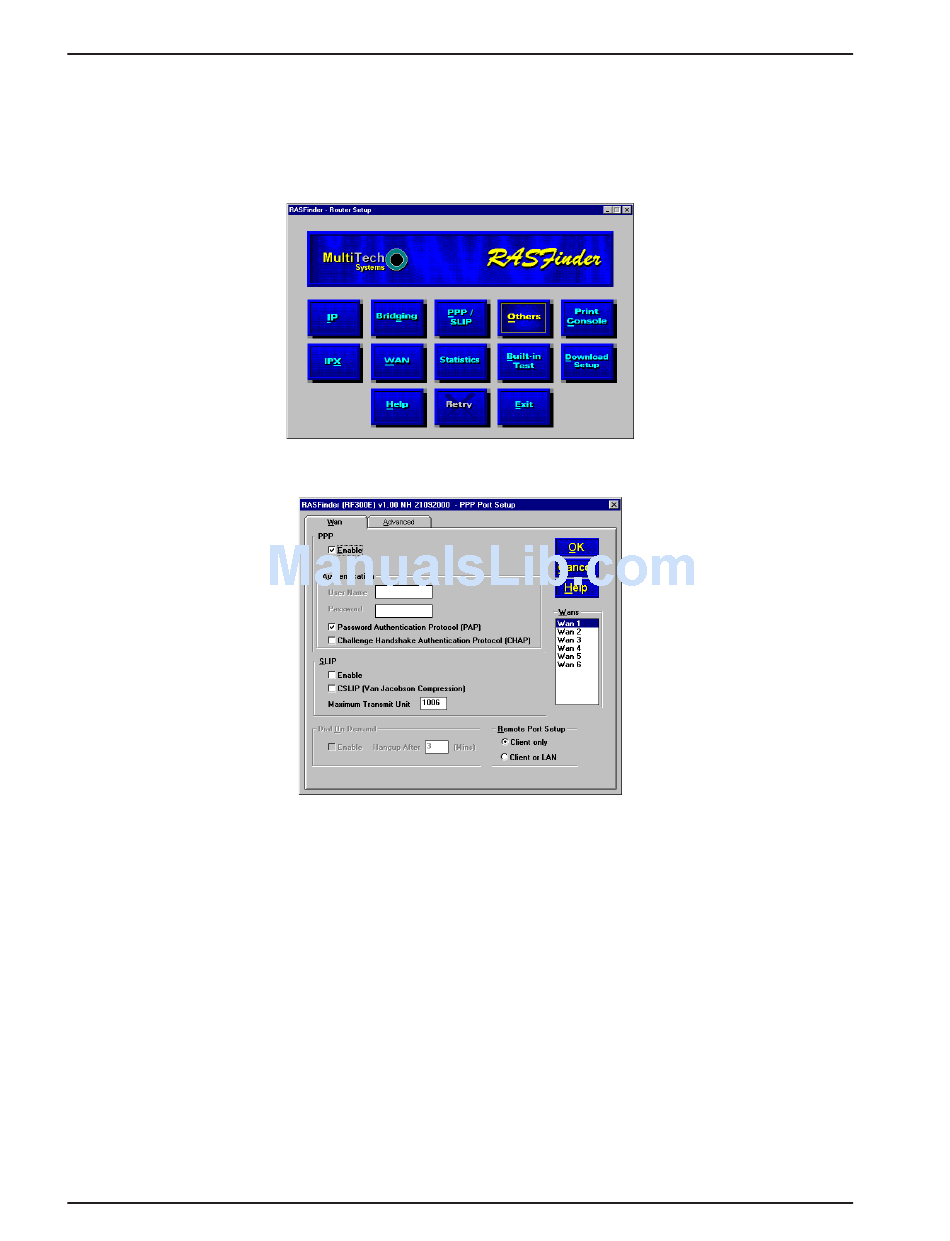

2. The main menu (Router Setup) is displayed.
Click PPP/SLIP button to continue.
3. The PPP Port Setup dialog box is displayed.
On the WAN tab, click Client or LAN in the Remote Port Setup group in the bottom right corner;
this enables Client or LAN and disables the default, Client only. Select another WAN port you are
using and repeat until ALL the WAN ports are switched to Client or LAN.
32
RF300E/RF310E
