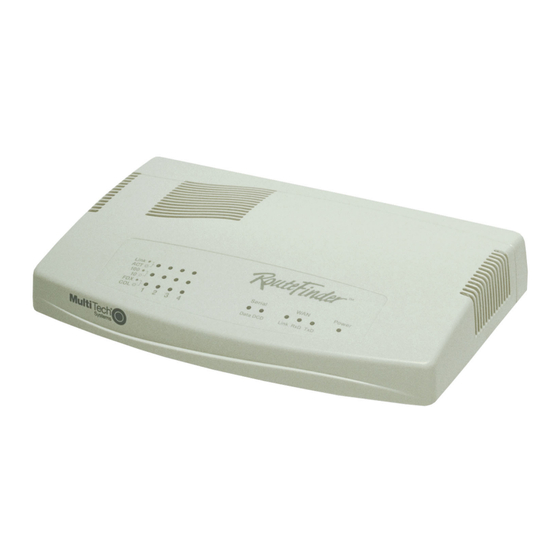

Multitech RF560VPN Reference Manual
Pptp with windows ias radius server
Hide thumbs
Also See for RF560VPN:
- Reference manual (18 pages) ,
- Quick start manual (40 pages) ,
- User manual (82 pages)
Advertisement
Quick Links
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Multitech RF560VPN
Summary of Contents for Multitech RF560VPN
- Page 1 RF560VPN RF560VPN PPTP with Windows IAS Radius Server Reference Guide...
- Page 2 8-19-2003 About This Document This document is broken down into two sections. Section one explains how to configure the RF560VPN as a secure PPTP server. Section two explains how to setup your IAS server for Windows 2000. Multi-Tech Systems, Inc. Reference Guide...
- Page 3 IAS Server Setup in Windows 2000 Section 1 Multi-Tech Systems, Inc. Reference Guide...
- Page 4 Configuring RF560VPN for PPTP 1. Connect a workstation to one of the RF560VPN’s LAN ports via Ethernet at Site A. 2. Set the workstation IP address to 3. Apply power to the RF560VPN RouteFinder and allow the LEDs to stabilize on the unit.
- Page 5 Administrative Settings. 8. Click OK. The Setup Wizard screen displays a step-by-step process that lets you input all of the basic settings to configure your RF560VPN. 9. Select the Time Zone, and then click the Next button to continue. Multi-Tech Systems, Inc. Reference Guide...
- Page 6 10. For Device IP Settings enter the internal LAN IP address and subnet mask that you want assigned to the LAN ports of the RF560VPN. This is not the IP address from your ISP but the local internal LAN IP address. The default IP address is 192.168.2.1 and will be used for our example.
- Page 7 11. For ISP Settings, select Static IP Settings and enter the following information. IP Assigned by your ISP: This is the IP address of the WAN port on the RF560VPN at Site A. (Ex: 204.26.122.103) IP Subnet Mask: This is the IP address of the subnet mask for the WAN port on the RF560VPN.
- Page 8 Specify RADIUS Server IP Address as 192.168.2.100 h) Specify Secret password that will match the password for RADIUS Server. Once the VPN PPTP settings are entered, click on the Next button to save these settings. Multi-Tech Systems, Inc. Reference Guide IAS Server Setup in Windows 2000...
- Page 9 The RouteFinder home page will be loaded automatically after restart is completed. This completes the configuration of the RF560VPN at Site A. Multi-Tech Systems, Inc. Reference Guide IAS Server Setup in Windows 2000...
- Page 10 4. Click to clear the Log rejected or discarded authentication requests check box if you do not want to record these events. NOTE: You can use this log file to help you to determine if unauthorized individuals are attempting to be authenticated in the domain. Multi-Tech Systems, Inc. Reference Guide IAS Server Setup in Windows 2000...
- Page 11 6. When the correct IP address for the Routing and Remote Access Server (RRAS) appears in the Search results box, click Use this IP. 7. In the Client-Vendor list, leave the default selection of RADIUS Standard unless you are configuring a non-standard RADIUS client. Multi-Tech Systems, Inc. Reference Guide IAS Server Setup in Windows 2000...
- Page 12 For additional information about how to create remote access policies, review the references at the end of this document. 5. Now stop and restart the IAS client computer. Multi-Tech Systems, Inc. Reference Guide IAS Server Setup in Windows 2000...
- Page 13 For more information about IAS, view the following Microsoft Web site: http://www.microsoft.com/windows2000/en/server/help/default.asp?url=/windows2000/en/server/help/sag _ias_usingtop.htm Additional information about RADIUS is contained in the following Request for Comment documents: RFC 2138 RFC 2139 To view these documents, view the following Web sites: http://www.cis.ohio-state.edu/cgi-bin/rfc/rfc2138.html http://www.cis.ohio-state.edu/cgi-bin/rfc/rfc2139.html Multi-Tech Systems, Inc. Reference Guide...
