Cabling Your MultiDSU

Cabling your MultiDSU involves making the proper Power, Command
port, Line, and Data port connections. Figure 2-2 shows a typical
application for the MultiDSU. Figure 2-3 shows the back panel connec-
tors and associated cable connections, and Table 2-1 contains the
procedures for connecting the cables to your MultiDSU.
To Telco
or
Slave MultiDSU
(back to back)
1. Connect a V.35 interface cable to the Winchester type Data
connector on the back of the MultiDSU. Connect the other end of
the cable to your DTE device (e.g., a router or frame relay access
device). Refer to Appendix A for cable details.
2. Connect the special serial cable's RJ45 connector to the COM-
MAND jack on the back of the MultiDSU, then make sure the other
end of this cable is connected to a serial (COM) port on your
terminal or PC.
3. Connect the T1 line (or back-to-back cable) to the mating RJ48
LINE connector on the back of the MultiDSU.
PC
Connection

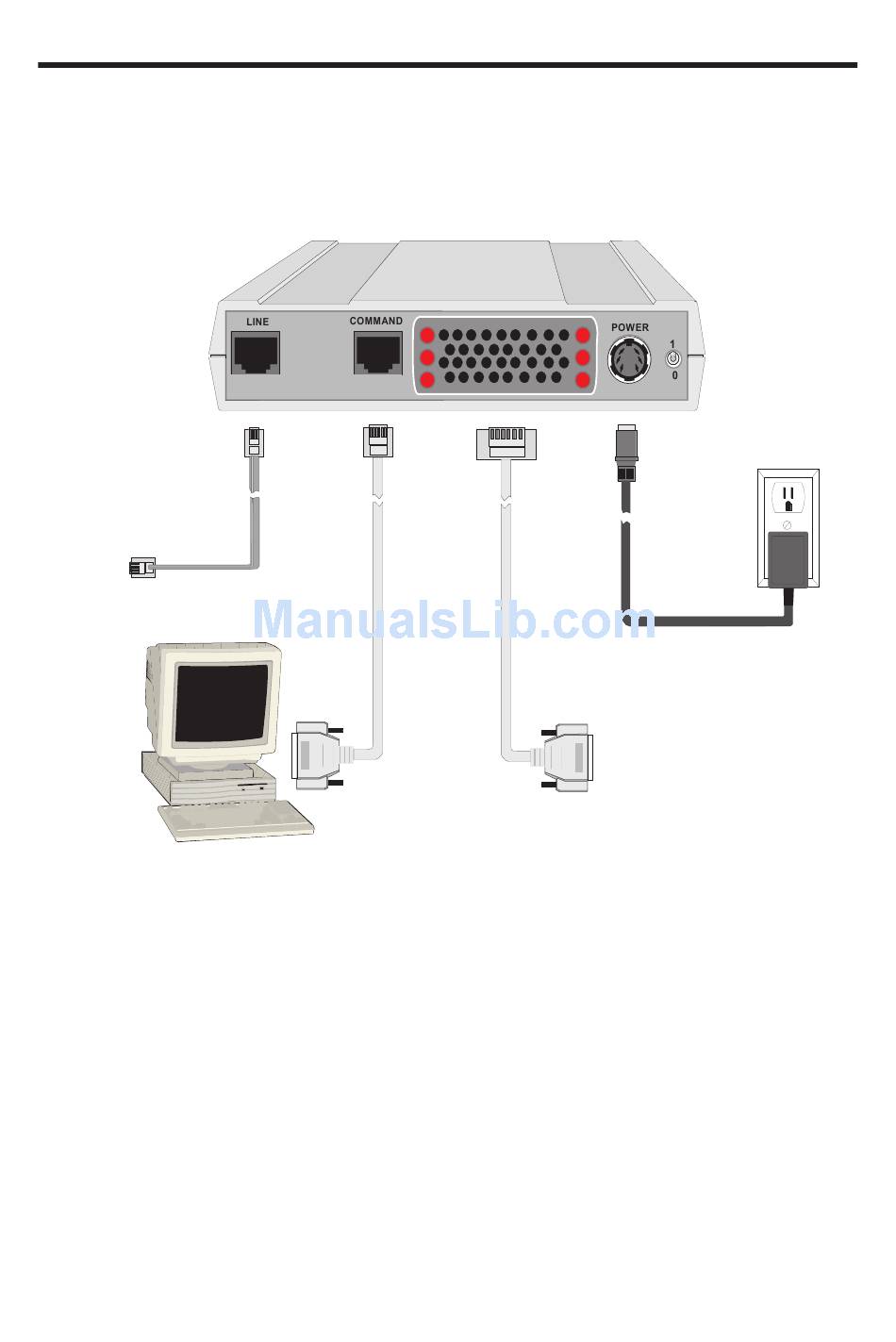

Figure 2-3. Cable Connections
Table 2-1. Cabling the MultiDSU
Power
Connection
Device
Connection
19
