Page 1

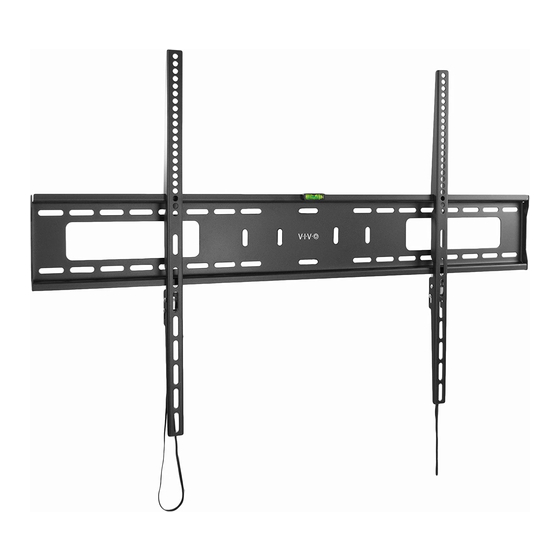

Extra Large TV Wall Mount Instruction Manual SKU: MOUNT-VW100F Scan the QR code with your mobile device or follow the link for helpful videos and specifications related to this product. https://vivo-us.com/products/mount-vw100f GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST help@vivo-us.com www.vivo-us.com...
Page 2
CAUTION! DO NOT INSTALL INTO DRYWALL ALONE. VERIFY YOUR WALL CONSTRUCTION. USE WOOD STUDS TO MOUNT. We include mounting for brick and concrete walls. If unsure, please contact us at vivo-us. com, email at help@vivo-us.com, or call us at 309-278-5303.
Page 3
ASSEMBLY STEPS STEP 1 OPTION A: Wood Wall Use Mount (A) with Level (T-A) to mark mounting holes on wall where studs are located. Using a 5/32” bit, drill 2.2” into wall. Install mount using Mounting Screws (W-A) and Washers (W-C). OPTION B: Concrete/Brick Wall Use mount (A) with Level (T-A) to mark mounting holes on wall.
Page 4
AVG. RESPONSE TIME (within office hrs): 1HR 8M help@vivo-us.com - 23% within < 15m - 38% within < 30m - 61% within < 1hr - 83% within < 2hr - 92% within < 3hr FOR MORE VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: www.vivo-us.com...
