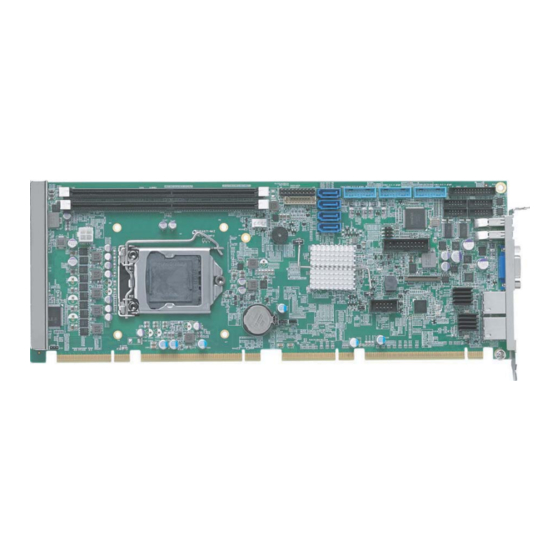

ADLINK Technology NuPRO-E43 Manual

Picmg 1.3 full size lga1151 intel core i7/i5/i3 processor-based shb
Hide thumbs
Table of Contents

Advertisement

Quick Links

®
PICMG

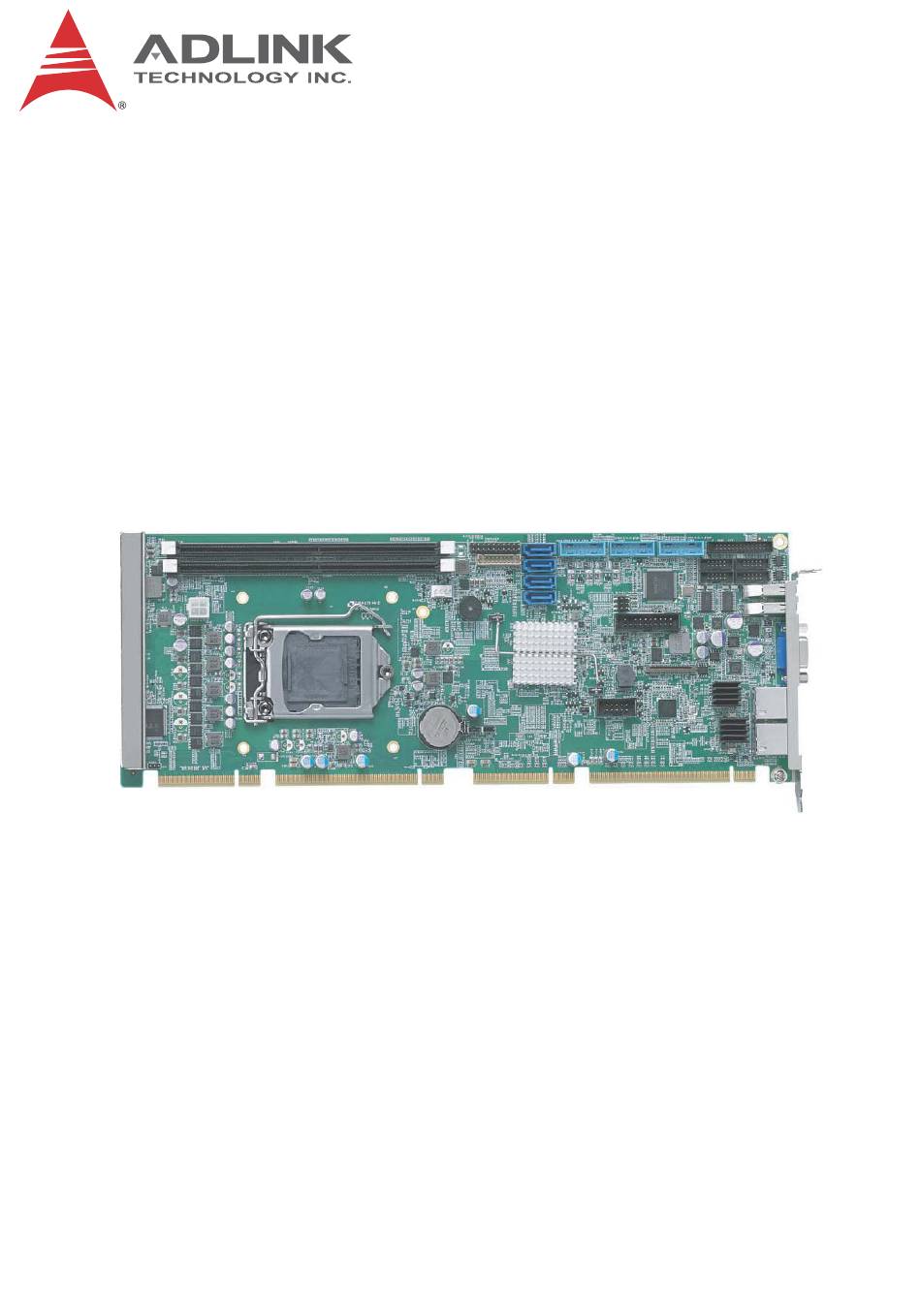

Manual Rev.:
Revision Date:
Part No:
Advance Technologies; Automate the World.
NuPRO-E43
1.3 Full Size LGA1151 Intel
i7/i5/i3 Processor-Based SHB
2.00
May 13, 2016
50-13075-1000
®
™
Core

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NuPRO-E43 and is the answer not in the manual?

Questions and answers

Related Manuals for ADLINK Technology NuPRO-E43

Summary of Contents for ADLINK Technology NuPRO-E43

  • Page 1 NuPRO-E43 ® ® ™ PICMG 1.3 Full Size LGA1151 Intel Core i7/i5/i3 Processor-Based SHB Manual Rev.: 2.00 Revision Date: May 13, 2016 Part No: 50-13075-1000 Advance Technologies; Automate the World.
  • Page 2 Revision History Revision Release Date Description of Change(s) 2.00 May 13, 2016 Initial Release...
  • Page 3 NuPRO-E43 Preface Copyright 2016 ADLINK Technology, Inc. This document contains proprietary information protected by copy- right. All rights are reserved. No part of this manual may be repro- duced by any mechanical, electronic, or other means in any form without prior written permission of the manufacturer.
  • Page 4 Conventions Take note of the following conventions used throughout this manual to make sure that users perform certain tasks and instructions properly. Additional information, aids, and tips that help users perform tasks. NOTE: NOTE: Information to prevent minor physical injury, component dam- age, data loss, and/or program corruption when trying to com- plete a task.

  • Page 5: Table Of Contents

    NuPRO-E43 Table of Contents Preface ..................iii List of Figures ............... vii List of Tables................ix 1 Introduction ................ 1 Overview................1 Features................1 Specifications............... 2 Block Diagram ..............5 Functional Description ............5 Schematics and Dimensions ..........8 I/O Connectivity ..............8 Rear Panel I/O Ports............
  • Page 6 A.3.2 Memory Configuration ..........34 A.3.3 System Agent (SA) Configuration......35 A.3.4 Graphics Configuration ..........36 A.3.5 PCI Express Configuration ........37 A.3.6 USB Configuration ............ 40 A.3.7 SATA Configuration ..........44 A.3.8 Onboard Device Configuration ......... 46 A.3.9 Advanced Power Management......... 55 A.3.10 TPM 1.2 Configuration..........

  • Page 7: List Of Figures

    NuPRO-E43 List of Figures Figure 1-1: NuPRO-E43 Block Diagram ..........5 Figure 1-2: Board Dimensions ............8 Figure 1-3: Rear Panel I/O Ports............9 Figure 1-4: Board Layout ..............11 List of Figures...
  • Page 8 This page intentionally left blank. viii List of Figures...

  • Page 9: List Of Tables

    NuPRO-E43 List of Tables Table 1-1: NuPRO-E43 I/O Connectivity .......... 9 Table 1-2: Rear Panel I/O Legend ..........10 Table 1-3: Board Layout Legend ............ 12 List of Tables...
  • Page 10 This page intentionally left blank. List of Tables...

  • Page 11: Introduction

    DIMM slots. These advanced features, coupled with PCI Express® x16 expan- sion capability, dual PCI Express®-based Gigabit Ethernet, SATA 6 Gb/s and USB 3.0 support make the NuPRO-E43 ideal for vision and automation control applications. 1.2 Features Supports Intel® Core™ i7/i5/i3 and Pentium® processors in LGA1151 package Integrated Intel®...

  • Page 12: Specifications

    To purchase the optional DB-Audio2 daughter board, please contact your ADLINK sales representative. NOTE: NOTE: 1.3 Specifications Processor& System Intel® Core™ i7-6700, 3.4GHz, 8M cache, 14nm, 65W TDP, LGA1151 (4C/8T) Intel® Core™ i7-6700TE, 2.4GHz 8M cache, 14nm, 35W TDP, LGA1151 (4C/8T) Intel®...
  • Page 13 NuPRO-E43 Microsoft® Windows® 7 32/64-bit Microsoft® Windows® 8.1 64-bit Microsoft® Windows® 10 64-bit Ubuntu 15.10 Serial ATA 4x SATA 3.0 onboard with RAID support 2x RS-232 via onboard 2.0 pitch box header Serial Ports 2x RS-232/422/485 with auto flow control via onboard 2.0 pitch box header...
  • Page 14 Ethernet LAN1: Intel® I219LM PHY via RJ45 Controller LAN2: Intel®I211-AT via RJ45 Interface PCIe x1 bus iAMT Support iAMT 11 Wake On LAN Support on LAN1 Manageability SEMA support with BMC SEMA SEMA Cloud Mechanical and Environmental Form Factor Full-sized PICMG® 1.3 system host board Dimensions 338 mm x 126 mm (L x W) Operating Temperature...

  • Page 15: Block Diagram

    Figure 1-1: NuPRO-E43 Block Diagram 1.5 Functional Description Processor Support The NuPRO-E43 is PICMG 1.3 System Host Board supporting the 6th Generation Intel® Core™ processor family (Intel® Core™ i7/ i5/i3) in LGA1151 socket. An integrated memory controller sup- ports dual channel DDR4 and Intel® HD Graphics is integrated onboard the CPU.
  • Page 16 AMT 11 (I219LM on LAN1), Wake- on-LAN, and PXE supported. Serial ATA The NuPRO-E43 provides four Serial ATA ports with data transfer rates of up to 6.0 GB/s. Intel® Rapid Storage Technology supports AHCI and RAID 0/1/5/10 functionality. Universal Serial Bus (USB 2.0/3.0) The NuPRO-E43 provides 4 USB 2.0 ports (backplane) supporting...
  • Page 17 Trusted Platform Module The NuPRO-E43 optionally supports TPM ver. 1.2 (Trusted Plat- form Module) for secure storage of keys, passwords and digital certificates. Systems supporting TPM offer improved hardware-...

  • Page 18: Schematics And Dimensions

    1.6 Schematics and Dimensions All dimensions shown are in mm (millimeters). NOTE: NOTE: 338.1 333.6 151.8 39.6 20.6 126.4 123.1 126.4 Figure 1-2: Board Dimensions 1.7 I/O Connectivity Edge Bracket Onboard Remarks Connector — — DB-15 Cable w/ bracket DVI-D —...

  • Page 19: Rear Panel I/O Ports

    — PCIe x16 — — — PCI 32bit/33MHz — — via ITE IT8892 Table 1-1: NuPRO-E43 I/O Connectivity 1.8 Rear Panel I/O Ports Figure 1-3: Rear Panel I/O Ports Connector Description LAN1 (RJ-45) Gigabit Ethernet (supports Intel® AMT) LAN2 (RJ-45)
  • Page 20 Connector Description DB-15 connector for CRT or LCD monitor USB 3.0 x2 SuperSpeed USB 3.0 ports Table 1-2: Rear Panel I/O Legend USB 3.0 Connectors Pin # Signal Name USB3.0_P5VA USB2_CMAN USB2_CMAP USB3A_CMRXN USB3A_CMRXP USB3A_CMTXN USB3A_CMTXP LAN (RJ-45) Ports 10BASE-T/ Pin # 1000BASE-T 100BASE-TX...

  • Page 21: Board Layout

    NuPRO-E43 LED1 LED2 Linked Green 100 Mb connection Blinking Data Activity Amber 1 Gb connection VGA Port Pin # Signal Pin # Signal +5 V Green Ground Blue DDC DAT Ground HSYNC Ground VSYNC Ground DDC CLK Ground 1.9 Board Layout...
  • Page 22 Connector Description CN40 DIMM B0 CN39 DIMM A0 CN36 Power 4-pin (ATX 12V) FAN1 Fan1(CPU fan) CN35 USER (system panel pin header) CN34 DVI (DVI-D) CN30 SATA #0 CN31 SATA #1 (Top CN32 SATA #2 down) CN33 SATA #3 CN26 USB3.0 #3/4 CN27 USB3.0 #5/6...

  • Page 23: Onboard Connectors

    NuPRO-E43 1.10 Onboard Connectors COMA to D Connector (RS-232) (CN7/8/9/10) Pin # RS-232 Signal COMA COMB COMC COMD (COM1) (COM2) (COM3) (COM4) Connector CN10 Pitch 2.00 mm 2.00 mm 2.00 mm 2.00 mm COMA to B Connector (RS-422/485) (CN7/8) Pin #...
  • Page 24 USB 3.0 Connectors (CN26/27/28) Pin # Signal Pin # Signal P5V_USB3B S_USB3_RN3_R P5V_USB3B S_USB3_RP3_R S_USB3_RN4_R S_USB3_RP4_R S_USB3_TN3_R S_USB3_TP3_R S_USB3_TN4_R S_USB3_TP4_R S_USB2_N2_R S_USB2_P2_R S_USB2_N3_R S_USB_OC1# S_USB2_P3_R Introduction...
  • Page 25 NuPRO-E43 DVI-D Onboard Connector(CN34) Pin # Signal TMD_CKP TMD_N2 TMD_CKN TMD_P2 TMD_SCL TMD_N1 TMD_SDA TMD_P1 TMD_HPD TMD_N0 +5V_PSU_DVI TMD_P0 Introduction...
  • Page 26 DVI-D Bracket Connector (optional cable w/ bracket, P/N 30-01052-2000) Pin # Signal Pin # Signal TMDS Data2- TMDS Data3+ TMDS Data2+ +5 V Power TMDS Data2/4 Shield TMDS Data4- Hot Plug Detect TMDS Data4+ TMDS Data0- DDC Clock [SCL] TMDSData0+ DDC Data [SDA] TMDS Data0/5 Shield Analog vertical sync...
  • Page 27 NuPRO-E43 PS/2 Keyboard/Mouse Pin Header (CN37) Pin # Signal KBCLK_R KBDATA_R MSCLK_R MSDATA_R KM_VCC Serial ATA Connectors (CN30~33)HD Audio Daughter Pin # Signal Board Connector (CN5) This connector is designed for use with the ADLINK DB-Audio2 daughter board. Pin #...
  • Page 28 System Panel Connector (CN35) Connects to chassis-mounted buttons, speakers, and LEDs. Pin # Signal SPKR RSTBTN +5V_PSU PWRBTN KEYLOCK HLED PLED HLED_POWER +5V_PSU Fan Connector (FAN1) Pin # Signal Fan power (+12V) Fan Tachometer Fan Speed Control Introduction...

  • Page 29: Jumpers & Switches

    NuPRO-E43 1.11 Jumpers & Switches Clear CMOS Jumper (CN41) To clear the BIOS settings (RTC RST#): 1. Power down and disconnect power from the system. 2. Short pins 2-3 on CN41. 3. Reconnect power and power up the system. 4. Wait 3 seconds or more.
  • Page 30 This page intentionally left blank. Introduction...

  • Page 31: Getting Started

    2-port COM cable with bracket (2.0 mm pitch) Printer port cable with bracket (2.0 mm pitch) The NuPRO-E43 must be protected from static discharge and physical shock. Never remove any of the socketed parts except at a static-free workstation. Use the anti-static bag shipped with WARNING: the product to handle the board.
  • Page 32 To install the CPU: 1. Press down on the locking arm (A), then push it away from the socket to disengage it from the retention tab (B). 2. Raise the locking arm to unlock the load plate. 3. Lift the load plate to uncover the socket. Getting Started...
  • Page 33 NuPRO-E43 4. Remove the plastic protective cover from the socket. Note the locations of the alignment keys (A) and Pin 1 indicator (B). Do NOT touch socket contacts. WARNING: 5. Hold the CPU using thumb and forefinger as shown. Position the CPU over the socket, matching the notches on the sides of the CPU with the alignment keys on the socket (A).
  • Page 34 Carefully place the CPU into the socket vertically. The socket has cutouts for your fingers to fit into. Cutouts 6. Gently lower the load plate. Make sure the front edge of the plate is under the screw as indicated. 7. Lower the locking arm and fasten it to the retention tab (A).

  • Page 35: Installing The Cpu Fan And Heatsink

    3. Connect the CPU fan cable to the CPU fan connector on the SHB labeled FAN1. 2.4 Installing Memory Modules The NuPRO-E43 supports up to 32 GB of DDR4 2133 MHz memory on two DIMM sockets. DDR4 modules have a 288-pin footprint compared to DDR3's 240-pin DIMM.
  • Page 36 Memory Configuration Options 4GB, 8GB, and 16GB unbuffered non-ECC DDR4 DIMM are sup- ported in the following configurations. Channel A: DIMMA0 Channel B: DIMMB0 For dual-channel configuration, the total size of memory module installed per channel must be the same (DIMMA0 = DIMMB0).
  • Page 37 NuPRO-E43 Notch Break 4. Insert the module firmly into the slot until the retaining clips snap back inwards and the module is securely seated. Getting Started...

  • Page 38: Driver Installation

    2.5 Driver Installation Download requisite drivers, as follows, for your system from http:// www.adlinktech.com and install. Chipset Display Ethernet Rapid Storage USB 3.0 Management Engine In order to enable RAID or AHCI mode, you must pre-install the Intel® Rapid Storage Technology driver during the Windows* instal- lation process.

  • Page 39: A Appendix: Bios Setup

    NuPRO-E43 Appendix A BIOS Setup The following chapter describes basic navigation for the ® AMIBIOS EFI BIOS setup utility. A.1 Entering the BIOS To enter the setup screen, follow these steps: 1. Power on the motherboard 2. Press < Delete > when the prompt appears: A.2 Main Menu...

  • Page 40: Advanced Menu

    System Language Selects the default system language. System Date Sets the date. Use Tab to switch between date elements. System Time Sets the time. Use Tab to switch between time elements. A.3 Advanced Menu Accesses CPU Configuration, Memory Configuration, System Agent (SA) Configuration, Graphics Configuration, PCI Express Configuration, USB Configuration, SATA Configuration, Onboard Device Configuration, Advance Power Management, TPM 1.2...

  • Page 41: Cpu Configuration

    NuPRO-E43 Network Stack Configuration, CSM Configuration, System Man- agement, Miscellaneous Configuration. A.3.1 CPU Configuration BIOS Setup...
  • Page 42 Hyper-threading (Appears if CPU supports Hyper Threading) Enabled for Windows and Linux (OS optimized for Hyper-Thread- ing Technology) and Disabled for other OS (OS not optimized for Hyper-Threading Technology). When Disabled only one thread per enabled core is enabled. Active Processor Cores Number of cores to be enabled in each processor package.
  • Page 43 NuPRO-E43 ® Intel Speed Shift Technology ® Enables/disables Intel Speed Shift Technology support. Enabling displays the CPPC v2 interface to allow hardware controlled P- states. ® Intel SpeedStep™ Allows more than two frequency ranges to be supported. Turbo Mode Enables/disables Turbo Mode.

  • Page 44: Memory Configuration

    TCC Activation Offset Offset from the factory TCC activation temperature. ACPI 3.0 T-States Enables/disables ACPI 3.0 T-States. Intel TXT(LT) Support Enables or Disables Intel® TXT(LT) support. A.3.2 Memory Configuration Memory Remap Enables/disables Memory Remap above 4GB. BIOS Setup...

  • Page 45: System Agent (Sa) Configuration

    NuPRO-E43 A.3.3 System Agent (SA) Configuration VT-d Enables VT-d capability Above 4GB MMIO BIOS assignment Enables/disables Memory MappedIO BIOS assignment over 4GB, disabled automatically when Aperture Size is set to 2048MB. BIOS Setup...

  • Page 46: Graphics Configuration

    A.3.4 Graphics Configuration Primary Display Sets the Primary Display from among IGFX/PEG/PCIE. Internal Graphics Keeps IGFX enabled based on the setup options. GTT Size Sets GTT size. Aperture Size Sets Aperture size. BIOS Setup...

  • Page 47: Pci Express Configuration

    NuPRO-E43 Above 4GB MMIO BIOS assignment is automatically enabled when a 2048MB aperture is set; to use, disable CSM Support. NOTE: NOTE: DVMT Pre-Allocated Sets DVMT 5.0 Pre-Allocated (Fixed) graphics memory size used by the internal graphics device. DVMT Total Gfx Mem Sets DVMT5.0 total graphic memory size used by the internal...
  • Page 48 A.3.5.1 PEG Port Configuration Peg 1 Max Link Speed Sets PEG 1 maximum speed, from among Auto, Gen1, Gen2, and Gen3. Max Payload size (Appears if a PEG 1 device is present) Sets PEG 1 maximum payload size, from Auto (Default Device Capability) or forced to 128/256 bytes.
  • Page 49 NuPRO-E43 Max Payload size (Appears if a PEG 2 device is present) Sets PEG 2 maximum payload size, from Auto (Default Device Capability) or forced to 128/256 bytes. Peg 3 Max Link Speed Sets PEG 3 maximum speed, from among Auto, Gen1, Gen2, and Gen3.

  • Page 50: Usb Configuration

    PCIe Speed Sets PCI Express port speed from among Auto, Gen1, Gen2, and Gen3. Detect Non-Compliance Device Detects non-compliant PCI Express device. If enabled, increases POST duration. A.3.6 USB Configuration BIOS Setup...
  • Page 51 NuPRO-E43 USB Precondition Presets USB host controller and root ports for faster enumeration. USB Port Disable Override Selectively enables/disables the corresponding USB port from reporting a device connection to the controller. USB3 Rear Port 1 to USB3 Rear Port 2 Enables/disables port.
  • Page 52 USB3 BOX Header B1 to USB3 BOX Header B2 Enables/disables port. USB3 BOX Header C1 to USB3 BOX Header C2 Enables/disables port. USB2 Rear Port 1 to USB2 Rear Port 2 Enables/disables port. USB2 BOX Header A1 to USB2 BOX Header A2 Enables/disables port.
  • Page 53 NuPRO-E43 XHCI Hand-off For OS without XHCI hand-off support, with XHCI ownership change claimed by XHCI driver. USB Mass Storage Driver Support Enables/disables USB Mass Storage Driver Support. USB transfer timeout Sets timeout value for Control, Bulk, and Interrupt transfers, from among 1, 5, 10, and 20 sec.

  • Page 54: Sata Configuration

    A.3.7 SATA Configuration SATA Controller(s) Enables/disables SATA Device. SATA Mode Selection Determines how SATA controller(s) operate. Alternate ID (Appears if SATA is in RAID mode) Reports alternate device ID. Aggressive LPM Support Enables PCH to aggressively enter a link power state. BIOS Setup...
  • Page 55 NuPRO-E43 SATA Controller Speed Sets the maximum speed the SATA controller can support, from among Default, Gen1, Gen2, and Gen3. Port 0 to Port 3 Enables/disables SATA port. A.3.7.1 Software Feature Mask Configuration RAID0 Enables/disables RAID0 feature. RAID1 Enables/disables RAID1 feature.

  • Page 56: Onboard Device Configuration

    RAID10 Enables/disables RAID10 feature. RAID5 Enables/disables RAID5 feature. A.3.8 Onboard Device Configuration COM1 to COM4 Enables/disables individual COM ports. COM1 Control Sets COM1 mode from among RS232, RS422, and RS485. BIOS Setup...
  • Page 57 NuPRO-E43 COM2 Control Sets COM2 mode from among RS232, RS422, and RS485. Enables/disables LPT. Device Mode Sets Printer port mode from among STD Printer Mode, SPP Mode, EPP-1.9 and SPP Mode, EPP-1.7 and SPP Mode. LAN #1 (Intel I219) Enables/disables LAN #1.
  • Page 58 A.3.8.1 Serial Port Console Redirection BIOS Setup...
  • Page 59 NuPRO-E43 Console Redirection Enables/disables console redirection. Console Redirection Settings (Depends on Console Redirection setting)) Specify how the host computer and the remote console computer (in use) exchange data. Both computers should have the same or compatible settings. COM1 Console Redirection Settings...
  • Page 60 COM2 Console Redirection Settings COM3 Console Redirection Settings BIOS Setup...
  • Page 61 NuPRO-E43 COM4 Console Redirection Settings COM (PCI) Console Redirection Settings BIOS Setup...
  • Page 62 Terminal Type Emulation:. ANSI Extended ASCII character set VT100 ASCII character set VT100+ Extends VT100 to support color, function keys, etc. UTF8 encoding maps Unicode characters onto 1 or VT-UTF8 more bytes Bits per second Sets serial port transmission speed, which must be matched on the other side, with long or noisy lines possibly requiring lower speeds, from among 9600, 19200, 38400, 57600, and 115200.
  • Page 63 NuPRO-E43 Stop Bits Indicate the end of a serial data packet (as opposed to a start bit indicating the beginning) with the standard setting 1 stop bit. Com- munication with slower devices may require more than 1 stop bit. Flow Control Can prevent data loss from buffer overflow.
  • Page 64 Redirection After BIOS POST If BootLoader is selected, legacy console redirection is disabled before booting to the legacy OS. Default is Always Enable. EMS Console Redirection Settings Out-of-Band Mgmt Port Microsoft Windows Emergency Management Services (EMS) allows remote management of Windows Server OS through a serial port, from among COM1, COM2, COM3, COM4, and COM (PCI Bus0,Dev22,Func3).

  • Page 65: Advanced Power Management

    NuPRO-E43 Bits per second Sets serial port transmission speed, which must be matched on the other side, with long or noisy lines possibly requiring lower speeds, from among 9600, 19200, 57600, and 115200. Flow Control Can prevent data loss from buffer overflow. When sending data, if the receiving buffers are full, a Stop signal stops the data flow.
  • Page 66 AT mode will not support S3 & S4. NOTE: NOTE: State After G3 Sets the state entered when power is re-applied after a power fail- ure (G3 state), from among Power On, Power Off, and Last State. RTC Wake system from S5 Enables/disables system wake on alarm event, with FixedTime waking the system at specified hr::min::sec, and DynamicTime waking the system at the current time + one minute.

  • Page 67: Tpm 1.2 Configuration

    NuPRO-E43 A.3.10 TPM 1.2 Configuration Appears if a TPM device is present. Security Device Support Enables/disables BIOS support for security device. When dis- abled, OS will not show the Security Device and TCG EFI protocol and INT1A interface will not be available.

  • Page 68: Amt Configuration

    Pending Operation Schedules an operation for the security device. The computer reboots during restart to change State of Secu- rity Device. NOTE: NOTE: A.3.11 AMT Configuration Intel AMT Enables/disables Intel® Active Management Technology BIOS Extension. While iAMT H/W is always enabled, this option controls the BIOS extension execution.

  • Page 69: Intel® Bios Guard Technology

    NuPRO-E43 BIOS Hotkey Pressed OEMFLag Bit 1: Enables/disables BIOS hotkey. A.3.12 Intel® Bios Guard Technology Intel® Bios Guard Support ® Enables/disables Intel BIOS Guard support. BIOS Setup...

  • Page 70: Network Stack Configuration

    A.3.13 Network Stack Configuration Network Stack Enables/disables UEFI Network Stack. Ipv4 PXE Support Appears if Network Stack is enabled. Enables Ipv4 PXE boot support, if disabled no IPV4 PXE boot option is created Ipv6 PXE Support Appears if Network Stack is enabled. Enables Ipv6 PXE boot support, if disabled no IPV6 PXE boot option is created.

  • Page 71: Csm Configuration

    NuPRO-E43 PXE boot wait time Appears if Network Stack is enabled. Sets wait duration to press ESC key to abort PXE boot. A.3.14 CSM Configuration CSM Support Enables/disables CSM Support. GateA20 Active UPON REQUEST to GA20 can be disabled using BIOS services.
  • Page 72 Option ROM Messages Sets display mode for Option ROM, from Force BIOS or Keep Cur- rent. Network Controls execution of UEFI and legacy PXE OpROM. Storage Controls execution of UEFI and legacy storage OpROM. Video Controls execution of UEFI and legacy video OpROM. Other PCI devices Sets OpROM execution policy for devices other than network, storage, or video.

  • Page 73: System Management

    NuPRO-E43 A.3.15 System Management A.3.15.1 Board Information BIOS Setup...
  • Page 74 A.3.15.2 Temperatures and Fan Speed BIOS Setup...
  • Page 75 NuPRO-E43 A.3.15.3 Hardware Monitor A.3.15.4 Runtime Statistics BIOS Setup...
  • Page 76 A.3.15.5 Flags A.3.15.6 Power Up BIOS Setup...
  • Page 77 NuPRO-E43 Power-Up Watchdog Enables/disables the Power-Up Watchdog, which resets the sys- tem a set time after power up. Timeout Appears if Power-Up Watchdog is enabled. Sets the time before the Power Up Watchdog resets the system, from between 24 and 65535.

  • Page 78: Miscellaneous Configuration

    Trigger Temperature From 0 to 100°C. PWM Level From 0 to 100kHz. A.3.16 Miscellaneous Configuration High Precision Timer Enables/disables High Precision Event timer. Port 80h Redirection Sets destination for Port 80h cycles, from LPC Bus or PCIE Bus. BIOS Setup...

  • Page 79: Security

    NuPRO-E43 Pcie Pll SSC Sets percentage for Pcie Pll SSC, with AUTO retaining hw default, with no BIOS override, from 0.0% to 2.0%. A.4 Security In addition to allowing supervisor/user passwords to be set, changed, or cleared, the following settings are available.

  • Page 80: Boot

    RTC Lock When enabled, bytes 38h-3Fh in the lower/upper 128-byte bank of RTC RAM are locked. BIOS Lock Enables/disables PCH BIOS Lock Enable (BLE bit). A.5 Boot Setup Prompt Timeout Sets number of seconds to wait for setup activation key, with 65535 (0xFFFF) indicating indefinite wait.
  • Page 81 NuPRO-E43 Quiet Boot Enables/disables Quiet Boot. Fast Boot Enables/disables boot with initialization of the minimal set of required devices for active boot, with no effect on BBS boot options. Boot mode select Selects boot mode from LEGACY or UEFI. Boot Options #1 to #8 Sets the system boot order.

  • Page 82: Save & Exit

    A.6 Save & Exit Discard Changes and Exit Exits system setup without saving any changes. Save Changes and Reset Resets the system after saving changes. Discard Changes Discards all changes made to any setup options. Restore Defaults Reverts to factory default values for all setup options. BIOS Setup...
  • Page 83 NuPRO-E43 Save as User Defaults Saves all changes as User Defaults. Restore User Defaults Reverts to user defaults for all setup options. Launch EFI Shell from filesystem device Initiates launch of the EFI Shell application (Shell.efi) from an available filesystem device.
  • Page 84 This page intentionally left blank. BIOS Setup...

  • Page 85: B Appendix: Watchdog Timer

    NuPRO-E43 Appendix B - Watchdog Timer The watchdog timer on the NuPro-E43 can be implemented by: Embedded Application Programming Interface (EAPI) library functions SEMA library functions Please refer to the SEMA Software Manual for detailed informa- tion: http://www.adlinktech.com/PD/web/PD_detail.php? cKind=&pid=1274 EAPI Library Sample Code Ensure the SEMA driver and application have been installed, and that, during installation, the “Install EAPI”...
  • Page 86 This page intentionally left blank. Watchdog Timer...

  • Page 87: C Appendix: System Resources

    NuPRO-E43 Appendix C - System Resources C.1 System Memory Map Address Range (hex) Size Description FFA00000 – FFFFFFFF 6 MB High BIOS Area FEE00000 – FEEFFFFF 1 MB MSI Interrupts FED50000–FED5FFFF 64kB Intel ME FED40000 –FED40FFF FED00000 – FED003FF HPET FEC80000 –...
  • Page 88 Hex Range Device 0A0, 0A1 0A4 to 0A5 0A8 to 0A9 Interrupt controller, 8259 equivalent 0AC to 0AD 0B0 to 0B1 0B2 to 0B3 Power management 0B4 to 0B5 0B8 to 0B9 Interrupt controller, 8259 equivalent 0BC to 0BD 2E8 to 2EF Serial port 4 2F8 to 2FF Serial port 2...

  • Page 89: Interrupt Request (Irq) Lines

    NuPRO-E43 C.3 Interrupt Request (IRQ) Lines C.3.1 IRQ Lines PIC Mode IRQ# Pin SERIRQ Interrupt Resource / Function Counter 0 Keyboard controller Cascade from IRQ9 PIRQA Yes Serial Port 2 (COM2) PIRQA Yes Serial Port 1 (COM1) PIRQA Yes Serial Port 3 (COM3)
  • Page 90 IRQ# Pin SERIRQ Interrupt Resource / Function Sharable Keyboard controller Cascade from IRQ9 Serial Port 2 (COM2) Serial Port 1 (COM1) Serial Port 3 (COM3) Option for configurable sources including GPIO, eSPI, internal ACPI/ PCI devices. Serial Port 4 (COM4) Real-time clock Cascade to IRQ2 Option for configurable sources...
  • Page 91 NuPRO-E43 IRQ# Pin SERIRQ Interrupt Resource / Function Sharable Option for configurable sources PIRQ[B- including internal PIRQ[B-D], GPIO, eSPI and internal ACPI/ PCI devices Option for configurable sources including internal PIRQ[E-H], GPIO, eSPI, SCI, TCO, internal ACPI/PCI devices and HPET...

  • Page 92: Pci Configuration Space Map

    C.3.3 PCI Configuration Space Map Bus Device Function Routing Description Intel Host Bridge Internal PEG X16/X8 Root Port Internal PEG X8/X4 Root Port Internal PEG X4 Root Port Intel Integrated Graphics Internal Device Internal Intel USB XHCI Controller Internal Intel Thermal Controller Internal Intel I2C Controller #0 Intel I2C Controller #1...

  • Page 93: Pci Interrupt Routing Map

    NuPRO-E43 Bus Device Function Routing Description Internal PCIE X1 SLOT 2 Internal PCIE X1 SLOT 3 Internal PCIE X1 SLOT 4 Internal PCIE To PCI Bridge(IT8892E) Internal PCI SLOT 1 Internal PCI SLOT 2 Internal PCI SLOT 3 Internal PCI SLOT 4...
  • Page 94 Description Intel SMBus Controller INTA Intel GbE Controller INTA PEG X16/X8 SLOT INTA INTB INTC INTD PEG X8/X4 SLOT INTB INTC INTD INTA PEG X4 SLOT INTC INTD INTA INTB PCIE X4/X1 SLOT 1 INTA INTB INTC INTD PCIE X1 SLOT 2 INTB INTC INTD INTA PCIE X1 SLOT 3 INTC INTD INTA INTB...

  • Page 95: Important Safety Instructions
