Assembly Instructions
2 people
This instruction booklet contains important safety information, please read and keep for future reference.
90mins
ITEM # HI60DR
1 YR LTD

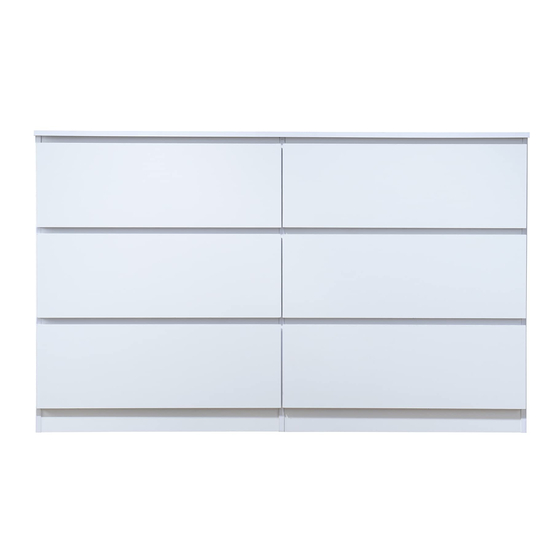

6 DRAWER DRESSER
1 Box

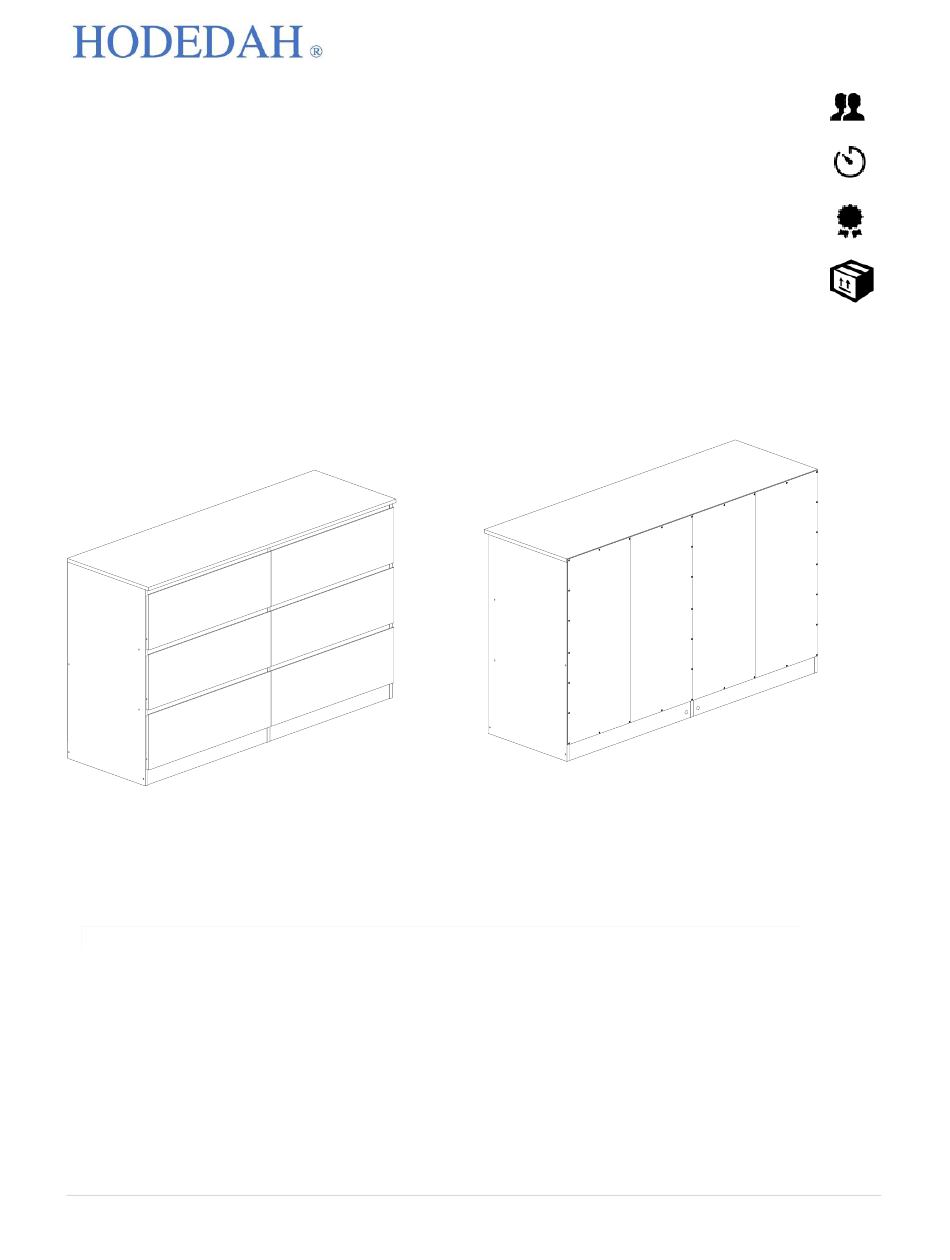

BACK VIEW
FRONT VIEW
Product Dimensions:
Height 34.05" x Width 55.11" x Depth 18.11"
Weight Capacity per drawer: 20 lbs.
1 |
P a g e
www.Hodedah.com
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Hodedah HI60DR
Summary of Contents for Hodedah HI60DR
- Page 1 Assembly Instructions 2 people This instruction booklet contains important safety information, please read and keep for future reference. 90mins ITEM # HI60DR 1 YR LTD 6 DRAWER DRESSER 1 Box BACK VIEW FRONT VIEW Product Dimensions: Height 34.05" x Width 55.11" x Depth 18.11"...
-
Page 2: Warranty
______________________________________________ WARRANTY Hodedah warrants this product to be free from defects in materials and workmanship and agrees to remedy any such defect. This warranty covers one year from the date of original purchase. This is solely limited to replacement of defective parts and no assembly for labor is included. This warranty does not apply to any product that has been improperly assembled, subjected to misuse, abuse or which has been altered or repaired in any way. -
Page 3: Product Care And Maintenance
Never push, drag or pull your furniture, to move to a new location carefully with two or more people carry the unit to its new location. Avoid extreme changes in temperature by arranging furniture away from radiators, heat and air vents and air conditioning units. P a g e www.Hodedah.com... -
Page 4: Hardware List
1. Before you throw the package, please use the Check Box to identify the parts and hardware to ensure that you have everything you need. 2. Check and measure the bolts before applying them to parts. 3. Do not completely tighten all hardware until the entire assembly is complete, unless indicated otherwise. P a g e www.Hodedah.com... -
Page 5: Parts List
Right - Drawer Drawer – Left 3Pcs 3Pcs 6Pcs Front Panel Front Panel Side Panel 691x238x15mm 691x238x15mm 350x145x15mm Drawer Base Drawer – Right Drawer End 6Pcs 6Pcs 6Pcs Side Panel Panel Supporting Panel 350x145x15mm 619x145x15mm 335x50x15mm P a g e www.Hodedah.com... - Page 6 Drawer Base Back Panel 6Pcs 4Pcs Panel 788x348.5x2.5mm 628x344x2.5mm The Breakdown… P a g e www.Hodedah.com...
- Page 7 On hardware list, you will find six bundles of drawer slide (H), left and right as shown in picture below. Left Drawer Slide(H) Flat Shaped - Left "L" Shaped - Left Right Drawer Slide(H) "L" Shaped - Right Flat Shaped - Right P a g e www.Hodedah.com...
- Page 8 Insert PVC dowels (A) to Panel 2, 3, 4, 5, 6, 7, 8, 9, 11, 12, 15 and 16's non-thru holes as shown, using hammer to gently tap them in. Non-thru holes (are small indents in the wood that show you where the screws should be.) 8x25mm Dowel 72Pcs P a g e www.Hodedah.com...
- Page 9 (H) at the predrilled holes on the panel 2 as shown. Then tighten the drawer slide (H) with 3 screws (F). M3.5x16mm Screw 18Pcs Drawer Slide 300mm - Right 3Pcs Drawer Slide 300mm - Left 3Pcs P a g e www.Hodedah.com...
- Page 10 4. Then tighten it with 3 screws (F). Right View M3.5x16mm Screw 18Pcs Drawer Slide 300mm - Right 3Pcs Drawer Slide 300mm - Left 3Pcs 10 | P a g e www.Hodedah.com...
- Page 11 Step 4 *Place 33mm myfix (C) long piece onto the holes of panel 1, 13 and 14. (You will use 24 pieces) 33mm Myfix 24Pcs 11 | P a g e www.Hodedah.com...
- Page 12 Step 5 *Attach panel 8 and 9 onto panel 10, align the position properly and slightly top them in with hammer. 12 | P a g e www.Hodedah.com...
- Page 13 *Insert 63mm myfix (B) onto the holes of panel 8 and 11 as shown *Insert the minifix (D) nuts with the cross arrow mark facing upwards and tighten it clockwise. 63mm Myfix 5Pcs Minifix 5Pcs 13 | P a g e www.Hodedah.com...
- Page 14 *Fasten screws (E) from the outside of panel 2 by using the predrilled holes to fix panel 6, 8 and 11. *Cover all the screws (E)' head with stickers (G) provided by stick up onto hole of screw (E)' heads one by one. M4x45mm Screw 5Pcs Sticker 5Pcs 14 | P a g e www.Hodedah.com...
- Page 15 Step 8 *Attach panel 4 onto panel 6, 8 and 11, align the position properly and slightly tap them in with hammer. 15 | P a g e www.Hodedah.com...
- Page 16 *Attach panel 5, 7, 9 and 12 onto panel 4, align the position properly and slightly tap them in with hammer. * Tighten minifix (D) nuts clockwise to lock minifix up to fix the panel as shown. Minifix 5Pcs 16 | P a g e www.Hodedah.com...
- Page 17 *Fasten screws (E) onto the predrilled holes of panel 3 to fix panel 7, 9 and 12. *Cover all the screws (E)' head with stickers (G) provided by stick up onto hole of screw (E)' heads one by one. M4x45mm Screw 5Pcs Sticker 5Pcs 17 | P a g e www.Hodedah.com...
- Page 18 Step 11 *Insert nails (I) protection onto the bottom edge of panel 2, 3 and 4, slightly tapping them in with a hammer. 5/8 Nail With Pin 6Pcs 18 | P a g e www.Hodedah.com...
- Page 19 * Gently tap the panel 1 to connect panel 2, panel 3 and panel 4 firmly. *Insert minifix (D) nuts into both sides predrilled holes of panel 2, 3 and 4, then tighten them clockwise in order to lock minifix up by going underneath panel 1. Minifix 6Pcs 19 | P a g e www.Hodedah.com...
- Page 20 Step 13 *Fix approximately 40 pieces of nails (J) into panel 20 using a hammer. 6/8 Power Pin 40Pcs 20 | P a g e www.Hodedah.com...
- Page 21 15 and 16 properly. (As shown) *Insert the minifix (D) nuts with the cross arrow mark facing upwards and aim to panel 15,16 and 18 's top thru holes.(As shown) Minifix 18Pcs 21 | P a g e www.Hodedah.com...
- Page 22 *Next tighten screws (E) to panel 16's upper thru holes to fix up to the panel 17. *Tighten screws (E) to panel 17's upper thru holes to fix up to the panel 18. M4x45mm Screw 30Pcs 22 | P a g e www.Hodedah.com...
- Page 23 (H). "L" shaped - left of the drawer slide stick to the end of drawer front panel 13 and 14. M3.5x16mm Screw 18Pcs Drawer Slide 300mm - Left 6Pcs 23 | P a g e www.Hodedah.com...
- Page 24 (H). "L" shaped - right of the drawer slide stick to the end of drawer front panel 13 and 14. M3.5x16mm Screw 18Pcs Drawer Slide 300mm - Right 6Pcs 24 | P a g e www.Hodedah.com...
- Page 25 *Take all drawers, and slide them (the white rollers at drawer slide at both side of drawers are to go into the track of the slide at each side panel.) All the way gently, one drawer by one drawer starting from bottom to the top accordingly. 25 | P a g e www.Hodedah.com...
- Page 26 26 | P a g e www.Hodedah.com...
- Page 27 Job Complete… Enjoy &Thank you for purchasing from Hodedah! 27 | P a g e www.Hodedah.com...
