Hodedah HIBT70-G Assembly Instructions Manual

Single bed
Hide thumbs
Table of Contents

Advertisement

Quick Links

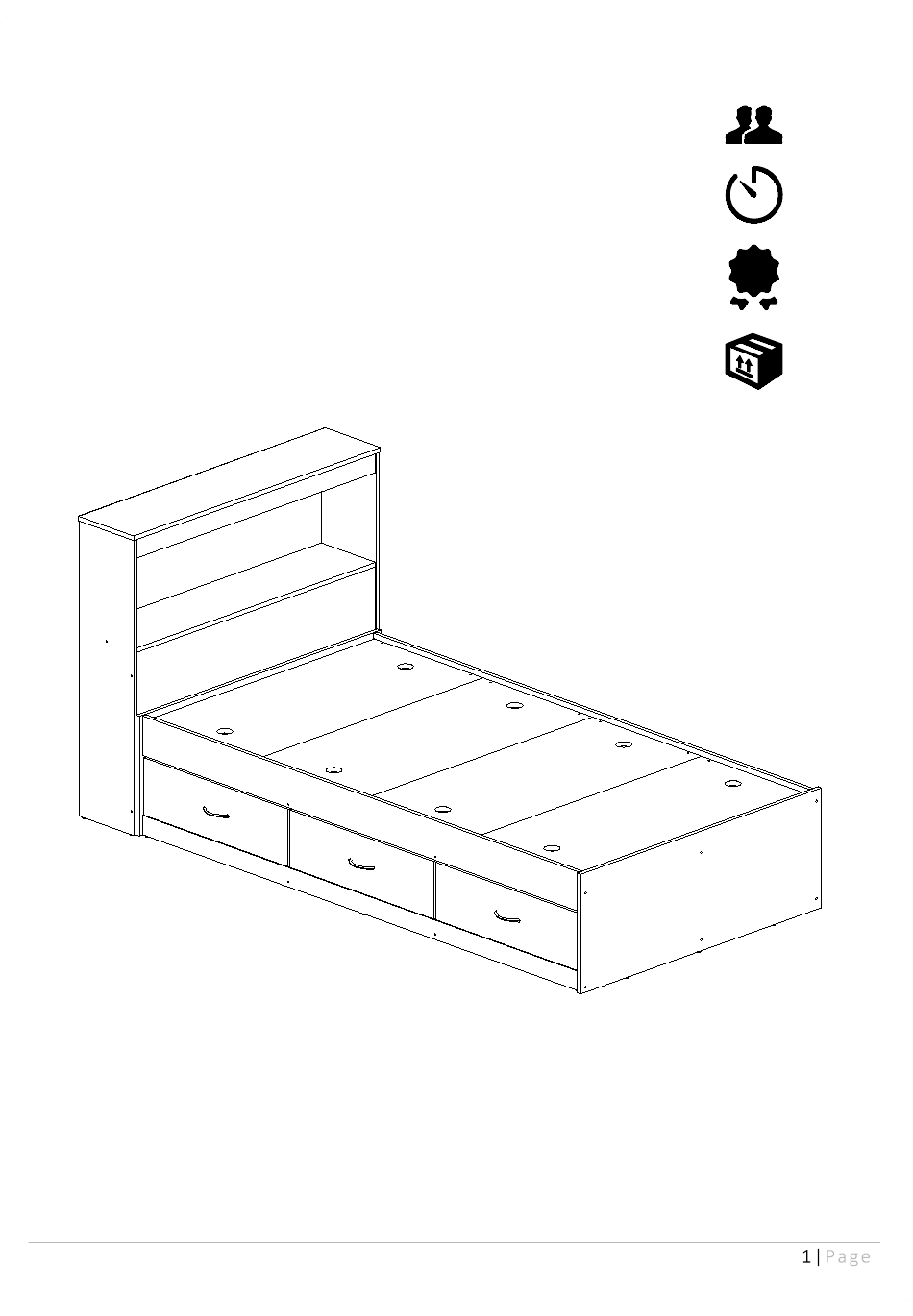

HODEDAH
Assembly Instructions
This instruction booklet contains important safety information, please read and keep for future reference.
ITEM # HIBT70-G

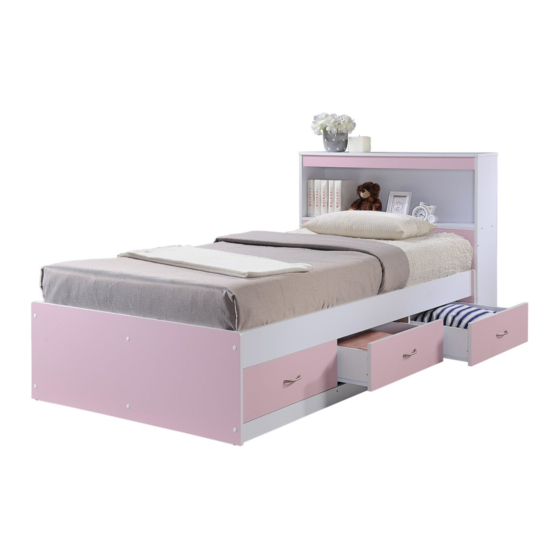

SINGLE BED
Product Dimensions: Height 39.17" x Width 42.32" x Depth 85.66"
www.Hodedah.com
®
Weight Capacity Per Drawer 20lbs
Weight Capacity Per Shelf 20lbs
2 people
120 mins
1 YR LTD
2 Boxs

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HIBT70-G and is the answer not in the manual?

Questions and answers

Related Manuals for Hodedah HIBT70-G

Summary of Contents for Hodedah HIBT70-G

  • Page 1 Assembly Instructions 2 people This instruction booklet contains important safety information, please read and keep for future reference. 120 mins ITEM # HIBT70-G SINGLE BED 1 YR LTD 2 Boxs Product Dimensions: Height 39.17" x Width 42.32" x Depth 85.66"...

  • Page 2: Warranty

    FREE of charge within ONE YEAR of purchase! WARRANTY Hodedah warrants this product to be free from defects in materials and workmanship and agrees to remedy any such defect. This warranty covers one year from the date of original purchase. This is solely limited to replacement of defective parts and no assembly for labor is included.

  • Page 3: Product Care And Maintenance

    HODEDAH ® · Never open more than one drawer at a time. · The use of tip-over restranits may reduce but not eliminate the risk of tip-over. Let's get started… Helpful hints, read before beginning assembly · Make sure you receive all boxes. If your item is packed in one box, box count will read 1 of 1, likewise if your item is packed in two boxes, box count will read 1 of 2 and second box will read 2 of 2.

  • Page 4: Hardware List

    HODEDAH ® Hardware List 58 Pcs 18 Pcs 39 Pcs Screw M4 x 32mm Pvc Dowel Screw M3.5 x 14mm *For # 13 Drawer Slides 12 Sets 12 Pcs 16 Pcs Screw M6 x 40mm Screw M6.2 x 9mm JCBC-Bolt M6x60mm...
  • Page 5 HODEDAH ® Accessories Drawer Slide - A 3 Sets * Fix On Side Panels Ⓗ , Ⓚ *Fix On Side Panels & O * Fix On Side Panels Ⓚ , Ⓞ * Fix On Drawer Side Panels Ⓣ 3 Sets...

  • Page 6: Parts List

    HODEDAH ® Parts List Headboard Left Side Headboard Stand Panel Keadboard Fixed Panel 1039 x 600 x 15mm 1039 x 237 x 15mm Panel 975 x 238 x 15mm 1 Pc 1 Pc 1 Pc Front & Back Strengthering Headboard Right Side...
  • Page 7 HODEDAH ® Parts List Center Support Right Side Panel Foot Board Panel 487 x 100 x 15mm 1905 x 392 x 15mm 1050 x 395 x 15 mm 1 Pc 1 Pc 1 Pc Mid Drawer Panel Right Drawer Panel...
  • Page 8 HODEDAH ® The Breakdown www.Hodedah.com...

  • Page 9: Pre-Assembly

    HODEDAH ® Pre - Assembly Insert the mini fix ⑨ (nuts) with the cross arrow mark A, E, P, Q, facing upward and aim to panel R, T, U & X 's top thru holes. (As shown) ( Refer page 10 ) Insert the PVC dowels ①...
  • Page 10 HODEDAH ® Pre - Assembly Pvc Dowel Mini Fix 30 Pcs. 12 Pcs. Mini Fix Nail Leg 12 Pcs. 6 Pcs. www.Hodedah.com...
  • Page 11 HODEDAH ® Pre - Assembly H ， K Place the drawer slide A ⑫ onto the 2 holes area shown at panel . Then tighten it with 2 screws ⑤ . Screw M6.2 x 9mm Pvc Dowel Nail Leg 6 Pcs.
  • Page 12 HODEDAH ® Place panel on each side of panel Assembly Of Drawers & with Panel 's PVC dowel insert to panel & 's non-thru hole and Panel & 's mini fix screws insert into Panel 's thru as shown. Then tighten mini fix on panel clockwise to lock mini fix up.
  • Page 13 HODEDAH ® Assembly Of Set A Step 1 onto Panel by inserting the dowels - Fix both panel onto the respective non-thru holes at panel - Use Allen Key ⑭ to tighten 4 screws ⑥from thru-holes of panel to non-thru hole of both panel as shown.
  • Page 14 HODEDAH ® Assembly Of Set A Step 2 - Fix panel onto panel by inserting the dowels onto the respective non-thru holes at panel - Use Allen Key ⑭ to tighten 4 screws ⑥ from thru-holes of panel non-thru hole of both panel as shown.
  • Page 15 HODEDAH ® Assembly Of Set A Step 3 - Insert 6 barrel nuts ④ to non-thru holes at Panel & as shown. - Fix panel onto panel & . Align properly by inserting the dowel of Panel & onto non-thru holes of panel - Pushing &...
  • Page 16 HODEDAH ® Assembly Of Set A Step 4 - Place 4 panels onto the middle of bed. - Insert screws ③ onto the thru holes at Panel Screw M4 x 32mm 16 Pcs. www.Hodedah.com...
  • Page 17 HODEDAH ® Assembly Of Set A Step 5 Take drawers and slide them (the white rollers at drawer slide at both side of drawers are to go into the track of the slides at each side panel.) all the way gently.
  • Page 18 HODEDAH ® Assembly Of Set B Step 1 - Fix panel onto panel by inserting the dowels onto the respective non-thru holes at panel - Fix panel onto panel & by inserting the dowels onto the respective non-thru holes at panel - Use Allen key ⑭...
  • Page 19 HODEDAH ® Assembly Of Set B Step 2 - Place panel onto panel & as shown. - Then, align the Panel properly for nailing. - Use Hammer to nail Then use hammer to nail the nails one by one and at center of 4 side edges.
  • Page 20 HODEDAH ® Assembly Of Set B Step 3 - Joint the completed set A to set B. - Insert 8 screws 3 from the inner of set B. - Cover all the screws 's head with the PVC cap provided by pushing the cover's stem onto the hole of screw head one by one.

  • Page 21: Job Complete

    HODEDAH ® Job Complete Enjoy & Thank you for purchasing from Hodedah! In the interest of our environment please dispose of all packaging thoughtfully. www.Hodedah.com...
