HODEDAH
Assembly Instructions
This instruction booklet contains important safety information, please read and keep for future reference.
ITEM # HI 690-G (MOP)
ENTRY WAY ACCENT TABLE

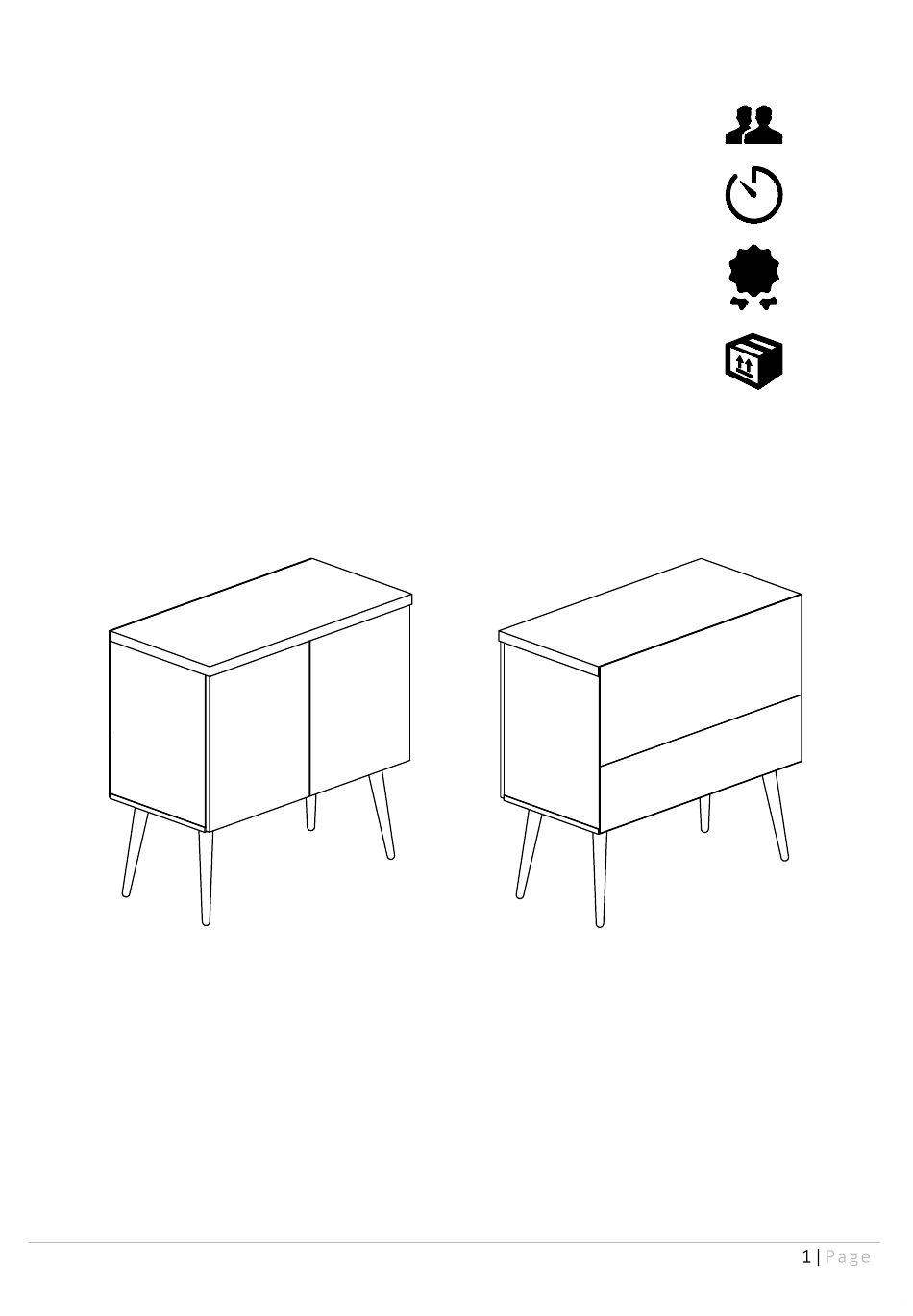

FRONT VIEW
Product Dimensions: Height 28" x Width 32" x Depth 16"
www.Hodedah.com
®
Weight Capacity Per Shelf 25lbs
BACK VIEW
2 people
90 mins
1 YR LTD
1 Box
