Ppp > Power-On Configuration; Ppp > Modem Commands - Multitech MTCBA-C-EN-N1 User Manual

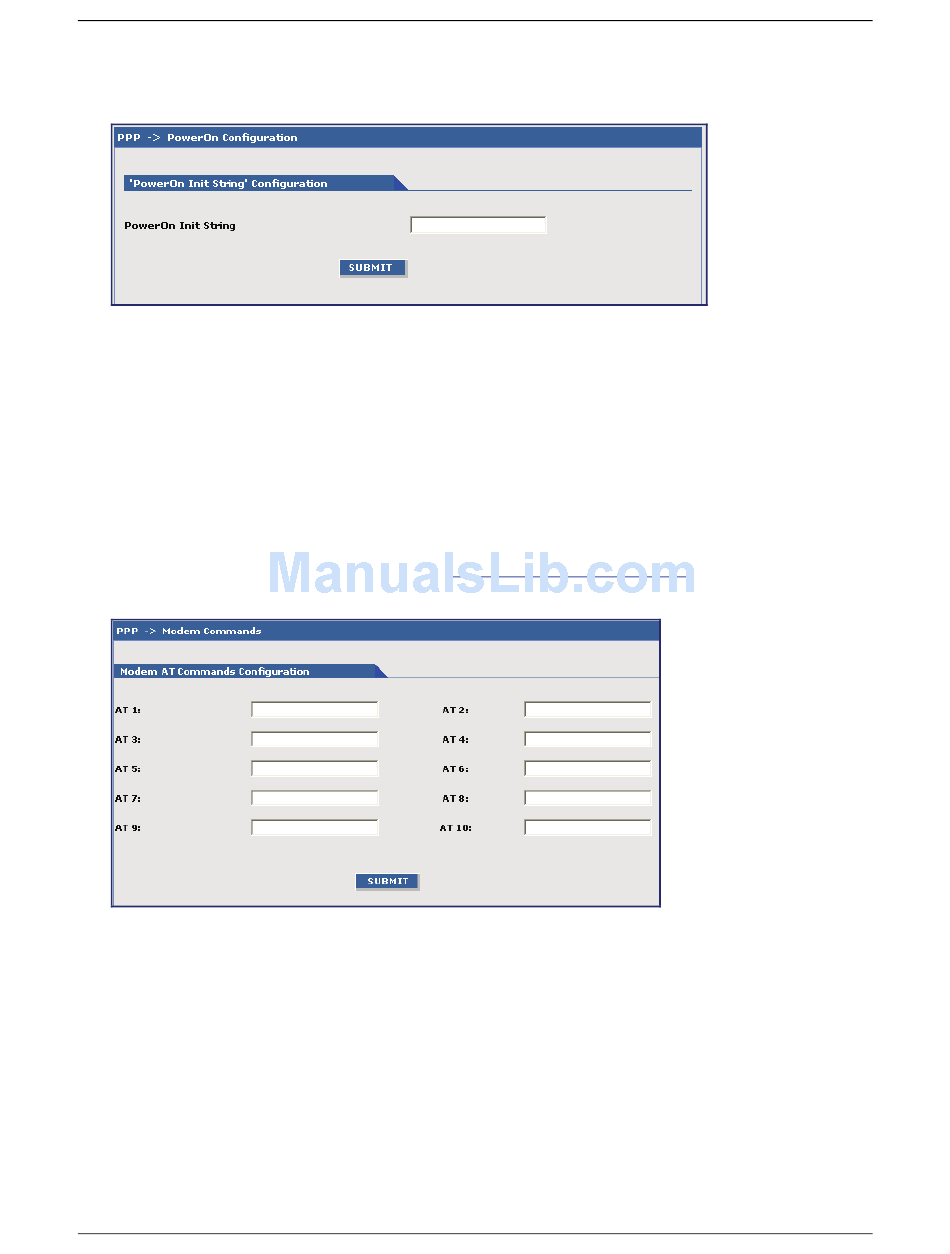

PPP > Power-On Configuration
The Power-On Configuration feature allows you to set an initialization string that will be sent to the modem upon boot
up.
Power-On Init String Configuration
Power-On Init String:
Submit:
PPP > Modem Commands
Setting up certain modem commands will allow an external application to query modem information (based on the
commands entered). The application can use the URL
is currently assigned to the wireless modem after the PPP connection is established. It also will show the results of up
to ten AT commands entered here.
These commands will be sent every time a PPP connection to the network is initiated.
Example of Useful GPRS AT Commands:
AT+CGSN
AT+CGMR
AT+CNUM
AT+COPS?
AT+CREG?
AT+CSQ
Notes:
•
You can also retrieve the modem information without using a browser:
Make a TCP connection to port 80 (same as the Web Admin port) and send data as:
Then press Enter twice.
• See the GPRS AT Command Reference Guide (Number S000293x) for other commands.
Multi-Tech Systems, Inc. MultiModem Wireless Modem with Ethernet Interface (S000375F)
You can enter a string of 0 to 40 characters that will be sent to the modem upon
boot up. All commands will initialize before you proceed with regular PPP related
activity.
When no initialization string is configured, regular functionality of the modem
Note:
is retained.
Click the SUBMIT button to save this setting.
You must click Save and Restart once you have completed and submitted
Note:
all the screens on which you have made changes.
Product Serial Number
Software Version
Wireless Subscriber Number
Network Information (Operator)
Network Registration
Signal Quality
GET /atinfor.html HTTP/1.1
Chapter 3 – Using the Web Management Software
HTTP://192.168.2.1/modeminfo.html to get the IP address that
34
