Page 1: Multimodem Cdma

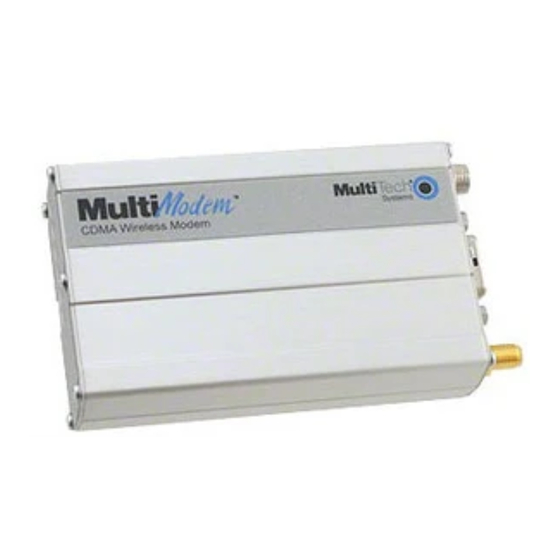

® MultiModem CDMA Cellular Modem MTCBA-C1X User Guide... - Page 2 Copyright and Technical Support MultiModem® CDMA User Guide Cellular Modem MTCBA-C1X S000492B, Revision B This publication may not be reproduced, in whole or in part, without prior expressed written permission from Multi-Tech Systems, Inc. All rights reserved. Copyright © 2010 by Multi-Tech Systems, Inc.
-
Page 3: Table Of Contents
Table of Contents Contents Chapter 1 – Product Description and Specifications ............ 4 Product Description ..............................4 Features ..................................4 Related Documentation ............................4 Safety ..................................5 General Safety ..................................5 RF Interference Issues ................................5 Vehicle Safety ..................................5 Maintenance of the Cellular MultiModem .......................... -
Page 4: Chapter 1 - Product Description And Specifications
Two-year warranty Related Documentation AT Commands: The MultiModem MTCBA-C1X cellular modem is configured using the CDMA AT Commands. These commands are documented in the Reference Guide for the MultiModem CDMA Modems, document number S000478x. Multi-Tech Systems, Inc. MultiModem CDMA User Guide... -
Page 5: Safety
Chapter 1 – Product Description and Specifications Safety General Safety The modem is designed for and intended to be used in fixed and mobile applications. “Fixed” means that the device is physically secured at one location and is not able to be easily moved to another location. “Mobile” means that the device is designed to be used in other than fixed locations. -
Page 6: Front Panel
Chapter 1 – Product Description and Specification Front Panel The front panel is designed with LEDs that display modem activity. The LEDs display modem activity, such as transmit and receive data, carrier detection, link status, terminal ready indicating connection to the pc, and the power indicator. LEDs LED Indicators Transmit Data. -
Page 7: Specifications
Chapter 1 – Product Description and Specifications Specifications General Specifications Standards CDMA2000 1xRTT operation Band, Frequency Dual-band 800/1900 MHz CDMA; 800 MHz or 800/1900 MHZ with R-UIM support Packet Data Up to 153K bps forward and reverse Circuit Switched Data IS-95-A, IS-95B up to 14.4K bps forward and reverse Short Message Services –... -
Page 8: Cellular Information
Chapter 1 – Product Description and Specification Cellular Information Antenna System for Cellular Devices The cellular performance is completely dependent on the implementation and antenna design. The integration of the antenna system into the product is a critical part of the design process; therefore, it is essential to consider it early so the performance is not compromised. -
Page 9: Chapter 2 - Installation
Connect the power supply to its source (for example, in a mobile situation, to the vehicle’s DC fuse/terminal block). Powering Down and Hardware Resetting a MTCBA-C1X Modem It is recommended to follow the following shutdown sequence, when possible, prior to a hardware reset or turning off of power to the modem. -
Page 10: Optional Mounting
Chapter 2 - Installation Optional Mounting Before you mount your modem to a permanent surface, ensure that you have a strong enough (average) signal, refer to Verify Signal Strength in Chapter 3. Once you have verified that you have a good signal, you can panel mount your modem with the screws spaced according to the measurement shown below. -
Page 11: Install The Modem Driver
Chapter 2 - Installation Install the Modem Driver The cellular modem is compatible with Windows 7, Vista, XP, 2003 Server, and 2008 Server (32-bit or 64-bit). Linux does not require a driver for serial modems. Windows operating systems require a modem driver to be installed in your computer’s program directory. The Windows driver is located on your MultiModem product CD. - Page 12 Chapter 2 - Installation On the Install New Modem screen, click Don’t detect my modem, I will select it from a list. Then click Next >. On the Install New Modem screen, click the Have Disk button to browse to the driver file on the MultiModem CD. Make sure that the MultiModem CD is inserted into your CD-ROM.
- Page 13 Browse to your MultiModem CD and select Drivers/Windows Drivers. Then select MTSWireless file. On Install New Modem screen, scroll down the list of modems and select MultiTech – CDMA Modem. Once you have selected your model, click on Next>. Multi-Tech Systems, Inc. MultiModem CDMA User Guide...
- Page 14 Chapter 2 - Installation Choose which com port to connect your MultiModem to. If you know exactly which port your modem is on, click on that port; other wise, choose COM2 (most common). Click Next >. To finish the install, click on Finish. You have now successfully installed the MultiModem.
-
Page 15: Chapter 3 - Using Your Cellular Modem
Chapter 3 – Using Your Cellular Modem Account Activation for Wireless Devices Please refer to Multi-Tech’s Cellular Activation Web site at http://www.multitech.com/activation.go for information on activating your cellular modem. Verify Signal Strength Before you mount your modem to a permanent surface, ensure that you have a strong enough (average) signal. - Page 16 Chapter 3 – Using your Cellular Modem On the Connection Availability screen, specify if this connection is for anyone’s use or for your use only by checking the appropriate button. Choose your preference, and then click Next>. On the Internet Account Information screen, type the user name and the password for your account. In many cases, a user name and a password are not required, but some cellular providers require it.
-
Page 17: Appendix A - Regulatory Compliance
Appendix A – Regulatory Compliance EMC, Safety, and R&TTE Directive Compliance The CE mark is affixed to this product to confirm compliance with the following European Community Directives: Council Directive 2004/108/EC of 31 December 2004 on the approximation of the laws of Member States relating to electromagnetic compatibility;...
