General Configuration
The system date and time display in these formats: DD/MM/YYYY / HH:MM:SS. SNTP Client
Date and Time:
must be enabled and you must have a live Internet connection for the date and time to display correctly.
IP Configuration
Enter the following addresses for the Ethernet interface.
IP Address (Default = 192.168.2.1), Mask (Default 255.255.255.0), Default Gateway (Default 0.0.0.0),
Primary DNS (Default 0.0.0.0), Secondary DNS (Default 0.0.0.0).
See Appendix A – Table of Commonly Supported Subnets.
Note:
Auto Dialout Configuration
Check the box to enable/disable Auto Dialout. Default = Enable.
Auto Dialout:
Check the box to enable/disable raw mode for an Auto Dialout session. Default = Disable.
Raw Dialout:
Auto Dialout Login:
Auto Dialout Port:
Handle EIA Signal:
duration) used between different electronic devices.
Enter the time in seconds that the auto dialout session will stay active before going inactive.
Inactivity:
Syslog Configuration
Check the box to enable or disable Syslog. Default = Disable.
Syslog:
Syslog Server IP Address:
remote Syslog.
Auto Discovery
Auto Discovery:
Address, IP Address, and DHCP information to the configured server port. Default = Enable.
Enter the Server Port Number. Default port is 1020.
Server Port:
Broadcast Timer:
broadcasting. Default is 10 seconds.
Auto Reboot Timer Configuration
Auto Reboot Timer:
deactivates the timer. Range is 0 to 999.
Telnet Configuration
Enables/Disables the Telnet port. The default is Enable.
Submit Button
Click the Submit button to save these settings.
completed and submitted all the screens on which you have made changes.

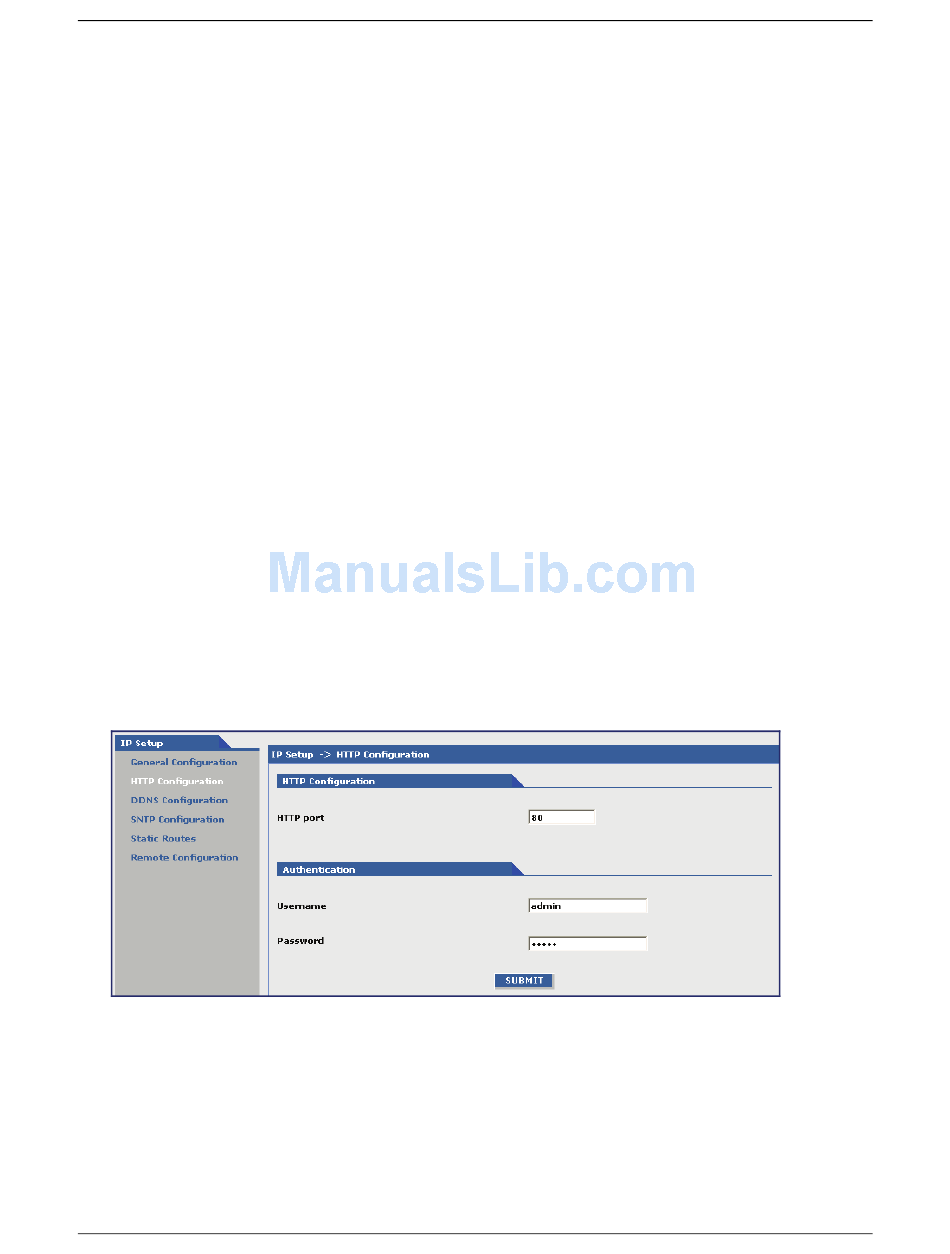

IP Setup > HTTP Configuration
HTTP Configuration
Enter the port number on which the HTTP server will listen for requests. Default is 80.
HTTP Port:
Authentication
Enter the User Name that can access to the Web Management software. Default is admin.
User Name:
Enter the Password for access to the Web Management software. Default is admin.
Password:
You should change the password to one of your choosing. It can be up to 12 characters. Use a safe
Note:
password. Your first name spelled backwards is not a sufficiently safe password; a password such as xfT35$4
is better.
Submit Button
Click the Submit button to save these settings.
completed and submitted all the screens on which you have made changes.
Multi-Tech Systems, Inc. MultiModem Wireless Modem with Ethernet Interface (S000375F)
Check the box to enable or disable Auto Dialout Login feature. Default = Enable.
Enter the serial Auto Dialout Port number. Default = 5000.
Check the box to enable/disable the EIA standard signal characteristics (time and
If a Remote Syslog Server IP Address is specified, the syslog feature acts as a
Check the box to enable or disable Auto Discovery to broadcast (MAC level), the MAC
Enter the amount of time in seconds for the auto-discovery packet granularity of periodic
Enter the number of hours to lapse between each automatic reboot. The default of zero
Chapter 3 – Using the Web Management Software
You must click Save and Restart once you have
Note:
You must click Save and Restart once you have
Note:
