  • Page 1 Zeus2 Glass Helm Installation Manual ENGLISH bandg.com...
  • Page 3 Reorient or relocate the receiving antenna • Increase the separation between the equipment and receiver Zeus2 Glass Helm Installation Manual...
  • Page 4 Broadband Sonar are trademarks of Navico, registered in the US and other countries About this manual This manual is a reference guide for installing the B&G Zeus2 Glass Helm system. The manual does not cover basic background information about how equipment such as radars, echosounders and AIS work.

  • Page 5: Table Of Contents

    Autopilot setup Fuel setup CZone setup NMEA 0183 setup Ethernet setup Software updates and data backup Accessories Glass Helm accessories NMEA 2000 compliant data cables Ethernet cables Supported data NMEA 2000 compliant PGN List Contents | Zeus2 Glass Helm Installation Manual...
  • Page 6 NMEA 0183 supported sentences Specifi cations Dimensioned drawings Contents | Zeus2 Glass Helm Installation Manual...

  • Page 7: Included Items

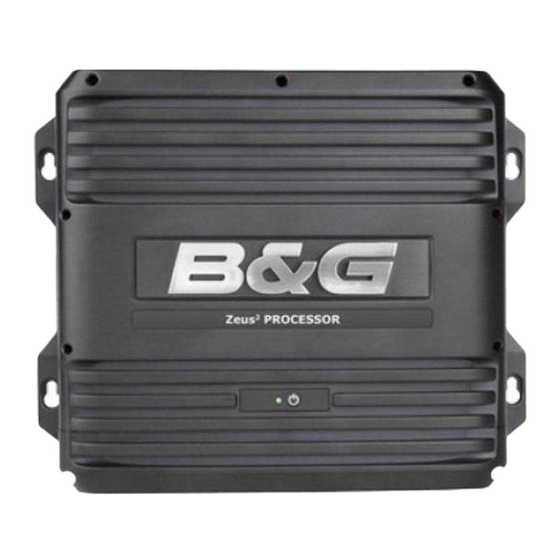

    Zeus2 Glass Helm overview The Zeus2 Glass Helm features two fast quad core processors, and dual monitor outputs to drive two displays with independant information. Connectivity options for data are broad, with an internal ethernet switch with three ports, NMEA 0183 transmit and receive ports, and a connection point for a NMEA 2000 compliant data bus.

  • Page 8: Zeus2 Glass Helm Processor

    Ethernet Network ports with PoE (2x) Ethernet Network port (1x) Video Input BNC sockets (2x) NMEA 2000 data port NMEA 0183 & RS422 (2x) Power connector USB ports (2x) HDMI sockets (2x) SD Card slot Zeus2 Glass Helm overview | Zeus2 Glass Helm Installation Manual...

  • Page 9: Zc1 Controller (Not Included)

    (and Radar STBY if applicable) STBY AUTO : Autopilot Auto steer / Stand-By Alphanumeric keypad: Used for entering numbers and text in dialog boxes Zeus2 Glass Helm overview | Zeus2 Glass Helm Installation Manual...

  • Page 10: Hardware Installation

    STBY/AUTO key is required during commissioning. Fixed keypads also off er more accurate control in rough operating conditions. Ensure the ZC1 is conveniently located within easy reach of helm seating or standing position. Hardware installation | Zeus2 Glass Helm Installation Manual...

  • Page 11: Wiring

    Power Control connection (yellow wire) Planning is required how you want to be able to turn on and off the Zeus2 Glass Helm and connected compatible devices. The yellow Power Control wire on the Zeus2 Glass Helm processor power cable can either be an input that will turn on the processor when power is applied, or an output that turns on other devices when the processor is powered on.
  • Page 12 In the diagram above, if the left Zeus2 Glass Helm processor turns on using the power button and is set as the Power Control Master, it will output voltage on the Power Control bus to power on the other Zeus2 Glass Helm pocessor, the Radar Interface, and the SonicHub.

  • Page 13: External Alarm

    If the left Zeus2 Glass Helm processor (Power Control Master) is off , the right processor can be turned on using its own power button, but won’t turn on any other devices.

  • Page 14: Connecting Monitors

    Connecting control devices The Zeus2 Glass Helm can be controlled with a ZC1 keypad, a USB keyboard and mouse, or by 1 or 2 Touch screens. If a mixed system is run, with one touch and one non-touch screen, a ZC1 or mouse and keyboard will also be required to control the display without touch.
  • Page 15 If a USB chart card reader is used, the keyboard and mouse will have to share a single USB port via a passive USB hub.  Note: In order to control both monitors connected to the Zeus2 Glass Helm system, the USB ports must be confi gured to suit. See “USB switching” on page 20. | 13...

  • Page 16: Nmea 2000 / Simnet

    NMEA 2000 / SimNet Device connection The Zeus2 Glass Helm processors are equiped with an NMEA 2000 data port, which allows the receiving and sharing of a multitude of data from various sources. Essential network information • The standardised physical cables/connectors for NMEA 2000 are ‘Micro-C’ and ‘Mini-C’, directly derived from the automation industy’s ‘DeviceNET’...

  • Page 17: Nmea 0183 Device Connection

    Micro-C terminator (one male, one female) NMEA 0183 device connection The Zeus2 Glass Helm processor has two 2-way NMEA 0183 ports, which are connected via two discrete cables. Each cable is dedicated to one of the two internal processors. Both the baud rate (up to 38,400 baud) and sentences output by the Zeus2 processor, can be confi gured.

  • Page 18: Ethernet Device Connection

    Connecting to more than three devices If connecting more than three devices to a Zeus2 Glass Helm processor , a network expansion Port (NEP-2) must be used. If the connected device has its own additional ports, (eg LSS-2) these ports may be used instead.

  • Page 19: Czone Connection To Nmea 2000

     Note camera cables are not supplied, and will need to be selected to suit termination - BNC at the Zeus2 Glass Helm processor, and typically BNC or RCA plug at the camera end.  Note camera power is externally supplied, see camera installation instructions for require- ments.

  • Page 20: Software Setup

    The scrollable left column of icons access most settings that require confi guration; First time startup When the Zeus2 Glass Helm is started for the fi rst time, or after a factory default, the unit will raise prompts requesting the user to select some fundamental setup options;...

  • Page 21: Time And Date

    Select ‘Display Assignment’ seperately on both displays connected.  Note: This feature is dependant on both the Zeus2 processor and the ZM series monitor be- ing connected to a NMEA 2000 network. | 19...

  • Page 22: Usb Switching

    (This will only include products set to Group mode.) In order to enable group selection, the display must be set to ‘Default’ group. 20 | Software setup | Zeus2 Glass Helm Installation Manual...

  • Page 23: Device List

    The device list shows the physical and virtual devices that provide data. This may include a module inside the Zeus2 Glass Helm, the NMEA 0183 port, or any external NMEA 2000 device. Selecting a device in this list will bring up additional details and actions: All devices allow allocation of an instance number via the Confi gure option.

  • Page 24: Diagnostics

    If only one sonar source is present in the network, selection is not required as it should be picked up automatically. However when more than one source exists (eg a BSM-2 or other display with internal sonar), select the desired source in the Echo Settings. 22 | Software setup | Zeus2 Glass Helm Installation Manual...
  • Page 25 Calibration range: -9.9° - +9.9°. Default is 0°.  Note: Water temperature calibration only appears if the transducer is temperature capable. Check transducer type selection if this option should be available. | 23 Software setup | Zeus2 Glass Helm Installation Manual...

  • Page 26: Radar Setup

     Note: This procedure must be performed with only one radar on the network, and only ap- plies where a network combines Zues Touch with Zeus2 Glass Helm. Adjust bearing alignment This is to align with the heading marker on the screen with the center line of the vessel, this will compensate for any slight misalignment of the scanner during installation.

  • Page 27: Video In Confi Guration

    Mirror image may be applied where the camera is providing a rear view, and the user wishes to see objects as they would appear in a vehicle rearview mirror, ie, on the same side as they actually are. | 25 Software setup | Zeus2 Glass Helm Installation Manual...

  • Page 28: Autopilot Setup

    Failure in setting up the autopilot correctly may prohibit the autopilot from functioning properly. If a Zeus2 Glass Helm is added to an existing, already commissioned autopilot system, it is only required to do an automatic source selection before the autopilot is ready to be used.
  • Page 29 Refer to the drive unit table in the AC12N/AC42N Installation manual or to your drive unit documentation for information. Warning: Selection of improper voltage level for your drive unit may damage both the drive unit and the AC12N/AC42N even if the protection circuits are activated. | 27 Software setup | Zeus2 Glass Helm Installation Manual...
  • Page 30  Note: Calibration must be made on the compass that is active for the autopilot. If the com- pass is not possible to initiate calibration from the device list on the Zeus2 Glass Helm, refer to 28 | Software setup |...
  • Page 31 Autotune is not required for the autopilot to function, as it is preset with steering parameters that should steer most boats in the 30-50 foot range. | 29 Software setup | Zeus2 Glass Helm Installation Manual...
  • Page 32 On some boats however, or in particular sea conditions, fi ne tuning of the steering parameters may improve the performance of the autopilot. Transition speed Refer previous description. 30 | Software setup | Zeus2 Glass Helm Installation Manual...
  • Page 33 You can select diff erent minimum wind angles for port and starboard. The diff erence between port and starboard will be taken into account when calculating the Distance To Turn (DTT). | 31 Software setup | Zeus2 Glass Helm Installation Manual...

  • Page 34: Fuel Setup

    This parameter defi nes the maximum course change that the autopilot is allowed to make when the Zeus2 Glass Helm is following a route (NAV steering). If the required course change to the next waypoint in a route is more than the set limit, you are prompted and must acknowledge the course change before the autopilot will turn the vessel.
  • Page 35 A maximum of 5 tanks is supported using Fluid Level devices.  Note: Tank data that is output by a compatible engine gateway can also be displayed, however tank confi guration for such a data source is not possible via the Zeus2 Glass Helm displays. | 33...

  • Page 36: Czone Setup

    BEP Marine Ltd, and associated CZone distributors. The Zeus2 Glass Helm system provides a means to load the Confi g fi le, as well as apply updates to module fi rmware, removing the need to take a laptop computer aboard the vessel.

  • Page 37: Nmea 0183 Setup

    Receive waypoint Select this option to allow device capable of creating and exporting waypoints via NMEA 0183 to transfer directly to the Zeus2 Glass Helm. Baud rate This should be set to correspond with devices connected to the NMEA 0183 input and output.

  • Page 38: Ethernet Setup

    No special setup is required for establishing an ethernet network, it is all ‘plug and play’ . An NEP-2 connected between an Zeus2 Glass Helm and another network module (e.g. BSM-1) will automatically start working, and relay data between the two devices.
  • Page 39 B&G technical support. Wifi setup The Zeus2 Glass Helm can be viewed and controlled via an Android or Apple tablet, using the WiFi1 module and GoFree application. Various 3rd party applications can also use the data stream.
  • Page 40 DHCP servers. To make it easy to fi nd all DHCP servers on a network, dhcp_probe may be run from the Zeus2. . Only one DHCP device may be operational on the same network at a time. If a second device is found, turn off it’s DHCP feature if possible.

  • Page 41: Software Updates And Data Backup

    The Zeus2 Glass Helm may be used to apply software updates to itself, and to supported NMEA 2000 and ethernet devices, with fi les read off an SD card. Before initiating an update to the Zeus2 Glass Helm itself, be sure to back up any potentially valuable user data.

  • Page 42: Accessories

    Ethernet cable yellow 5 Pin 2 m (6.5 ft) 000-0127-29 Ethernet cable yellow 5 Pin 4.5 m (15 ft) 000-0127-30 Ethernet cable yellow 5 Pin 7.7 m (25 ft) 000-0127-37 Ethernet cable yellow 5 Pin 15.2 m (50 ft) 40 | Accessories | Zeus2 Glass Helm Installation Manual...

  • Page 43: Supported Data

    Time & Date 129038 AIS Class A Position Report 129039 AIS Class B Position Report 129040 AIS Class B Extended Position Report 129283 Cross Track Error 129284 Navigation Data 129539 GNSS DOPs | 41 Supported data | Zeus2 Glass Helm Installation Manual...
  • Page 44 Fuel Used - High Reolution 130834 Engine and Tank Confi guration 130835 SetEngineAndTankConfi guration 130838 Fluid Level Warning 130839 Pressure Insect Confi guration 130843 Sonar Status, Frequency and DSP Voltage 42 | Supported data | Zeus2 Glass Helm Installation Manual...
  • Page 45 130836 Fluid Level Insect Confi guration 130837 Fuel Flow Turbine Confi guration 130839 Pressure Insect Confi guration 130845 Weather and Fish Prediction and Barometric Pressure History 130850 Evinrude Engine Warnings | 43 Supported data | Zeus2 Glass Helm Installation Manual...
  • Page 46 Echo Receive Transmit Compass Receive Transmit Wind Receive Transmit AIS / DSC Receive AIS sentences are not bridged to or from NMEA 2000. MARPA Transmit These are only output sentences 44 | Supported data | Zeus2 Glass Helm Installation Manual...
  • Page 47 4800, 9600, 19200, & 38400 (via proprietary cable) RS422 port baud rate 1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200 Charting support Embedded low detail backround + Insight, Navionics and CMap on SD card | 45 Specifi cations | Zeus2 Glass Helm Installation Manual...
  • Page 48 Dimensioned drawings 281 mm (11.05”) 66 mm (2.58”) 265 mm (10.42”) 46 | Dimensioned drawings | Zeus2 Glass Helm Installation Manual...
