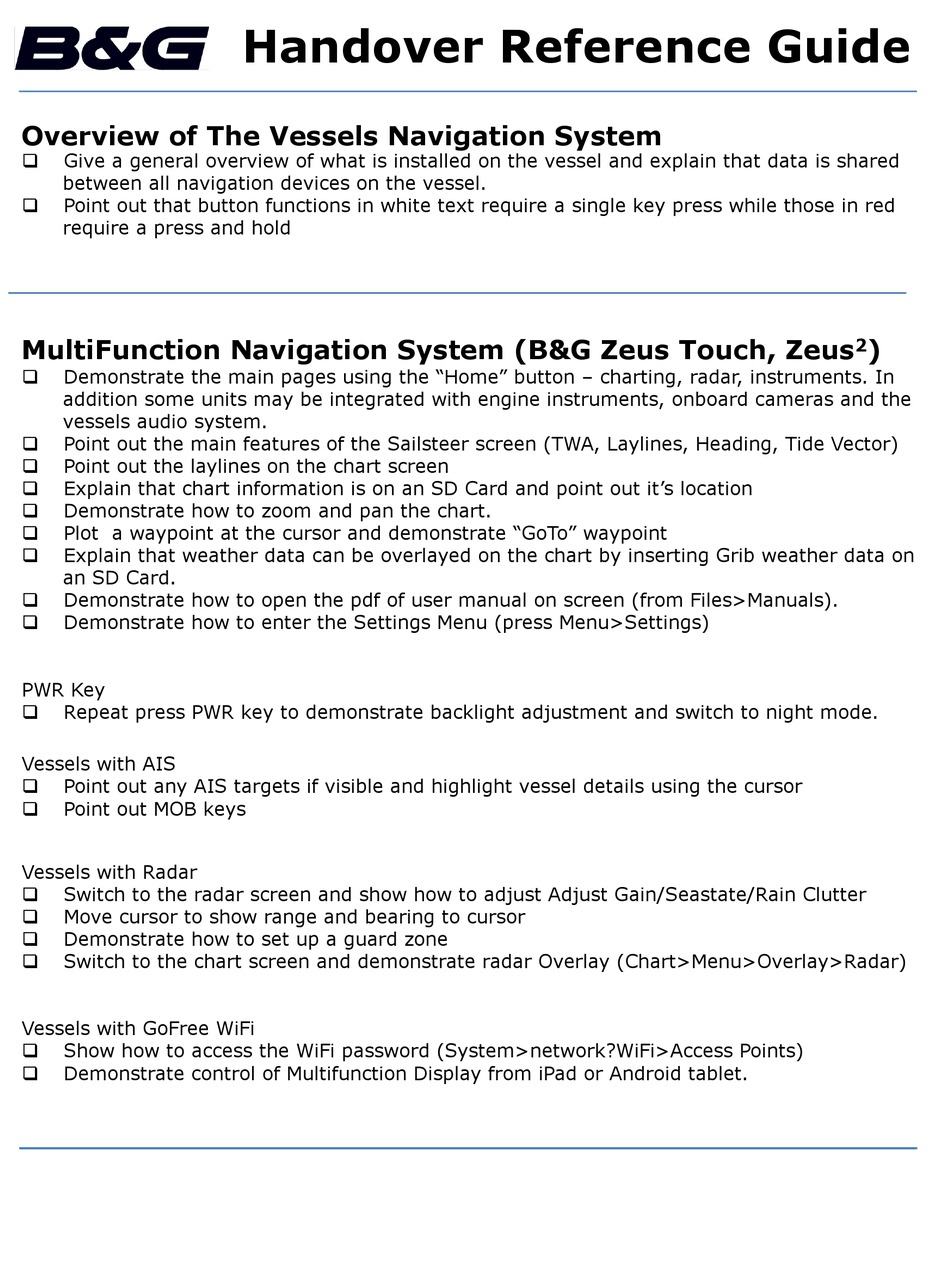

B&G Zeus Touch Handover Reference Manual

Overview of The Vessels Navigation System

Give a general overview of what is installed on the vessel and explain that data is shared
q
between all navigation devices on the vessel.
Point out that button functions in white text require a single key press while those in red
q
require a press and hold
MultiFunction Navigation System (B&G Zeus Touch, Zeus
Demonstrate the main pages using the "Home" button – charting, radar, instruments. In
q
addition some units may be integrated with engine instruments, onboard cameras and the
vessels audio system.
Point out the main features of the Sailsteer screen (TWA, Laylines, Heading, Tide Vector)
q
Point out the laylines on the chart screen
q
Explain that chart information is on an SD Card and point out it's location
q
Demonstrate how to zoom and pan the chart.
q
Plot a waypoint at the cursor and demonstrate "GoTo" waypoint
q
Explain that weather data can be overlayed on the chart by inserting Grib weather data on
q
an SD Card.
Demonstrate how to open the pdf of user manual on screen (from Files>Manuals).
q
Demonstrate how to enter the Settings Menu (press Menu>Settings)
q
PWR Key
Repeat press PWR key to demonstrate backlight adjustment and switch to night mode.
q

Vessels with AIS

Point out any AIS targets if visible and highlight vessel details using the cursor
q
Point out MOB keys
q

Vessels with Radar

Switch to the radar screen and show how to adjust Adjust Gain/Seastate/Rain Clutter
q
Move cursor to show range and bearing to cursor
q
Demonstrate how to set up a guard zone
q
Switch to the chart screen and demonstrate radar Overlay (Chart>Menu>Overlay>Radar)
q

Vessels with GoFree WiFi

Show how to access the WiFi password (System>network?WiFi>Access Points)
q
Demonstrate control of Multifunction Display from iPad or Android tablet.
q
Handover Reference Guide
