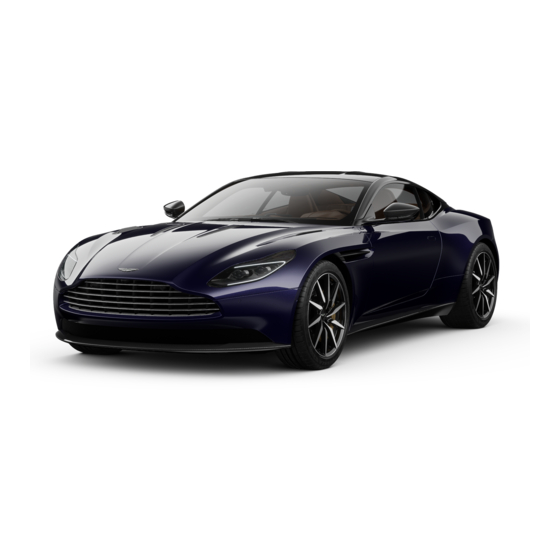

Page 2 Welcome Airbag Warning Labels Welcome to your new Aston Martin DB11. This Owner’s Handbook has been designed to explain the Warning: Extreme Hazard: NEVER use a rearward facing vehicle’s operation and to make the control of its systems easy to child restraint on a seat protected by an ACTIVE AIRBAG in understand and operate.
Page 3 Vehicle Identification Component Location The Vehicle Identification Number (VIN) is shown in the left side bottom corner of the windscreen. All directions for locating components are described as viewed from the driver’s seat, i.e. the fuel filler flap shown on this diagram will be described as ‘located at the rear right side of the vehicle’.
Page 4 National Highway Traffic Safety Administration vehicle's systems performed. The EDR is designed to record data (NHTSA) in addition to notifying Aston Martin Lagonda of North related to vehicle dynamics and safety systems for a short period America Inc., 9920 Irvine Center Drive, Irvine, CA 92618, USA.
Page 5 Health Driving Safety CALIFORNIA Proposition 65 • Always wear your seat belt. • Never drive under the influence of alcohol or drugs. Warning: Engine exhaust, some of its constituents, and • Always obey all speed and traffic laws and regulations. Never certain vehicle components contain or emit chemicals drive faster than the posted speed limit or than conditions known to the State of California to cause cancer, and birth...
Page 6 Aston Martin Owners' Club (AMOC) An invitation to join the Aston Martin Owners' Club The sporting spirit of the 1930s exists today in one of the world’s most exclusive car clubs. Enthusiasts in nearly 60 countries are united by an interest in iconic cars with an enviable pedigree.
Page 7 The Aston Martin Heritage Trust is an educational charity dedicated to the preservation, promotion and enhancement of over 100 years of history of Aston Martin. Its world class collection comprising the automotive museum, substantial archive and collection of historical artefacts is housed in the magnificently restored Grade II* listed barn in Oxfordshire which it shares with the Owners' Club.
Page 8 Satellite Navigation ..............9 Aston Martin Dealer for further information. Vehicle Settings..............10 © Copyright Aston Martin Lagonda Limited, 2020. All Rights Convertible Roof ..............11 Reserved. This publication is provided with your vehicle for your Maintenance and Technical Data ......... 12 personal, private and non-commercial use.
Page 9 Produced by the Technical Publications Department Aston Martin Lagonda Limited Banbury Road Gaydon Warwick CV35 0DB England Telephone: +44 (0)1926 644300 Issue 1: April 2020 Part Number: MY53-19A321-HA Barcodes conform to AML specification AMES000043...
Page 11 Quick Start Vehicle Key ................. 1.2 Driving Position..............1.3 Vehicle Controls ..............1.6 Infotainment ..............1.11...
Page 12: Vehicle Key
Vehicle Key Global Close What Do The Buttons On The Key Do? (Refer to ’Vehicle Key’, page 2.2) Press and hold to unlock all vehicle doors and open all windows. Press and hold to lock all doors and close all windows. Volante: Global close will also open or close the convertible roof.
Page 13: Driving Position
Driving Position How Do I Adjust The Seat? [1] BOLSTER/LUMBAR ADJUSTMENT SELECTOR SWITCH (OPTIONAL): Press the switch up to select lumbar adjustment. (Refer to ’Seat Adjustment’, page 3.2) Press down to select bolster adjustment. [2] BOLSTER/LUMBAR ADJUSTMENT: Use the directional pad to adjust the position of the lumbar or bolster support.
Page 14 What Do The Door Switches Do? How Do I Get To The Back Seats? Pull the release strap (A) to release the seat back. Pull and hold to move the rear of the seat forward. [A] DOOR MIRROR SELECTOR: Press to select left or right door mirror (Refer to ’Exterior Mirrors’, page 3.7).
Page 15 How Do I Adjust The Steering Column? How Do I Use The Memory Positions? (Refer to ’Steering Column’, page 3.8) (Refer to ’How Do I Use The Memory Positions?’, page 1.5). The reach and tilt angle of the steering column are adjusted by Setting a Position using the adjustment lever.
Page 16: Vehicle Controls
Vehicle Controls What Do The Centre Stack Switches Do? [3] HEATING AND COOLING CONTROLS: Operates the climate controls (Refer to ’Centre Stack Climate (Refer to ’Centre Stack Controls’, page 4.5) Controls’, page 6.2). [4] INFOTAINMENT CONTROLS: Operate the various infotainment controls. (Refer to ’Multimedia Controls’, page 8.4) (Refer to ’Hands-Free Controls’, page 7.2) (Refer to ’Navigation Controls’, page 9.3)
Page 17 What Does The Control Dial Do? [1] CONTROL DIAL: Use to navigate through menus in the infotainment system. Press Control Dial (shown with optional Touch Pad) down to confirm a selection (referred to as ENTER throughout this handbook). [2] TOUCH PAD: Touch sensitive pad which can be used to navigate menus in the infotainment system.
Page 18 What Are The Steering Wheel Controls? [1] ADAPTIVE DAMPING: Press to cycle adaptive damping modes (Refer to ’Adaptive Switches Damping’, page 5.16). [2] START VOICE CONTROL: Press to start voice control (Refer to ’Voice Control’, page 4.14). [3] MENU HOME: Press to open the instrument cluster menu (Refer to ’Instrument Cluster Menu’, page 4.11).
Page 19 [6] CALL: Transmission Paddles Press to answer an incoming call (Refer to ’Calls’, page Pull back on either paddle to enter Touchtronic mode (Refer to 7.5). ’Touchtronic Mode’, page 5.7). [7] MENU BACK: Press to take the instrument cluster menu back one level. [8] HORN: Push to sound the vehicle horn.
Page 20 What Do The Stalks Control? Wiper Controls Indicators and Headlamp Beam Rotate the wipe speed selector (A) to select a wipe speed. [1] : Windscreen wipers OFF [2] : Intermittent wipe (low rain sensor sensitivity) Main Beam [3] : Intermittent wipe (high rain sensor sensitivity) Push the stalk for main beam headlamps.
Page 21: Infotainment
Infotainment How Do I Turn On The Exterior Lamps? How Do I Activate The Vehicle Bluetooth? Bluetooth® must be activate on both the vehicle and the mobile device to be used. Before a Bluetooth® device can be used with the vehicle Bluetooth®, the vehicle's Bluetooth®...
Page 22 Bluetooth® devices in its range. Select Aston Martin DB11 from the device list. If Aston Martin DB11 does not show, check that Bluetooth is active in the infotainment system and search again. Follow the instructions shown on the phone and the infotainment display to pair the phone.
Page 23 How Do I Operate The Media System? [1] DISC SLOT: Slot to insert a CD or DVD disc. [2] EJECT: Press to eject disc. [3] MEDIA: Opens the Media screen (Refer to ’Media’, page 8.9). Opens the media source list if media screen is already open. [4] VOLUME CONTROLS: Press to increase and to decrease volume.
Page 24 How Do I Pair A Bluetooth Audio Device How Do I Change The Media Source? (Refer to ’Bluetooth Connection’, page 8.16) Press or select Media from the main menu to show the Bluetooth® audio must be paired to the vehicle available media sources.
Page 25 What Can I Listen To? Portable Media Audio Radio Press on the centre stack or select Media from the main (Refer to ’Radio’, page 8.5) menu to open the media Now Playing screen. The Now Playing screen shows track information such as album Press on the centre stack or select Radio from the main art, artist and album name on the left side of the screen along...
Page 26 What Can I Watch? How Do I Set A Navigation Destination? Portable Media Video (Refer to ’Destination’, page 9.10) Video files from portable media can also be supported with the Press or select Nav to open the Navigation screen. infotainment system. In the Now Playing screen, highlight the Select Destination from the lower information bar and select view window area and press ENTER.
Page 27: Table Of Contents
Vehicle Security Vehicle Key ................. 2.2 Unlocking and Opening ............2.5 Emergency Access and Start..........2.11 Anti-Theft Systems............. 2.14 Homelink® Wireless Control..........2.16...
Page 28: Vehicle Key
If a vehicle key is lost, contact your Aston Martin Dealer. If the vehicle key is not in the vehicle, the message 'Key Not Found' will be displayed in the instrument cluster when trying to start the vehicle.
Page 29 One Step Unlocking Vehicle Key Battery The vehicle key can be set to either unlock only the drivers door Warning: The vehicle key contains a small cell battery. Do not ingest or swallow the battery. If the battery is swallowed, on a single press of or all vehicle doors.
Page 30 Battery Replacement 2. Push down on the battery to tilt the battery (B) and allow access. To replace the vehicle key's battery: 1. Lift the battery cover (A). 3. Remove the battery and install the new battery with the (+) sign facing up.
Page 31: Unlocking And Opening
Unlocking and Opening Keyless Go Zones Unlocking From Outside the Vehicle The Keyless Go function for vehicle locking and ignition will Using The Vehicle Key operate when a vehicle key is inside the vehicle cabin or in one Stand within 5 m (16 ft) of the vehicle, and press .
Page 32 Automatic Locking Using Keyless Entry To unlock the vehicle with keyless-entry active, fully push at point If the vehicle is unlocked but a door is not opened within 40 (A) and open the door handle. The front edge of the door handle seconds, the vehicle will automatically lock and arm again.
Page 33 Interior Lock Switches Automatic Locking Feature The doors can be locked and unlocked by using the master The central locking can be set to automatically activate once the vehicle speed exceeds 3 km/h (2 mph). unlock (1) and lock (2) switches. The automatic locking feature can be activated or deactivated by pressing and holding either the master lock or unlock buttons.
Page 34 Easy Entry/Exit Deck Lid The Easy Entry/Exit function could cause an occupant to The luggage compartment can become very warm when the become trapped and/or cause injury. Keep clear of the vehicle is parked in diirect sunlight for extended periods steering wheel when the Easy Entry/Exit function is used.
Page 35 Opening The Deck Lid Outside the Vehicle Opening the Deck Lid Inside the Vehicle Press and hold the deck lid release button (B). The deck lid catch Press and hold (A) on the vehicle key to enable the release will release. Lift the lid. catch and lift the deck lid.
Page 36 Hands-Free Access Hands-free access can be used to release the catch for the deck lid. To operate, quickly move your foot under the rear bumper. Warning: Make sure there is sufficient clearance under For the hands-free access system to operate: the rear of the vehicle and that you stand on firm ground.
Page 37: Emergency Access And Start
The key(s) must be removed from the luggage If the emergency key is lost, contact your Aston Martin compartment before the deck lid can be locked. If a second key Dealer.
Page 38 Emergency Deck Lid Release Open the door handle and insert the emergency key in the door lock and turn clockwise. Only that door will be unlocked. If the The deck lid can be opened from inside the luggage security system was armed, the alarm will start. To stop the alarm compartment by pulling the luminous emergency release handle insert the vehicle key (even if the vehicle key has lost all power) (A).
Page 39 Emergency Engine Start 3. Move the armrest back to at least position "1" (Refer to ’Powered Storage Box’, page 3.31)to expose the cup If the keyless start system fails to start the vehicle, the engine can holders and the emergency ignition cover. be started with the emergency start system.
Page 40: Anti-Theft Systems
If the keyless ignition system fails, contact your Aston Martin Dealer. If the emergency ignition is used to start the vehicle, the START button is disabled.
Page 41 Alarm Interior Motion Sensor When the alarm has started a siren will be heard for a 25 seconds When the vehicle is locked and armed, the interior motion sensor cycle (ten cycles maximum) and the direction indicators flash will sense movement inside the vehicle. If movement is detected it will start the alarm.
Page 42: Homelink® Wireless Control
For information or assistance, contact your Aston Martin Dealer. or damage as the garage door or gate will operate during the programming.
Page 43 Programming FCC Warning: This device complies with FCC rules part 15 and Industry Canada RSS-210. Operation is subject to the Step 1 will clear previously programmed devices and is only following two conditions: (1) This device may not cause necessary if programming HomeLink for the first time or when harmful interference, and (2) This device must accept any erasing all existing programming.
Page 44 2. Press the HomeLink button you want to program. the 4. Press and hold the remote control button until the HomeLink symbol should begin to slowly flash orange. HomeLink symbol turns to either rapidly flashing or continuously green. 3. Press and hold the remote control for the device to be programmed at a distance of 20 mm to 200 mm (1"...
Page 45 Operation 5. Press the newly programmed HomeLink button. • If the symbol stays constantly green, programming is The vehicle should be within the operating range of the device complete and your device should operate when the and the ignition should be ON. HomeLink button is used.
Page 46 Reprogramming To program a new device, press and hold the desired HomeLink button for 20 seconds until the LED starts flashing slowly. That button may now be programmed to work with a different device. If you do not complete programming the new device, the previous device will still be programmed to that button.
Page 47 Before Driving Checks Before Driving ............3.2 Seat Adjustment ..............3.2 Windows................3.5 Mirrors ................3.6 Steering Column ..............3.8 Memory Functions .............. 3.9 Occupant Restraint System..........3.10 Child Safety............... 3.18 Child Seat Installation ............3.24 Storage................3.30 Variable Load Space............3.33 Accessory Sockets..............
Page 48: Checks Before Driving
Checks Before Driving Seat Adjustment Inspect your vehicle to make sure that everything is according to Front seats only. the information and specifications in this Owner’s Guide. Warning: Do not adjust the drivers seat whilst driving. Outside the Vehicle: The seats can also be adjusted: •...
Page 49 Seat Controls [1] LUMBAR/BOLSTER ADJUSTMENT SELECTOR SWITCH: Press the switch up to select lumbar adjustment. Press down to The ignition must be on before the lumbar and bolster select bolster adjustment support can be operated. [2] LUMBAR/BOLSTER ADJUSTMENT: Use the directional pad to adjust the position of the lumbar or bolster support [3] SEAT POSITION ADJUST: Seat forward/backward and height adjust.
Page 50 Seat Back Release The driver and front passenger seats include non-adjustable head restraints, which limit the rearward travel of the head in a rear Caution: Make sure that the headrest for the seat does not impact and may reduce whip lash injuries. When sitting in the hit the sun visor.
Page 51: Windows
Windows Press or pull past resistance on the window switch to perform a Warning: Misuse of the window switches, especially by one-touch movement down or up. children, can result in injury due to entrapment in the window closure. Drivers must advise all passengers of the possible danger and make sure that all obstructions are clear before raising the window.
Page 52: Mirrors
Mirrors Interior Mirrors Door Sealing Warning: Make sure that all passengers are clear when the window mechanism is operating. To minimize wind noise and to make sure that the window seal is watertight, a door sealing system is used to provide a tight fit of the door glass to the seals around the top of the door opening.
Page 53 Exterior Mirrors Heated Mirrors The heated door mirrors will operate when the heated rear To adjust the exterior mirrors press the mirror switch (A) left or window is switched on. right to select a side to adjust. Move the direction pad (B) up, down, left or right to adjust the selected mirror.
Page 54: Steering Column
Steering Column Adjustment Heated Steering Wheel The ignition must be on before the heated steering wheel can Warning: Do not adjust the steering column whilst be operated. driving. To set the steering wheel heating to on, rotate the end of the The steering column can be adjusted with the ignition set to adjustment stalk twoards you.
Page 55: Memory Functions
Memory Functions Setting a Memory Position Warning: Make sure that there is nothing in the movement path of the seat or the steering column during adjustment that could cause obstruction. Warning: To avoid injury, make sure that children do not play with the memory position switches.
Page 56: Occupant Restraint System
Occupant Restraint System To Save A Memory Position The system provides protection to the driver and all passengers in a variety of impact conditions. Warning: Do not attempt to adjust the driver's seat whilst The system consists of: driving. • Driver and front passenger safety belts with dual pre- Adjust the seat, steering column and the exterior rear view tensioners and load limiting systems.
Page 57 (crash If either of these conditions occur, even intermittently, have the severity, belt usage, etc.) were not appropriate to operate these restraint system serviced at your Aston Martin Dealer safety devices. immediately. Unless serviced, the system may not operate Front airbags are designed to operate only in frontal and near- correctly in the event of a collision.
Page 58 Aston Martin Dealer. Warning: Be sure that you and your passengers always fasten their seat belts and use them correctly even though airbags are provided.
Page 59 Pre-tensioner and Load Limiting Warning: No modifications or additions should be made by the user which will either prevent seat belt adjusting Front seat belts are equipped with dual pre-tensioners and load devices from operating, or prevent seat belt assembly from limiting systems.
Page 60 Seat Belt Fastening Pull out the seat belt, drawing the buckle over the shoulder and across the chest. When parked on an incline, the seat belt may lock as it is withdrawn. This is not a fault. If the mechanism locks, release the belt tension and then pull the belt very gently to avoid operation of the inertia lock.
Page 61 Pull upwards on the diagonal belt to make sure that the latching Seat Belt Unfastening is secure and to remove all slack from the belt. Push the button on the buckle. While holding the seat belt Check that the lap belt is installed snugly, low down across the buckle, allow the belt to slowly retract to its stored position.
Page 62 Airbags The side airbags (D) located in the front seats and the curtain airbag (E), located in the roof trim or door , only deploy The purpose of the airbags is to provide additional protection for according to which side has been impacted in a serious side the driver and passengers in the event of a serious impact (front collision.
Page 63 Airbag Deployment Warning: The use of accessory seat covers may prevent the deployment of the seat side airbags and increase the risk of injury in an accident. Do not use accessory seat covers. Warning: All passengers, including the driver, should always wear seat belts, whether or not an airbag is provided, to decrease the risk of injury or death in the event of a crash.
Page 64: Child Safety
Child Safety Airbags inflate rapidly and with considerable force; there is Aston Martin strongly recommends: therefore a risk of death or serious injury such as fractures, facial • That all children are sat in the rear passenger seats. and eye injuries or internal injuries, particularly to passengers •...
Page 65 Your vehicle has the following devices for the installation of child Warning: Accident statistics show that children are restraints: generally safer when correctly restrained in the rear seat than in the front seat. A suitable child restraint, correctly • Front passenger seat with Occupant Classification System installed and used, provides the highest degree of protection (OCS) and top tether (Refer to ’Occupant Classification for infants and small children in most accident situations.
Page 66 Warning Labels Occupant Classification System The Occupant Classification System (OCS) is part of Occupant Warning: Extreme Hazard: NEVER use a rearward facing restraints Control (ORC) System and operates in addition to the child restraint on a seat protected by an ACTIVE AIRBAG in restraints system.
Page 67 CRS listed in FMVSS 208 material, must be inspected by an Aston Martin Dealer. The If the airbag is set to off, the PASS AIRBAG status symbol will also system must also be checked for corrected functionality.
Page 68 Warning: Use only approved cleaning materials to clean Warning: Do not put shopping bags on the passenger the vehicle interior surfaces. Solvents or other incorrect seat. A large amount of liquid, such as bottled water, can cleaning products on the surface where the sensor is located cause the OCS to incorrectly classify the capacitance as a (under the leather of the cushion) can damage the sensor.
Page 69 Do not attempt to repair or service the system. Take the vehicle the PASS AIRBAG symbol is , it is possible that the person is immediately to the nearest Aston Martin Dealer. not sitting correctly in the seat. 3.23 Before Driving...
Page 70: Child Seat Installation
Child Seat Installation Front Child Seat Installation Top Tether Information Warning: An infant or child that is not properly restrained Warning: Even with the advanced restraints system, can be seriously injured or killed in a crash. Seat belts are children aged 12 and under should be correctly restrained in designed for adults and larger children;...
Page 71 ALR Operation Front Passenger Seat Installation Gently pull out the seat belt until fully extended. The ALR system To install a child seat to the front seat using the seat belt, use the will only engage at the maximum extension point of the seat belt. procedure that follows: Thread the belt tongue through the child seat as per the child seat 1.
Page 72 Rear Child Seat Installation Top Tether The tether anchor point for the passenger seat is located at the The rear seats for this vehicle use a Child Restraint Anchor System rear base of the passenger seat. Move the seat forward to access (CRAS).
Page 73 This CRAS anchors are located between the seat base and the Remove the lower seat back panel (A). seat back. The position of the anchors is shown by two tags at the base of each rear seat. The seat back trim panels are left and right handed. Following the child seat manufacturer's instructions to secure the child seat using the CRAS anchors (B).
Page 74 Top Tether Remove the cover for the tether anchor (B) The tether anchor point for the rear passenger seat is located behind the top of the rear seats. The covers for the anchors are embossed with the tether anchor symbol. Engage the tether clip to the anchor point at the top of the parcel shelf (C) and make sure that the locking spring has fully closed to prevent accidental disengagement.
Page 75 Front Passenger Seat Position 2. Move the base of the seat to its highest position. When a child seat is installed to the rear seat using CRAS, you must move the seat directly in front of the child seat depending on the size seat being installed.
Page 76: Storage
Storage Door Pockets Front Trinket Tray Both front doors have door pockets. There is a small trinket tray below the centre console for small item storage. Do not use the door pocket to store items that could easily fall out when the door is opened, such as mobile phones or Do not store any items in the trinket tray that may cover the wallets.
Page 77 Powered Storage Box Position 1 (Cup Holders) Position 1 for the powered storage box gives access to a storage Pull the storage box switch (A) back to move the arm rest back tray with two cup holders. Press to open and close the cup from position 0 (closed) to position 1 (cup holders) or position 2 holders.
Page 78 Position 2 (Storage Tray) Warning: Only use the cup holder when safe to do so. Position 2 for the powered storage box gives access to a large Warning: Do not place hot drinks in the cup holder while storage area, as well as an SD card port, two USB ports and a 12V the vehicle is in motion.
Page 79: Variable Load Space
Variable Load Space Accessory Sockets (Volante Only) Warning: Only connect accessories which are designed This vehicle has a variable load space device installed that, when for use in a motor vehicle with a 12V electrical system. The the convertible roof is raised, increases the available luggage electrical system could become damaged if there is more capacity.
Page 80 Ashtray and Cigar Lighter (Optional) Warning: The cigar lighter will be very hot when in use. Always hold the cigar lighter by the handle and always make sure that the cigar lighter is out of reach of children. Never leave children unattended in a vehicle that has a cigar lighter.
Page 81 Controls Instrument Display .............. 4.2 Centre Stack Controls ............4.5 Steering Wheel Controls ............ 4.10 Instrument Cluster Menu ........... 4.11 Voice Control ..............4.14 Wiper Controls..............4.15 Lighting Controls ............... 4.15...
Page 82: Instrument Display
A warning message will also show in the right systems test and then turn off. If it does not come on, or if it instrument cluster window. Contact your Aston Martin Dealer as comes on and stays on, or if it comes on whilst driving, the soon as possible.
Page 83 Consult your Aston This symbol shows there is a fault with the EPAS system. Consult Martin Dealer as soon as possible your Aston Martin Dealer as soon as possible. [10] ABS: [7] MALFUNCTION INDICATION LAMP:...
Page 84 Instrument Cluster Overview [4] INSTRUMENT CLUSTER MENU: Shows an auxiliary screen for a number of vehicle functions (Refer to ’Instrument Cluster Menu’, page 4.11). Warning messages will also appear in the right side of the instrument cluster. [5] CLOCK: Shows the time. [6] DRIVE MODE SETTING: Shows which drive mode the vehicle is in (Refer to ’Drive Modes’, page 5.10).
Page 85: Centre Stack Controls
Centre Stack Controls [3] HEATING AND COOLING CONTROLS: Controls to operate the heating and ventilation controls (Refer to ’Centre Stack Climate Controls’, page 6.2). [4] INFOTAINMENT CONTROLS: Press to operate media controls (Refer to ’Multimedia Controls’, page 8.4), hands-free phone system (Refer to ’Hands-Free Controls’, page 7.2)and satellite navigation (Refer to ’Navigation Controls’, page 9.3).
Page 86 Control Dial [1] CONTROL DIAL: Use to navigate through menus in the infotainment system. Press Control Dial (with optional Touch Pad) down to confirm a selection (referred to as ENTER throughout this handbook). [2] TOUCH PAD: (Optional) Touch sensitive pad which can be used to navigate menus in the infotainment system.
Page 87 Touch Pad To press ENTER press down on the surface of the touch pad. (Optional) Touch Pad ON/OFF To activate the TOUCH PAD navigate to the Vehicle Settings menu and open the System Settings menu (Refer to ’System Settings’, page 10.3). Select Activate Touch Pad to activate the TOUCH PAD.
Page 88 Quick Access Menu Rotary Controls To open the Quick Access menu, use two fingers and swipe up The touch pad can also be used to operate rotational controls. Use two fingers to rotate as shown. or press The Quick Access menu will then show an overview window either: •...
Page 89 Zoom Handwriting Recognition Pinch together to zoom out, or swipe apart to zoom in. Where text needs to be entered, such as writing a text message, characters can be 'written' using the touch pad. To begin handwriting recognition, press ENTER on the touch pad. To enter characters, trace the outline on the surface of the touch pad.
Page 90: Steering Wheel Controls
Steering Wheel Controls [1] ADAPTIVE DAMPING: Press to cycle adaptive damping modes (Refer to ’Adaptive Damping’, page 5.16). [2] START VOICE CONTROL: Press to start voice control (Refer to ’Voice Control’, page 4.14). [3] MENU HOME: Press to open the instrument cluster menu (Refer to ’Instrument Cluster Menu’, page 4.11).
Page 91: Instrument Cluster Menu
Instrument Cluster Menu [7] MENU BACK: Press to go back one level in the instrument cluster menu. [8] HORN: Push to sound the vehicle horn. [9] END VOICE CONTROL: End voice control. [10] END CALL: Press to end a call or reject an incoming call. [11] VOLUME DIAL: Roll the volume scroll wheel up or down to increase or decrease volume for the audio system, or volume during a phone call.
Page 92 Trip Use the button (A) to open the menu home screen. Scroll The trip menu will show journey information about the vehicle. through the available options with the menu scroll wheel (B) and From the trip menu select: select an item by pressing the scroll wheel button (referred to in •...
Page 93 Navigation Service Shows the next turn if a route has been set. If no route has been The service menu shows information on vehicle. Select from: set, shows direction of travel. • Messages: Radio Show any stored warning messages. • Tire Pressure: Shows the selected radio station.
Page 94: Voice Control
Voice Control Individualisation Individualisation is a function that can help refine the Voice Control system to your own voice. To begin individualisation, navigate to Vehicle on the main menu and select System Settings on the lower information bar. Select Voice Control and select Individualisation.
Page 95: Wiper Controls
Wiper Controls Lighting Controls Exterior lamps Master Lamp Switch Turn the dial to the required light setting. Press the fog lamp button to operate the rear fog lamp. Rotate the wipe speed selector (A) to select a wipe speed. [1] : Windscreen wipers OFF [2] : Intermittent wipe (low rain sensor sensitivity) [3] : Intermittent wipe (high rain sensor sensitivity) [4] : Continuous wipe (slow)
Page 96 Automatic Headlamp Mode Stalk Controls If ambient light fades, headlamps, side marker, rear and registration plate lamps will switch ON automatically. If ambient light then increases, headlamps, side marker, rear and registration plate lamps will automatically switch OFF. Automatic lamps are market specific. The automatic headlamp function features an internal timer that starts when the lamps are turned on.
Page 97 Interior Lamps Hazard lamps The hazard warning lamps will continue to operate if the Instrument Illumination ignition is switched off. During the daylight hours the level of instrument brightness defaults to maximum brightness. During the twilight and night Press the hazard warning lamp button (A) to set the hazard time hours, a twilight sensor located at the top of the windscreen warning lamps to on.
Page 98 Reading Lamps Two reading lamps are located in the front header trim. To operate the lamps (on or off) touch the reading lamp bezel (A). Unless set to off or on they will continue to operate up to six minutes after the ignition is set to off. An additional rear reading lamp can be found in the centre of the rear header.
Page 99 Driving Driving Techniques ............. 5.2 How To Start The Engine............. 5.4 Transmission Controls............5.5 Cruise Control ..............5.8 Drive Modes ..............5.10 Blind Spot Assist ..............5.12 Adaptive Damping ............5.16 Brakes ................5.17 Electronic Stability Program (ESP)........5.22 Tire Pressure Monitoring System (TPMS)......5.25 Eco Driving Features............
Page 100: Driving Techniques
To make sure that you have a safe and enjoyable Performance driving courses are available to enable you to fully entry into this new phase of Aston Martin motoring, please take understand the control functions of your vehicle and also the time to safely acquire the necessary new driving skills.
Page 101 Wet Conditions Driving Through Deep Water When driving in wet conditions, water can build up under your If in any doubt whether to drive through deep water, always take tires so that they ride on a layer of water. This is called the side of caution to avoid potentially costly damage to the aquaplaning or hydroplaning.
Page 102: How To Start The Engine
How To Start The Engine Warning: The engine can be started by any person in the Caution: Make sure the park brake is applied and the vehicle if the brake pedal is pressed down. Care should be transmission is in PARK (P). taken that the vehicle is not left unattended with the key This will prevent the vehicle from moving once the engine is present and occupants such as young children inside.
Page 103: Transmission Controls
Transmission Controls Automatic Mode The automatic transmission has two main driver modes: • Automatic Mode: In Automatic mode, gearshifts are made using the Park, Reverse, Transmission is controlled automatically without driver input. Neutral and Drive (PRND) buttons mounted on the centre stack. •...
Page 104 [1] P (PARK): Press and release to select Park when the vehicle is stationary. The transmission will mechanically lock. Caution: Always make sure that the park brake is ON. This will help to make sure the vehicle will not roll. It is not possible to select Park above 2 km/h.
Page 105 Touchtronic Mode P (Park) and R (Reverse) are selected with the PRND buttons. [1] : Downshift Paddle In Touchtronic mode, gears are selected by using the paddles located behind the steering wheel. Reverse and Park are selected [2] : Upshift Paddle by using the PRND buttons.
Page 106: Cruise Control
Cruise Control Gear Shift Indicator Warning: Only use cruise control if road and traffic The centre message window shows the current gear selected with conditions are appropriate for maintaining a steady speed an up arrow to indicate when a gear change should take place to for a prolonged period.
Page 107 Operation Resuming the Set Speed Cruise control can be used to maintain a selected vehicle speed Set speed should only be resumed if the driver is aware of without having to use the accelerator. the set speed and intends to return to it. Cruise control only operates at speeds above 18 mph.
Page 108: Drive Modes
Drive Modes Vehicle driving characteristics, such as gear changes and throttle The selected mode will be shown in the right instrument cluster response, can be changed by selecting different drive modes. window (B). Three drive modes are available. Press the S button (A) to cycle Drive modes operate independently of Electronic Stability between: Program (ESP) and Adaptive Damping System (ADS) modes.
Page 109 GT Mode Sport Mode GT mode provides a default comfort setting, best suited Sport mode uses a more aggressive transmission to casual and motorway driving. calibration, but still with a level of comfort when changing gear. The transmission is set to use a base transmission calibration when in Drive to suit a touring style of driving.
Page 110: Blind Spot Assist
Blind Spot Assist Sport+ Mode Warning: Blind Spot Assist is for visual aid only and does not replace the need for driver awareness. It is the driver's Sport+ mode further increases transmission and engine responsibility to be aware of their surroundings and make response.
Page 111 Operation Conditions If a vehicle is detected at speeds above approximately 30 km/h (18 mph) and enters the monitoring range directly next to your For the Blind Spot Assist system to operate the below conditions vehicle, the warning lamp in the exterior mirror will illuminate must be met: amber.
Page 112 Blind Spot Warnings Stage Two Warning The BSA system will be set to stage two if: Stage One Warning • A vehicle is detected in the blind spot area. When the BSA system detects a vehicle in the driver's blind spot •...
Page 113 Operation is subject to the following two conditions: message will also show in the instrument cluster. Contact your (1) this device must not cause interference, and (2) this device Aston Martin Dealer. must accept any interference, including interference that may FCC - Radio Frequency Devices cause undesired operation of the device.
Page 114: Adaptive Damping
Adaptive Damping The Adaptive Damping System (ADS) uses sensors to The selected adaptive damping mode is shown in the left continuously monitor vehicle body movement and driver inputs, instrument cluster window (B). The ADS mode will also be briefly such as steering, braking and throttle input. The system then shown in the right instrument cluster window when the ignition adjusts the suspension damping characteristics to suit the is set to ON or when the ADS mode is changed.
Page 115: Brakes
Certain combinations of speed, braking forces and ambient conditions may also cause the brakes Warning: Aston Martin recommend that the brake fluid is to squeal. replaced before and after the vehicle is used for high performance driving such as a track day.
Page 116 In the event of an ABS fault, have the braking and ABS systems • The brake booster system has a fault and braking performance checked immediately by an Aston Martin Dealer. may be affected. ABS and Electronic Stability Program (ESP) Warnings •...
Page 117 ABS compared to locked wheels on slushy snow, gravel, sand or certain heavily corrugated or ridged warning sections of road surfaces. If any braking system malfunctions, have the braking and ABS systems checked immediately by your Aston Martin Dealer. 5.19 Driving...
Page 118 Warning: If the brake system warning symbol is ON or condition the pads may result in greatly reduced brake flashing, do not rely on the park brake to hold the vehicle performance. Contact your Aston Martin Dealer for further stationary. Contact your Aston Martin Dealer. information.
Page 119 Park Brake Operation While Moving The park brake operates on the rear wheels of the vehicle. Warning: Repeated use of the park brake to slow the Caution: Secure parking of the vehicle is dependent on vehicle, or driving the vehicle with the park brake applied being on a hard and stable surface.
Page 120: Electronic Stability Program (Esp)
Active Yaw Control (AYC) is also modified to allow a higher level Aston Martin Dealer. There is a sensor in the steering system of yaw. ABS is set to stage two. When the ESP is set to track, the which detects steering angle.
Page 121 Two-Stage Anti-lock Braking System (ABS) Stage Two When ESP is set to Track or OFF, the ABS is tuned to allow more The Anti-lock Braking System (ABS) will change its operation experienced drivers to drive closer to the limits of the vehicle's depending on ESP mode.
Page 122 Dynamic Torque Vectoring (DTV) Traction Control System (TCS) Dynamic Torque Vectoring (DTV) uses input signals such as The Traction Control System (TCS) is a function of ESP and is used speed, acceleration and steering angle to monitor vehicle to prevent excessive wheel spin at standing starts, or during behaviour during cornering.
Page 123: Tire Pressure Monitoring System (Tpms)
Tire Pressure Monitoring System (TPMS) As an added safety feature, your vehicle has been equipped with Tire Pressure Display a tire pressure monitoring system (TPMS) that illuminates a low The TPMS display is shown in the right window of the instrument cluster.
Page 124 Tire Pressure Indicator TPMS Reset If an under-inflated tire is detected by the system, the TPMS All warning messages are erased and warning lamps go out when the TPMS is reset. The TPMS will use the new tire pressure symbol is solidly illuminated.
Page 125: Eco Driving Features
Eco Driving Features Cylinder Deactivation TPMS Malfunction Warning The TPMS malfunction indicator is combined with the low tire (V12 Engine Only) pressure telltale. When the system detects a malfunction, the Cylinder deactivation is only available when drive mode is set telltale will flash for approximately one minute and then remain to GT.
Page 126 Stop/Start Engine Stop Conditions With Stop/Start active, the engine will switch off when the vehicle The Stop/Start function switches the engine off when the vehicle is completely stopped, the transmission is in either D (Drive) or N comes to a stop to reduce fuel consumption and emissions. (Neutral) and if the following conditions are met: Setting On or Off •...
Page 127: Park Assist Systems
Park Assist Systems Engine Start Conditions Warning: The park assist systems are for aid only. It is the The engine will automatically start again when: driver's responsibility to be aware of their surroundings when parking or reversing. • The engine has been switched off for 3 minutes. •...
Page 128 Activation Operation PDC will activate automatically at ignition on and when D Caution: In heavy rain or similar adverse conditions, the (Drive), R (Reverse) or N (Neutral) is selected. The sensors PDC sensors may not always be able to accurately measure activated depend on which gear is selected.
Page 129 Active Park Assist (Optional) Active Park Assist measures the road on both sides of the vehicle to locate a parking space the vehicle will fit in. The active park system will also provide vehicle steering to assist parking in spaces. Important Safety Information Active Park Assist is only an aid.
Page 130 Parking Space Detection Caution: Parking spaces that are partially occupied may be measured incorrectly. Examples of partially occupied parking Active Park Assist operates at speeds of up to approximately spaces can be trailer draw bars, over grown parking spaces or 22 mph (35 km/h).
Page 131 Active Park Assist does not assist with parking in right angle space Parking with Active Park Assist When a parking space has been found and is shown in the • two parking spaces are located directly next to each other instrument cluster, stop the vehicle and select R (Reverse).
Page 132 360° Camera System Activation Caution: The camera system can show a distorted or To activate the 360° camera, press the button or select 360° incorrect view of obstacles or not at all. Obstacles will not be cameras from the Vehicle Settings menu. The camera will show shown under, or in very close proximity to, the front or rear the split screen with either the front or rear view, depending on bumpers.
Page 133 View Selection 180° View To select the different views, push up on the CONTROL DIAL to When the camera shows the front or rear view, select 180° view. the view selection bar. The split-screen views that can be shown This will replace the split-screen view and show a much wider are: angle for the front or rear.
Page 134 Top View with Park Distance Control (Front and Rear views) Top View with Corner Views To aid with parking the vehicle, a dynamic overlay screen will be The corner view cameras show both sides of the vehicle from the shown over the camera image. The overlay screen adjusts with door mirrors.
Page 135 Climate Control Climate Controls ..............6.2 Climate Menu ..............6.6 Defrost and Demist ............. 6.9 Air Distribution Vents ............6.9 Climate Control Operating Tips ......... 6.10...
Page 136: Climate Controls
Climate Controls Centre Stack Climate Controls [4] A/C: When in manual mode press and release to set the air conditioning ON or OFF. [5] AIR CIRCULATION: Warning: Re-circulated air can cause the interior glass to mist up in cold or rainy weather. If demisting is required, use the air conditioning.
Page 137 [6] HEATED REAR WINDOW: [10] SEAT HEATING/COOLING: Press to set the rear window and door mirror heaters ON Warning: Do not press the seat heater switch repeatedly. or OFF. The rear screen heater will automatically set to OFF after This can cause the seat to become very hot and can cause 20 minutes and the door mirror heaters set to OFF after 6 burn injuries to persons with limited sensitivity to minutes.
Page 138 Infotainment Climate Controls [1] TEMPERATURE: Open the temperature list. [2] AIR DISTRIBUTION MODES: Open the air distribution list. [3] AIRFLOW: Open the airflow speed list. Select a fan speed from 1 to 7 or select AUTO. [4] CLIMATE MENU: Shows the Climate Mode setting and Air Conditioning status. Select to open the Climate Menu (Refer to ’Climate Menu’, page 6.6).
Page 139 Automatic Climate Control Manual Climate Control The temperature is maintained at a set level in automatic mode. Manually set the temperature, airflow speed and air distribution: The climate system will automatically control the temperature, Warning: Re-circulated air can cause the interior glass to airflow and the air distribution according to the interior and mist up in cold or rainy weather.
Page 140: Climate Menu
Climate Menu Temperature The climate control system can also be operated within the infotainment system. Use the CONTROL DIAL or the applicable rocker switch or dial to adjust each function. Climate Mode Rotate the CONTROL DIAL to set the temperature. Select one of three modes: [1] MEDIUM: Standard airflow with medium airflow.
Page 141 Air Distribution Airflow Rotate the CONTROL DIAL to choose an air distribution mode. Rotate the CONTROL DIAL to choose an airflow speed from between 1 and 7 or AUTO. Climate Control...
Page 142 Climate Options [1] SYNC.: Select to synchronize the left and right climate zones. Only one setting dial will be shown when climate conditions are being set. If SYNC is set to OFF, push the CONTROL DIAL left or right to select which zone to adjust.
Page 143: Defrost And Demist
Defrost and Demist Air Distribution Vents To adjust the air vents, use the vent knob (A). Push up or down Caution: To defrost or demist the windscreen on vehicle to adjust the blades inside the vent. Push left or right to adjust the start up in extreme cold weather conditions, operate the angle of the vent unit.
Page 144: Climate Control Operating Tips
If the climate control system is low on refrigerant or control system to demist the windows. has a malfunction, consult your Aston Martin Dealer. • Clear all obstructions like leaves, snow and ice from the hood • Mist may come out from the vents when using the air and the air inlet below the windscreen to improve the system conditioning.
Page 145 Phone System Hands-Free Controls ............7.2 Device Management ............7.2 Phone Features ..............7.5...
Page 146 Hands-Free Controls Device Management Bluetooth® technology is a standard for short-range wireless data transmissions up to approximately 10 metres. Bluetooth can be used to connect your mobile device to the vehicle infotainment system. This system can then be used to operate the hands-free phone system, Bluetooth audio streaming and internet access.
Page 147 'listen' for a device. Follow the device manufacturer's instructions to search and connect to a new Bluetooth connection in range. Select Aston Martin DB11 from the device list. If the vehicle does not show, check that Bluetooth is active in the infotainment system and search again.
Page 148 Device Details Completing Device Pairing Once the mobile device is paired, it is ready for use with the To show device details, select TEL from the main menu and vehicle audio and hands-free system. The infotainment system navigate to Connect Device. Scroll through the list and select a will also request access to call history, contact list and messages.
Page 149 Phone Features Contact Lists Calls The contact list displays all available contacts for your phone Make a Call contacts which have a phone number. A call can be made in several ways: • Choose a contact from the Contacts list. To access the contact list press on the centre stack or •...
Page 150 Multiple Call Handling Second Incoming Call (Network Provider Dependant) If there is an incoming call during an active call, press Add a Call answer the new call and put the original call on hold. To make a second call during a call, select the 2ND CALL icon To reject the call press , or select Reject Call and press and select a contact.
Page 151 Messages The lower information bar has the below options: [1] BACK: The connected mobile phone must support Message Access Return to phone menu. Profile (MAP) to be able to access text and email messages. This may have to confirmed separately for some devices when paired [2] SETTINGS: to the vehicle.
Page 152 Message Entry [1] TEXT TEMPLATES: Opens a list of common phrases to be entered into a message. [2] RETURN: Starts a new line of text. [3] CASE: Switch between upper and lower case characters. [4] NON-ALPHABETICAL CHARACTERS: Show numbers and miscellaneous characters. [5] LANGUAGE: Select to open the languages list.
Page 153 Media Systems Audio Specification ............. 8.2 Multimedia Controls............8.4 Radio .................. 8.5 Satellite Radio ..............8.6 Media ................. 8.9 Media Menu ..............8.12 Media Register ..............8.15 Bluetooth Audio ..............8.16 Sound ................8.17...
Page 154: Audio Specification
Audio Specification Aston Martin Standard Audio Radio • HD AM Radio. Power Output • HD FM Radio. 7 Channel 320W Audio System. Inputs Speakers • 2 x USB ports in centre storage tray. [1] TWEETERS: • SD Card reader in centre storage tray.
Page 155 Aston Martin Premium Audio Bang and Olufsen Audio Power Output Power Output 10 Channel 640W Audio System. 13 Channel 1000W Audio System. Speakers Speakers [1] TWEETERS: [1] TWEETERS: Two 25 mm / 1 inch tweeters. Two 19 mm / 0.75 inch (soft dome) tweeters incorporating Acoustic Lens Technology (ALT).
Page 156: Multimedia Controls
Multimedia Controls [1] DISC SLOT: Slot to insert a CD or DVD disc. [2] EJECT: Press to eject disc. [3] MEDIA: Opens the Media screen (Refer to ’Media’, page 8.9). Opens the media source list if media screen is already open. [4] VOLUME CONTROLS: Press to increase and to decrease volume.
Page 157: Radio
Radio Radio Stations Press on the centre stack or select Radio from the main Selecting a station from the display screen menu to open the Radio screen. The display screen shows available stations that can be played. The display area will show the currently selected radio station and available radio stations.
Page 158: Satellite Radio
Satellite Radio Selecting a channel Satellite or radio modes can be temporarily interrupted or unavailable for a number of reasons such as: Channel Browse • Tunnels. The display screen shows available channels that can be played. • Parking garages. Push the CONTROL DIAL with the centre display highlighted to •...
Page 159 Options To Set a Sports Alert Select Options from the lower information bar and select Alert Tag This Track for Artist, Track & Sports Event. Select to store the track and music artist currently being played Select Manage Sport Alerts followed by Select New Alerts. Stored tracks can then be later purchased in the iTunes®...
Page 160 Presets Service The provider's customer service center is available by phone at The centre display can be set to show stored preset stations any time to answer any general questions or questions on the instead of available stations. versions available. To set preset view ON or OFF, select Presets from the lower To select : turn and press the controller.
Page 161: Media
Media Band Press on the centre stack or select Media from the main Select between SiriusXM®, HD Radio FM and HD Radio AM. menu to open the media Now Playing screen. Information Now Playing screen layout will depend on the media device last used.
Page 162 Media Sources DVD Video Media Press MEDIA or select Media from the main menu with to show the available media sources. Rotate the CONTROL DIAL and press ENTER to select a media source. The Now Playing screen initially shows video in full screen mode. Press ENTER to bring up the basic DVD information bar which shows media source, track/title number, scene number and play time.
Page 163 Media Formats and File Systems File Systems Media Formats • CD-R Audio • CD-A • .MP3 • CD-RW • .WMA • CD-A • DVD-R • AAC formats • DVD-V • .aac • DVD-RW • .mp4 USB and SD Memory Card •...
Page 164: Media Menu
Media Menu Options On the lower bar of the Media screen there will be several options: Media Options • Options • Play/Pause • Search • Devices • Sound • Play similar tracks • Play mode • Direct track entry • Skip to time •...
Page 165 DVD Video Options Play Similar Tracks Play tracks that are of the same genre. Play Mode Select from Normal Track Sequence, Random Track List or Random Media. Direct Track Entry Manually enter track name. Skip to Time Rotate the CONTROL DIAL to select a set time in the track. Press ENTER to play.
Page 166 Search Save Files to Media Register Save the current file or files to vehicles internal hard drive. Search for a media file from a list of the below information fields: Manage Media Register • Current tracklist Opens the Media Register options menu. (Refer to ’Media •...
Page 167: Media Register
Media Register Devices The media register can be used to store music, picture and video files directly on the vehicle's hard drive. Storage capacity for the media register is approximately 10.8 GB, enough to store approximately 10000 minutes (166 hours) of music, 4700 pictures or 1300 minutes (21 hours) of video Media Register Options Select the Manage Media Register option in the Options menu.
Page 168: Bluetooth Audio
Bluetooth Audio Bluetooth Connection Options • Bluetooth Audio Devices Bluetooth audio must be paired to the vehicle independently • Play mode from the Bluetooth® hands free connection. • Volume To select a Bluetooth audio device: Bluetooth Audio Devices 1. Make sure Bluetooth is activated on your device and in Opens menu to manage Bluetooth devices.
Page 169: Sound
Sound The Sound menu screen can be accessed from either the Radio Sound Field/Sound Focus or Media screens. (Audio Level Dependent) • Equalizer Changes the optimisation of the speakers depending on if how • Balance/Fader many occupants are in the vehicle. Select from: •...
Page 170 8.18 Media Systems...
Page 171 Satellite Navigation Safety Information ............... 9.2 Navigation Controls ............. 9.3 Navigation Menu..............9.4 Options................9.4 Traffic ................. 9.7 Route .................. 9.8 Position ................9.9 Destination ............... 9.10 Navigation Menu............... 9.14...
Page 172: Satellite Navigation
Safety Information Warning: Failure to avoid the following potentially Warning: When navigating, carefully compare hazardous situations could result in an accident or collision information shown on the screen to all available navigation resulting in death or serious injury. sources, including road signs, road closures, road conditions, traffic congestion, weather conditions, and other Warning: Always use your best judgement, and operate factors that may affect safety while driving.
Page 173: Navigation Controls
Navigation Controls Audio Controls Press the (A) button or select Nav from the main menu to Use the left scroll wheel on the steering (B) to adjust the volume open the navigation screen. for navigation announcement. Press and hold the scroll wheel button during a navigation announcement to mute.
Page 174: Navigation Menu
Navigation Menu Options Route Settings Choose from the following route settings: • Fast Route Finds a route with the shortest journey time. • Dynamic Route Finds a route with the shortest journey time but updates with live traffic reports. • Eco Route Finds an economical route.
Page 175 Map Orientation Avoid Options Select from the following options: Select to change the orientation of the display map. Select from: • Avoid Area • North Up Select Avoid New Area and choose from: Map is displayed so that north is always up. •...
Page 176 Map Content Personal POIs Choose from the following map content options: Load any saved personal points of interest from an SD Memory Card. • POI Symbols on Map Settings • Standard Symbols: Shows default point of interest symbols. Choose from the following system settings: •...
Page 177: Traffic
Traffic Read Out All Message On Route Traffic Reports from FM RDS-TMC An RDS-TMC radio station transmits traffic reports in addition to Select to read out traffic reports along the route. If there are no the radio programme. your vehicle can receive these reports and traffic reports this option will not be available.
Page 178: Route
Route Destination Information Alternative Route Shows the destination and any intermediate destinations along Shows available alternative routes. Select Previous or Next to with expected arrival time, distance and journey time. display alternative routes. Select a destination to view details. From the details screen you The current route is shown in light blue, and alternative routes also have several options: are shown in dark blue.
Page 179: Position
Position Save 3D Map Rotation Save the current position to the From previous destination list. View the area around the vehicle in a 3D perspective. Rotate the Saved destination will have a symbol next to the location name. CONTROL DIAL to change the direction of view or push the CONTROL DIAL to move the map cursor in that direction.
Page 180: Destination
Destination Cancel Route Guidance Once you have entered one of the above items of information you can filter your search further by adding more information to Select to cancel current route guidance. the above or entering one of the following: Address Entry •...
Page 181 Keyword Search Addresses Shows a list of both exact and approximate addresses that match Keyword search can be used to find a location without having to your search terms. Exact matches are shown at the top of the list enter the full name. Search also allows for spelling mistakes and in alphabetical order.
Page 182 From Previous Destinations From POI Search from a list of previously entered addresses. Scroll through Select to choose a location based on a point of interest. the list of available locations and press ENTER to select a Near Destination destination from the list. Push the CONTROL DIAL right to view (Only available while route guidance is active) the following options: Choose a point of interest near your destination.
Page 183 Using Map From Memory Card Find a destination using the map display. Move the cursor by Load a saved route from a SD memory card. pushing the CONTROL DIAL in the chosen direction. Rotate the This function is only available if a SD Memory card with route CONTROL DIAL clockwise to zoom out and counter-clockwise to data is inserted into the SD card slot.
Page 184: Navigation Menu
Navigation Menu From the navigation display press the NAV button, or push the joystick up, to access the main vehicle menu and navigate to Nav to open the navigation menu. In the navigation menu you will be shown the options that follow: •...
Page 185 Vehicle Settings Vehicle Settings ..............10.2 Time Settings..............10.2 System Settings..............10.3...
Page 186 Vehicle Settings Time Settings Acoustic Lock Feedback Automatic Time Settings Set audible lock note on or off. Select to set automatic time settings to on or off. Auto-Fold Mirror Time Zone Set if mirrors are folded when vehicle is locked to on or off. Select the required local time zone.
Page 187 System Settings Favorite Functions Display When Favorite Functions is selected the below menu options are Select Display to access the display settings options: available. Use the joystick to select: • Day • Navigation Brighter display colours for clearer viewing during daytime •...
Page 188 Language Touchpad Select the language for the vehicle infotainment system from one Select to set Activate Touchpad or Read Out Handwriting of the available languages. Recognition to on or off. Voice Control Activate Bluetooth • Help Window Select to set Bluetooth to on or off. •...
Page 189 Convertible Roof Roof Operation ..............11.2 Roll-Over Protection System..........11.4 Wind Deflector ..............11.6 Emergency Roof operation ..........11.8...
Page 190: Convertible Roof
Warning: Misuse of the roof switch, especially by Caution: Aston Martin recommend that the roof is only children, can result in injury due to entrapment in the roof operated while the vehicle is stationary and that the engine is mechanism and locking points.
Page 191 Operation Window Operation The windows are operated independently of the roof. Use the Warning: If roof movement is not complete the message window switch to operate the windows as normal. "Open/close top completely" will be shown in the instrument cluster. Roof Relaxation To operate the roof use the switch (B) in the centre console.
Page 192: Roll-Over Protection System
Roll-Over Protection System Over-speed Operation Warning: Do not attempt to service or modify the Vehicle speed should be below 55 km/h (34 mph) when the roof deployable roll-bar system. is operated. Warning: Do not allow any person to sit on the If the vehicle speed exceeds 55 km/h (34 mph), the convertible deployable roll-bar covers at any time.
Page 193 The roll-over protection system has electronic sensors mounted Warning Labels to the vehicle body that monitor and determine if a roll-over has Do Not Cover is embossed into tonneau cover above the roll taken place. If the system senses a rollover, two roll bars mounted bars.
Page 194: Wind Deflector
Wind Deflector Installation The wind deflector can be used to greatly reduce wind turbulence when the roof is lowered. It is easily installed to To install the wind deflector: mounts in the vehicle and can be left in place with the roof raised 1.
Page 195 3. Open the main net panel and join the two base panels with 4. Insert the two locating tabs into the rear seat belt openings. the snap connectors. Use the two slide bolts to lock the wind deflector above the rear seats.
Page 196: Emergency Roof Operation
Warning: Aston Martin recommend that a minimum of Caution: Do not grab the main net panel. Sharp objects two people are required to manually raise and lock the roof.
Page 197 Once the manual roof raise procedure is complete, you will not be able to operate the convertible roof until it has been reset by an Aston Martin Dealer. 1. Remove the wind deflector (if installed). 2. Remove the head rests (A) for the rear seats.
Page 198 4. Pull the two release cables (C) for the tonneau latches. 5. Lift the tonneau cover at the points shown. 11.10 Convertible Roof...
Page 199 6. Push the hinge pivot (D) rearward to lock the tonneau into 7. With a person each side, support the tension bow (E) and position. fully lift the roof to its closed position. Caution: The tension bow must not be allowed to fall until the front latches for the roof are in their receivers.
Page 200 8. Whilst supporting the tension bow, unlock the hinge and close the tonneau cover. 11.12 Convertible Roof...
Page 201 9. Once the tonneau cover is fully closed, lower the tension 10. Inside the vehicle, remove the trim plug from the front bow. header panel. Caution: Do not allow the tonneau lid to rest on the roof fabric. 11.13 Convertible Roof...
Page 202 (F) from the roof motor. the drive spline (G) and turn the motor one turn counter- clockwise. You must contact your Aston Martin dealer to reset the drive to the roof latch motor. If the roof is manually raised or lowered, both the tension bow and the tonneau cover cannot be locked.
Page 203 Maintenance and Technical Data Introduction ..............12.2 Servicing Precautions............12.3 Owner Maintenance Checks ..........12.5 Hood Release..............12.7 Fluid Checks and Capacities ..........12.8 Washers and Wipers ............12.13 Chassis Systems ............... 12.14 Wheels and Tires............. 12.15 US Department of Transportation........12.19 Electrical Systems ............
Page 204: Maintenance And Technical Data
Aston Martin Dealer. or cause increased pollution. If it is evident to Aston Martin Restraint Systems that use of products other than those which are...
Page 205: Servicing Precautions
Servicing Precautions To avoid personal injury, the following safety precautions must be Warning: Do not breathe exhaust fumes. Exhaust fumes observed when the hood is open and the engine is operating or contain carbon monoxide. Carbon monoxide is a dangerous the ignition is on.
Page 206 Dangerous Substances Engine Oils Warning: Dangerous substances should be kept out of Warning: Prolonged and repeated contact with used reach of children. engine oils can cause serious skin disorders, including dermatitis and cancer. Avoid excessive contact, wash Warning: Many liquids and other substances used in thoroughly after contact.
Page 207: Owner Maintenance Checks
Owner Maintenance Checks Engine Oil Level In the interests of safety and reliability, it is advisable to carry out the following checks at the intervals suggested (more frequently if Caution: It is important to check the engine oil level your vehicle is heavily used or operating in adverse conditions), regularly.
Page 208 Aeroblade Filter • Remove the filter trap (2) from the aeroblade duct. Clean the filter and remove any obstructions such as leaves. Coupe Only Over time it may become necessary to clean the filter traps for the Aeroblade ducts. • Press the release tab (1) down to unlatch the filter trap. •...
Page 209: Hood Release
Hood Release To open the hood press the button (A) located on the end of the Emergency Hood Release instrument panel to release the hood latches. In the unlikely event that either the hood release switch fails to operate or the vehicle battery is fully discharged there are two manual release cables (A) located either side of the instrument panel.
Page 210: Fluid Checks And Capacities
Fluid Checks and Capacities V8 Engine Warning: Engine components may be hot and could cause severe burns. V12 Engine [1] : Engine oil dipstick. [2] : Engine oil filler cap. [3] : Engine coolant reservoir. [1] : Engine oil filler cap. [4] : Brake fluid reservoir [2] : Engine oil dipstick.
Page 211 Engine Oil Level Engine Oil Level Check: • The vehicle should be on level ground. Warning: Engine oil or components may be hot and could • Check the engine oil level every fourth fuel tank fill or weekly cause severe burns. - which ever is the sooner.
Page 212 Engine Coolant Level Engine Oil Level Sensing Caution: The electronic engine oil level sensing system Warning: Do not remove the filler cap until the coolant does not replace the need for the owner to regularly check system has cooled. Scalding can be caused by escaping steam the engine oil using the dipstick.
Page 213 Brake Fluid Level Fluid Specifications Fuel Warning: Do not drive the vehicle if the brake fluid level is below the minimum mark. Minimum 91 AKI unleaded fuel. Recommended 93 AKI Super unleaded for optimum Caution: Make sure that the brake fluid does not contact performance.
Page 214 (including cooler) 8.9 Quarts Automatic Transmission Differential 1.1 Litres 1.1 Quarts Screen Washer Reservoir 4.0 Litres 4.2 Quarts Engine Coolant Contact your Aston Martin Dealer for information on engine coolant. Brake Fluid DOT 4 Market dependent 12.12 Maintenance and Technical Data...
Page 215: Washers And Wipers
Washers and Wipers Windscreen Wash Fluid Local or state regulations may restrict the use of volatile organic compounds (VOCs), which are commonly used as To refill the washer fluid, open the washer fluid reservoir cap (A) antifreeze agents in windscreen washer fluid. A windscreen and top up as required.
Page 216: Chassis Systems
Independent double aluminium wishbone incorporating anti- dive geometry. Coil over aluminium monotube dampers and • Extruded aluminium bonded monocoque body structure. anti-roll bar. • Curlicue front and Aston Martin AeroBlade rear integrated aerodynamics. Rear • Deployable spoiler. Multi-link suspension with hollow-cast lower control arms and Steering hot-forged aluminium link arms.
Page 217: Wheels And Tires
101 (front) and 105 (rear). Wheel Bolt Torque For wheel bolt torque (Refer to ’Wheel Bolt Torque’, page 12.58). Wheel Alignment For the most up to date wheel alignment values, contact your Aston Martin dealer 12.15 Maintenance and Technical Data...
Page 218 Because of the high performance potential of this vehicle, vehicle’s design. Regular maintenance of tires contributes not Aston Martin strongly recommend replacement of any damaged only to safety, but to the designed function of the vehicle. or worn tire.
Page 219 Contact extend across the full width of the your Aston Martin Dealer for more information. tread, in all primary grooves. When a tire has worn causing one or more of the marks to be flush with the outer face of the tread the tire has reached its wear limit.
Page 220 Only use Aston Martin approved winter tyres - contact your Aston Martin dealer for more information. Warning: The maximum speed limit of the vehicle should be reduced when winter tyres are installed.
Page 221: Department Of Transportation
US Department of Transportation Uniform Tire Quality Grades Temperature The following information relates to the tire grading system Warning: The temperature grade for this tire is developed by the National Highway Traffic Safety established for a tire that is properly inflated and not Administration, which grades tires by tread wear, traction and overloaded.
Page 222 Tire Sidewall Information Information on ‘P’ Type Tires Both US and Canada Federal regulations require tire The tire size, load index and speed rating for your vehicle may manufacturers to place standardized information on the sidewall be different from this example. of all tires.
Page 223 [6] TIRE IDENTIFICATION NUMBER (TIN): (Also known as [8] H: The tire’s speed rating. The speed rating denotes the ‘DOT Code’) The Tire Identification Number (TIN) begins with speed at which a tire is designed to be driven for extended the letters ‘DOT’...
Page 224 Vehicle Loading [9] TIRE TYPE: • M+S or M/S Warning: Overloading the vehicle can negatively affect Mud and Snow the handling and stopping performance of the vehicle tires. • AT Correctly loading this vehicle will provide maximum return of All Terrain vehicle design performance.
Page 225 Labels for US vehicles Labels for Canadian Vehicles The illustrations shown are examples and may not accurately describe the labels on this vehicle. 12.23 Maintenance and Technical Data...
Page 226 If any after Payload: Make sure that the payload (cargo + passengers) does market or Aston Martin Dealer installed equipment has been not exceed this limit. installed on the vehicle, the weight of the equipment must be subtracted from the payload listed on the Tire Label in order to Tire sizes: The size of tires to be used on this vehicle.
Page 227 Determining the Correct Load Limit Maximum Permissible Inflation Pressure 1. Locate the statement ‘The combined weight of occupants The maximum permissible inflation pressure is the tire and cargo should never exceed XXX kg or XXX lb’ on the manufacturer’s maximum permissible pressure and / or the vehicle’s tire label.
Page 228 Safety Practices Tire Terminology Tire Label: A label showing the OE (Original Equipment) tire Warning: If your vehicle is stuck in snow, mud, sand, etc, sizes, recommended inflation pressure and the maximum weight do not rapidly spin the tires; spinning the tires can tear the the vehicle can carry.
Page 229: Electrical Systems
Electrical Systems Fuses Cold Inflation Pressure: The tire pressure when the vehicle has been stationary and out of direct sun light for an hour or more The electrical systems are protected by fuses. If any lamps, and prior to the vehicle being driven for 1 mile (1.6km). accessories, or controls do not function, inspect the applicable Recommended Inflation Pressure: The cold inflation pressure fuse.
Page 230 Front Fuses 12.28 Maintenance and Technical Data...
Page 231 Engine Primary Fuse Box (A) IP Fuse Box (B) V12 Engine Control Dial Touch Pad 150A Electronic Power Assisted Steering (EPAS) Instrument Cluster Fan 100A Cooling Fan HVAC Module 150A Right Side Engine Fuse Box Instrument Cluster ABS Module OBD Socket 100A Left Side Powerhold Fuse Box Infotainment Unit...
Page 232 Right Powerhold Fuse Box (C) V12 Engine V8 Engine HEGO Sensor Bank A Catalyst Monitor Bank A Coolant water pump B Coolant water pump A Cooling Fan Central Fan Module Coolant water pump A Oil Level Sensor Engine Supply Mass Air Flow (MAF) Sensor A Engine Supply Cannister Purge A Purge Valve A...
Page 233 Right Side Engine Fuse Box (D) V12 Engine V8 Engine ECM Keep Awake ECM Keep Awake Right Side Powerhold Supply Right Side Powerhold Supply Right Side Powerhold Control ABS Module ABS Module Starter Motor Right Side Wiper Motor Left Side Wiper Motor Secondary Air Pump A Right Side Wiper Motor ABS Module...
Page 234 Left Side Engine Fuse Box (E) V12 Engine V8 Engine Not Applicable ECM Keep Awake Left Side Powerhold Supply Left Side Powerhold Control Tracker Left Side Wiper Motor Secondary Air Pump B Vacuum Pump Vacuum Pump Monitor 12.32 Maintenance and Technical Data...
Page 235 Left Powerhold Fuse Box (F) V12 Engine V8 Engine ABS Module ABS Module Engine Control Module Wake up Engine Control Module Wake up Tire Pressure Monitoring System (TPMS) Tire Pressure Monitoring System (TPMS) Daytime Running Lights Daytime Running Lights HEGO Sensor Bank B Engine Supply Catalyst Monitor Bank B Engine Supply...
Page 236 Rear Fuses 12.34 Maintenance and Technical Data...
Page 237 Rear Primary Fuse Box (G) Rear Primary Fuse Box (H) IP Fuse box (B) Supply IP Fuse box (B) Supply IP Fuse box (B) Supply Fuse Box (J) Supply Fuse Box (K) Supply Fuse Box (J) Supply Fuse Box (K) Supply Fuse Box (J) Supply Fuse Box (K) Supply Fuse Box (J) Supply...
Page 238 Fuse Box (I) Fuse Box (J) 7.5A Occupant Restraint Controller (ORC) Left Side Seat Module Camera Module Seat Comfort Functions Tracker Left Side Seat Lumbar Adjust Blind Spot Monitoring Radar Multimedia Box Fuel Supply Control Module (FSCM) Tuner Box Occupant Classification System (OCS) Right Side Seat Lumbar Adjust Body Controller Transmission Control Module (TCM)
Page 239 Vehicle Battery: Banner 92AH Microwave Sensors 7.5A The vehicle battery is maintenance free and should only require checking by your Aston Martin Dealer during regular vehicle Ignition/accessory Relay Control services. To access the vehicle battery remove the trim panel, Left Side Seat Module located in the right rear environment.
Page 240 When working near the battery, always make sure engine. In this case the vehicle battery must be replaced. that neither you nor the battery is electrostatically charged. Contact your Aston Martin Dealer. Always have sufficient ventilation. Warning: Battery posts, terminals and related accessories Warning: Never place metal objects on the battery or contain lead and lead compounds.
Page 241 Battery Level Protection Vehicle Battery Disposal The incorrect disposal of a vehicle battery can be extremely Caution: If the battery is not capable of starting the engine, hazardous to health and the environment. Most batteries contain replace the battery as soon as possible. materials that, when disposed of incorrectly, may leak into the Using vehicle electrical systems such as the infotainment system, environment.
Page 242 The Aston Martin battery conditioner is suitable for use on all types of 12 volt AGM and lead acid batteries. If this vehicle is not going to be used for a period of time, and mains power is available, use a battery conditioner to maintain the battery charge level.
Page 243: Vehicle Care
Prolonged usage of automatic vehicle washes and power operated mops will also cause fine scratches in the paint surface. Aston Martin are able to supply a range of products to clean and protect your vehicle. Contact you Aston Martin Dealer for further information.
Page 244 Rinse the dirt out of the wash mitt or soft sponge in the bucket with plain water frequently. The Aston Martin new car warranty covers defects in 4. After one section is washed, rinse it with the hose before materials or workmanship of the paint work. The warranty...
Page 245 (wipe the front 1. Only use cleaning products recommended by Aston Martin. grille last using a chamois leather): Chrome polish or other Abrasive cleaning products will change the satin appearance abrasive cleaners must not be used.
Page 246 Several times a year, a leather conditioner or preservative should periodically and clear if necessary. be used. Appropriate care materials are obtainable from your Aston Martin Dealer. The brushed and anodized aluminium trim should be cleaned using a dry clean lint free cloth.
Page 247 Consult your Aston Martin Dealer for instructions on the removal soiling and fading along folds. of more difficult stains such as oil, grease or ballpoint ink.
Page 248: Powertrain Specifications
Powertrain Specifications 5.2L V12 Engine Firing Order 1 - 7 - 5 - 11 - 3 - 9 - 6 - 12 - 2 - 8 - 4 - 10. All alloy 48 valve twin turbocharged V12 engine featuring: Fuel delivery •...
Page 249 4.0L V8 Engine Firing Order 1 - 5 - 4 - 2 - 6 - 3 - 7 - 8. All alloy 32 valve twin turbocharged V8 engine featuring: Fuel delivery • Independent quad-variable camshaft timing. • 3 driver selectable powertrain modes. Multi-point sequential fuel injection.
Page 250 Transmission Gear Ratios Touchtronic IV Automatic Transmission 4.714 Rear mounted ZF 8HP70 eight-speed automatic gearbox with 3.143 'Shift by Wire' gear shift and Stop/Start ignition support. 2.106 Front mounted transmission radiator with transmission mounted 1.667 heat exchanger and pump. 1.285 Drive line 1.000 Cast aluminium torque tube with carbon fibre drive shaft.
Page 251: Performance
Performance V12 Coupe V8 Coupe V8 Volante Maximum Power 470 kW | 630 Bhp at 6500 rpm 375 kW | 503 Bhp at 6000 rpm 375 kW | 503 Bhp at 6000 rpm Maximum Engine Speed 7000 rpm 7000 rpm 7000 rpm Maximum Torque 700 Nm | 516 Lb.ft at 1600 rpm...
Page 252: Dimensions
Dimensions Interior Dimensions Vehicle Weights V12 Coupe V8 Coupe V8 Volante Front Curb Weight 1875 kg / 1765 kg / 1875 kg / 4135 lbs 3895 lbs 4135 lbs Effective Headroom 980 mm / 38.5 Inches Gross Vehicle Weight 2290 kg / 2180 kg / 2290 kg / Effective Leg-room...
Page 253 External Dimensions Coupe All dimensions shown in mm. 12.51 Maintenance and Technical Data...
Page 254 Volante All dimensions shown in mm. 12.52 Maintenance and Technical Data...
Page 255: Emergency And Breakdown
Caution: If there is a transmission fault, this vehicle must be transported. If the park brake was applied and the vehicle has lost power, the park brake will not release. Call Aston Martin Assistance or your local Aston Martin Dealer. Your vehicle should always be recovered on a vehicle...
Page 256 Caution: Apart from vehicle recovery, this vehicle must Contact your Aston Martin Dealer not be driven if the vehicle battery is incapable of starting the engine. In this case the vehicle battery must be replaced.
Page 257 Recharge time will depend on the initial ‘state of health’ of the discharged battery. If the vehicle still will not start, contact your Aston Martin Dealer. 4. Identify the positive (2) and negative (3) jump start points shown.
Page 258 Set the engine to OFF and restart the engine. Take the vehicle on a long run to fully charge the battery. Contact your Aston Martin Dealer to have the battery checked or replaced. Charge time can depend on the battery state of the donor vehicle.
Page 259 Vehicle Lifting If this vehicle is to be raised using a vehicle jack make sure that the following jacking points are used. Warning: Make sure that no persons are in the vehicle before the vehicle is lifted. Warning: Make sure that the park brake is applied and that the vehicle transmission is in P (Park).
Page 260 Warning: If a tire pressure of 1.8 bar (26 Psi) cannot be reached then the tire can not be sealed. Do not attempt to re-inflate the tire. Contact your Aston Martin Dealer. Warning: If the pressure in the tire after driving for 3 km is below 1.3 bar (19 Psi) the tire has not been effectively...
Page 261 Aston Martin Dealer. and repair of tyres that have been treated with any form of • If the nearest Aston Martin Dealer is over 200 km (125 miles) temporary mobility aid. Consult a tire specialist for advice. away, contact your Aston Martin Dealer.
Page 262: Fuel
Fuel Fuel Level Warnings Fuel Filling There are two stages of fuel level warning: The fuel tank filler neck has a restricted opening which will 1. The first fuel level warnings changes the fuel symbol on the only accept the fuel supply nozzle of unleaded fuel pumps. fuel gauge from white to amber.
Page 263 Fuel Filler Flap Emergency Release Fuel Filler Bowl To stop water gathering in the fuel filler bowl and flowing into the To manually unlock the fuel filler flap: fuel tank, the fuel filler bowl has a pipe to let the water drain from 1.
Page 264 2. Reach behind the right side deck lid hinge. 3. Pull the emergency release (ER) tab to unlock the fuel cap. Caution: The emergency release cable only unlocks the fuel flap. It does not open the fuel flap. Do not pull too hard on the emergency release cable.
Page 265 Service Aston Martin Facilities ............A.2 Vehicle Provenance.............A.3 Servicing ................A.5 Service Record ..............A.7 Replacement of Airbag Units ..........A.29 Replacement of Seat Belt Pre-tensioners ......A.29 Field Service Actions ............A.30 Service Action Recalls............A.31...
Page 266: Aston Martin Facilities
Aston Martin franchise can occur. Neither meet the owner’s requirements, but the availability of certain Aston Martin nor any listed Importer or Dealer shall in any parts may be affected by differences in vehicle and component circumstances be held liable for any inaccuracy, or the specifications.
Page 267: Vehicle Provenance
Vehicle Provenance Aston Martin Authorized Body Repairers Model: A full list of Aston Martin Authorized Body Repairers worldwide Vehicle Identification Number: can be found at: As on the VIN plate www.astonmartin.com All Aston Martin Approved Body Repair centres have been assessed and audited to Aston Martin Body Repair Centre standards in either Category A or B.
Page 268 First Owner Fourth Owner Selling Dealer Selling Dealer Delivery Date Delivery Date Second Owner Fifth Owner Selling Dealer Selling Dealer Delivery Date Delivery Date Third Owner Sixth Owner Selling Dealer Selling Dealer Delivery Date Delivery Date Service...
Page 269: Servicing
The schedules may be modified if necessary. Please warranties. It is the owner’s responsibility to see that the vehicle consult your Aston Martin Dealer for details of any service is maintained correctly and in accordance with the schedule updates.
Page 270 Item Item Interval Annual Service Inspections Fluids and Consumables Examine the condition, operation, adjustment and attachment of the Replace the engine oil and engine 16,000 km / 10,000 miles below items: oil filter. Engine and transmission mounting system. Check for leaks. Replace the spark plugs.
Page 271: Service Record
Service Record The following service records cover the regular services at 16,000 Free Pre-delivery Inspection km, 10,000 miles or 12 months intervals, which ever occurs first. Make sure that at each service the appropriate entry is stamped and signed as completed. Service Actions Checked: Yes / No Open Service Actions Completed:...
Page 272 Service Information Authorized Dealer Stamp Odometer: Technician Name: Service Advisor Name: Date: Service Advisor Signature: Next Service Due: Additional Service Information Service Details Service Actions Checked: Yes / No Air Filter Changed: Yes / No Pollen Filter Changed: Yes / No Spark Plugs Changed: Yes / No Anti Corrosion Inspection:...
Page 273 Service Information Authorized Dealer Stamp Odometer: Technician Name: Service Advisor Name: Date: Service Advisor Signature: Next Service Due: Additional Service Information Service Details Service Actions Checked: Yes / No Air Filter Changed: Yes / No Pollen Filter Changed: Yes / No Spark Plugs Changed: Yes / No Anti Corrosion Inspection:...
Page 274 Service Information Authorized Dealer Stamp Odometer: Technician Name: Service Advisor Name: Date: Service Advisor Signature: Next Service Due: Additional Service Information Service Details Service Actions Checked: Yes / No Air Filter Changed: Yes / No Pollen Filter Changed: Yes / No Spark Plugs Changed: Yes / No Anti Corrosion Inspection:...
Page 275 Service Information Authorized Dealer Stamp Odometer: Technician Name: Service Advisor Name: Date: Service Advisor Signature: Next Service Due: Additional Service Information Service Details Service Actions Checked: Yes / No Air Filter Changed: Yes / No Pollen Filter Changed: Yes / No Spark Plugs Changed: Yes / No Anti Corrosion Inspection:...
Page 276 Service Information Authorized Dealer Stamp Odometer: Technician Name: Service Advisor Name: Date: Service Advisor Signature: Next Service Due: Additional Service Information Service Details Service Actions Checked: Yes / No Air Filter Changed: Yes / No Pollen Filter Changed: Yes / No Spark Plugs Changed: Yes / No Anti Corrosion Inspection:...
Page 277 Service Information Authorized Dealer Stamp Odometer: Technician Name: Service Advisor Name: Date: Service Advisor Signature: Next Service Due: Additional Service Information Service Details Service Actions Checked: Yes / No Air Filter Changed: Yes / No Pollen Filter Changed: Yes / No Spark Plugs Changed: Yes / No Anti Corrosion Inspection:...
Page 278 Service Information Authorized Dealer Stamp Odometer: Technician Name: Service Advisor Name: Date: Service Advisor Signature: Next Service Due: Additional Service Information Service Details Service Actions Checked: Yes / No Air Filter Changed: Yes / No Pollen Filter Changed: Yes / No Spark Plugs Changed: Yes / No Anti Corrosion Inspection:...
Page 279 Service Information Authorized Dealer Stamp Odometer: Technician Name: Service Advisor Name: Date: Service Advisor Signature: Next Service Due: Additional Service Information Service Details Service Actions Checked: Yes / No Air Filter Changed: Yes / No Pollen Filter Changed: Yes / No Spark Plugs Changed: Yes / No Anti Corrosion Inspection:...
Page 280 Service Information Authorized Dealer Stamp Odometer: Technician Name: Service Advisor Name: Date: Service Advisor Signature: Next Service Due: Additional Service Information Service Details Service Actions Checked: Yes / No Air Filter Changed: Yes / No Pollen Filter Changed: Yes / No Spark Plugs Changed: Yes / No Anti Corrosion Inspection:...
Page 281 Service Information Authorized Dealer Stamp Odometer: Technician Name: Service Advisor Name: Date: Service Advisor Signature: Next Service Due: Additional Service Information Service Details Service Actions Checked: Yes / No Air Filter Changed: Yes / No Pollen Filter Changed: Yes / No Spark Plugs Changed: Yes / No Anti Corrosion Inspection:...
Page 282 Service Information Authorized Dealer Stamp Odometer: Technician Name: Service Advisor Name: Date: Service Advisor Signature: Next Service Due: Additional Service Information Service Details Service Actions Checked: Yes / No Air Filter Changed: Yes / No Pollen Filter Changed: Yes / No Spark Plugs Changed: Yes / No Anti Corrosion Inspection:...
Page 283 Service Information Authorized Dealer Stamp Odometer: Technician Name: Service Advisor Name: Date: Service Advisor Signature: Next Service Due: Additional Service Information Service Details Service Actions Checked: Yes / No Air Filter Changed: Yes / No Pollen Filter Changed: Yes / No Spark Plugs Changed: Yes / No Anti Corrosion Inspection:...
Page 284 Service Information Authorized Dealer Stamp Odometer: Technician Name: Service Advisor Name: Date: Service Advisor Signature: Next Service Due: Additional Service Information Service Details Service Actions Checked: Yes / No Air Filter Changed: Yes / No Pollen Filter Changed: Yes / No Spark Plugs Changed: Yes / No Anti Corrosion Inspection:...
Page 285 Service Information Authorized Dealer Stamp Odometer: Technician Name: Service Advisor Name: Date: Service Advisor Signature: Next Service Due: Additional Service Information Service Details Service Actions Checked: Yes / No Air Filter Changed: Yes / No Pollen Filter Changed: Yes / No Spark Plugs Changed: Yes / No Anti Corrosion Inspection:...
Page 286 Service Information Authorized Dealer Stamp Odometer: Technician Name: Service Advisor Name: Date: Service Advisor Signature: Next Service Due: Additional Service Information Service Details Service Actions Checked: Yes / No Air Filter Changed: Yes / No Pollen Filter Changed: Yes / No Spark Plugs Changed: Yes / No Anti Corrosion Inspection:...
Page 287 Service Information Authorized Dealer Stamp Odometer: Technician Name: Service Advisor Name: Date: Service Advisor Signature: Next Service Due: Additional Service Information Service Details Service Actions Checked: Yes / No Air Filter Changed: Yes / No Pollen Filter Changed: Yes / No Spark Plugs Changed: Yes / No Anti Corrosion Inspection:...
Page 288 Service Information Authorized Dealer Stamp Odometer: Technician Name: Service Advisor Name: Date: Service Advisor Signature: Next Service Due: Additional Service Information Service Details Service Actions Checked: Yes / No Air Filter Changed: Yes / No Pollen Filter Changed: Yes / No Spark Plugs Changed: Yes / No Anti Corrosion Inspection:...
Page 289 Service Information Authorized Dealer Stamp Odometer: Technician Name: Service Advisor Name: Date: Service Advisor Signature: Next Service Due: Additional Service Information Service Details Service Actions Checked: Yes / No Air Filter Changed: Yes / No Pollen Filter Changed: Yes / No Spark Plugs Changed: Yes / No Anti Corrosion Inspection:...
Page 290 Service Information Authorized Dealer Stamp Odometer: Technician Name: Service Advisor Name: Date: Service Advisor Signature: Next Service Due: Additional Service Information Service Details Service Actions Checked: Yes / No Air Filter Changed: Yes / No Pollen Filter Changed: Yes / No Spark Plugs Changed: Yes / No Anti Corrosion Inspection:...
Page 291 Service Information Authorized Dealer Stamp Odometer: Technician Name: Service Advisor Name: Date: Service Advisor Signature: Next Service Due: Additional Service Information Service Details Service Actions Checked: Yes / No Air Filter Changed: Yes / No Pollen Filter Changed: Yes / No Spark Plugs Changed: Yes / No Anti Corrosion Inspection:...
Page 292 Service Information Authorized Dealer Stamp Odometer: Technician Name: Service Advisor Name: Date: Service Advisor Signature: Next Service Due: Additional Service Information Service Details Service Actions Checked: Yes / No Air Filter Changed: Yes / No Pollen Filter Changed: Yes / No Spark Plugs Changed: Yes / No Anti Corrosion Inspection:...
Page 293: Replacement Of Airbag Units
Replacement of Airbag Units Replacement of Seat Belt Pre-tensioners Aston Martin recommend that all airbag units are replaced every Aston Martin recommend that all seat belt pre-tensioners units 10 years from the date of manufacture. To make sure this is are replaced every 10 years from the date of manufacture.
Page 294: Field Service Actions
Field Service Actions Action No. Date Dealer Action No. Date Dealer A.30 Service...
Page 295: Service Action Recalls
Service Action Recalls Action No. Date Dealer Recall No. Date Dealer A.31 Service...
Page 296 A.32 Service...
Page 297 12 What Replacement Parts should I use ......B.19 13 Preserve Your Emissions Warranty ........B.20 14 Customer Satisfaction ...........B.20 15 The Better Business Bureau (BBB) Auto Line Program ...B.21 16 State Warranty Enforcement Laws ........B.23 17 Aston Martin Extended Service Contract .......B.23 Owner And Vehicle Details ..........B.24...
Page 298: Aston Martin Warranty
'Serviced Countries' means either: (a) any country in the Region Warwick, from which your Aston Martin vehicle was purchased, where CV35 0DB, there is an Aston Martin authorized dealer or repairer; or (b) any England country agreed in writing with Aston Martin. Aston Martin Warranty...
Page 299 The warranties provided herein are for the benefit of the original A summary of all Aston Martin warranties applicable to this purchaser and any subsequent owner during the relevant vehicle (together the Warranties) are as follows: Warranty Period (defined below). The warranties cover Aston a) New Vehicle Limited Warranty Martin vehicles that are built for and supplied to the Region.
Page 300: New Vehicle Limited Warranty
Warranty. No person, including or sold. Aston Martin employees or Dealers, can modify or waive any part of this Warranty. 1.4 Reservation of Rights Aston Martin and its Dealers reserve the right to provide post-...
Page 301 This warranty gives owners specific legal rights, and they may also have other rights that vary from State to State. Aston Martin and its Dealers are not responsible to you for any time or income that you lose, any inconvenience you might be...
Page 302: New Vehicle Limited Warranty Statement
4 What is not Covered under the Warranties 3.1 Warranty Maintenance 4.1 Excluded Categories of Vehicle Aston Martin warrants that during the Warranty period, if an The following categories of vehicle are excluded from the Aston Martin vehicle is correctly operated and maintained by the provisions of the Warranties: user in accordance with the Maintenance chapter of the Owner’s...
Page 303 • Cuts, burns, punctures or tears • Use of contaminated or incorrect fuel or fluids or application • Windshield stress cracks of unauthorized chemicals by the customer. • Rodent damage • Incorrect polishing of paint surface. Aston Martin Warranty...
Page 304 The Warranties do not cover: maintenance of the vehicle, or using the wrong fuel, oil, • The installation or use of a non-Aston Martin part (other than lubricants, or fluids is not covered under the Warranties. Refer to a certified emissions part) or any part (Aston Martin or non- the Specifications chapter of the Owner’s Guide for correct fluid...
Page 305 • Use of a fuel not approved or recommended by Aston Martin operations. in the Owner's Guide is considered misfuelling, and that any damage resulting from misfuelling is not covered by the •...
Page 306: Customer Satisfaction Campaigns
Aston Martin Dealer will advise you of • Wheel alignment and balancing the extent to which Aston Martin will pay either for parts, or for • Adjustments, including, but not limited to: headlamp and labor, or both.
Page 307: Anti-Perforation Corrosion Warranty
Corrosion Warranty. Should any part of the bodywork of the Aston Martin provides coverage under the Emissions Defect Aston Martin vehicle be perforated the panel(s) affected by the Warranty (including labor and diagnosis) for repairs of emissions perforation will be repaired or replaced. The term ‘perforation’...
Page 308: Emissions Performance Warranty
8 Emissions Performance Warranty 8.1 Federal Requirements Under the Emissions Performance Warranty, Aston Martin will repair, replace, or adjust (with no charge for labor, diagnosis, or If your vehicle is registered in a State where the State or Local parts) any emissions control device or system, if you meet all of...
Page 309 • Fuel Injector clamps, brackets, tubes, gaskets, seals, belts, connectors, and • Fuel Pressure Temperature Sensor wiring harnesses that are used with components in the list of parts • Fuel Rail Assembly set out above. • Fuel Tank B.13 Aston Martin Warranty...
Page 310 8.4 What is Not Covered Parts that should be replaced on a certain recommended Aston Martin may deny you coverage under the Emissions maintenance schedule, remain under warranty until, (a) the first Warranties if your vehicle or a part does not contain an replacement time that is specified under Service in your Owner’s...
Page 311: California Emissions Warranties
Also included may be hoses, belts, connectors, System Defects Warranty. and other emissions-related assemblies. Where a warrantable condition exists, Aston Martin will repair your vehicle at no cost to you including diagnosis, parts, and labor. Other States adopting California emissions and warranty regulations: Passenger car &...
Page 312 • Camshaft Position Sensor exceed 30 days. • Carbon Canister • Catalytic Converter Aston Martin may deny warranty coverage if your vehicle or a • Charge Air Cooler part has failed due to abuse, neglect, improper maintenance, or • Controls for Deceleration unapproved modifications.
Page 313 • Pulsed Secondary Air Injection Valve / Secondary Air Injection Pump and Associated Parts • Throttle Body Assembly • Volume Air Flow Sensor. Some items and equipment in this list may not be installed to this vehicle and therefore may not be applicable. B.17 Aston Martin Warranty...
Page 314: How Do I Get Service Under The Emissions Warranties
Warranties To get service under your Emissions Warranties, take your vehicle to any Aston Martin Dealer as soon as possible after it has failed Aston Martin strives to make sure that services are available to an EPA - approved test or a California Smog Check inspection.
Page 315: What Replacement Parts Should I Use
Aston Martin or the Aston Martin Emergency Service roadside assistance service provider is If you decide to use non-Aston Martin parts, make sure that they unable to take your vehicle to an accessible authorized Aston are equivalent to Aston Martin parts in performance, quality and Martin Dealer.
Page 316: Preserve Your Emissions Warranty
13 Preserve Your Emissions Warranty 14 Customer Satisfaction If you do not maintain your vehicle correctly, Aston Martin may If you are not satisfied with any Warranty repairs performed by have the right to deny you coverage under any of its Emissions an authorized Aston Martin Dealer and feel that you have a Warranties.
Page 317: The Better Business Bureau (Bbb) Auto Line Program
BBB Auto Line Program. to Aston Martin may be monitored and / or recorded. The BBB Auto Line Program consists of two parts – mediation and b) If your dispute is in the State of California, contact the arbitration.
Page 318 You are not bound by the decision, but should you choose to You are required to resort to BBB AUTO LINE before exercising accept the BBB Auto Line decision, Aston Martin shall abide by rights or seeking remedies under the Federal Magnuson-Moss the accepted decision as well and will comply with the decision Warranty Act, 15 U.S.C.
Page 319: State Warranty Enforcement Laws
This excluded, and shall be left to the sole discretion of Aston Martin.). will give us the opportunity to make any necessary repairs before b) Aston Martin Emergency Assistance roadside support.
Page 320: Owner And Vehicle Details
If the vehicle is sold, the benefits of any un-expired portion of the Post Code: warranties can be transferred to the new owner. The new owner should complete a ‘tear off’ sheet (next page) and send the new details to: Aston Martin Warranty Department Aston Martin Lagonda Limited Banbury Road Gaydon Warwick...
Page 321 Owner Warranty Transfer (1) VIN No.: VIN No.: Odometer: Odometer: Date of Purchase: Date of Purchase: Name: Name: Address: Address: Post Code: Post Code: Telephone No.: Telephone No.: Email Address: Email Address: Signature: Signature: Date: Date: B.25 Aston Martin Warranty...
Page 322 B.26 Aston Martin Warranty...
Page 323 Owner Warranty Transfer (3) VIN No.: VIN No.: Odometer: Odometer: Date of Purchase: Date of Purchase: Name: Name: Address: Address: Post Code: Post Code: Telephone No.: Telephone No.: Email Address: Email Address: Signature: Signature: Date: Date: B.27 Aston Martin Warranty...
Page 324 B.28 Aston Martin Warranty...
Page 325 Owner Warranty Transfer (5) VIN No.: VIN No.: Odometer: Odometer: Date of Purchase: Date of Purchase: Name: Name: Address: Address: Post Code: Post Code: Telephone No.: Telephone No.: Email Address: Email Address: Signature: Signature: Date: Date: B.29 Aston Martin Warranty...
Page 326 B.30 Aston Martin Warranty...
Page 327 Aston Martin Assistance Aston Martin Roadside Assistance ........C.2 How Does the Plan Work............C.3 Further Information .............C.3...
Page 328 Aston Martin Roadside Assistance In the event of a breakdown caused by a defect covered under The term of the Aston Martin Roadside Assistance scheme runs the New Vehicle Limited Warranty, the Aston Martin Roadside concurrent with the Aston Martin New Vehicle Limited Assistance scheme will provide the Aston Martin owner with Warranty.
Page 329 Martin Roadside Assistance scheme. The terms of the scheme the drivers side door pillar. may be changed without notice. If your Aston Martin vehicle suffers a breakdown whilst driving, call the toll-free number: 1- 888 - 59ASTON (1-888-592-7866). It is available 24 hours a day.
Page 330 Aston Martin Assistance...
Page 331 Engine Immobiliser ............... 2.15 Infotainment ................6.4 Motion Sensor ............... 2.15 Switches ..................6.2 Tow Away Protection ............2.15 Cruise Control ................5.8 Aston Martin Facilities ..............A.2 Cylinder Deactivation ..............5.27 Audio Specification ................8.2 Defrosting and Demisting Automatic .................6.9 Battery ..................12.38 Drive Modes ................5.10...
Page 332 Fuel ....................12.60 Fuses ..................12.27 Media Media select ................8.9 Radio Functions ............... 8.5 Homelink Wireless Control ............2.16 Sound ..................8.17 Memory Functions ..............3.9 Instrument Cluster Mirrors ................... 3.6 Media Exterior ..................4.13 ..................3.7 Menu Interior ..................4.11 ..................3.6 Navigation Multimedia ................4.13 Radio...
Page 333 Body ..................12.14 Brakes ..................12.14 Park Assist Systems ..............5.29 Steering .................12.14 360° Camera System ............5.34 Suspension ................12.14 Active Park Assist ..............5.31 Transmission .................12.48 Performance ................12.49 Steering Column ................3.8 Steering Controls ................4.10 Stop/Start Quick Start ..................5.28 Storage Driving Position ..................3.30 ...............
Page 334 Vehicle Key ...................2.2 Vehicle Provenance ..............A.3 Vehicle Recovery ..............12.53 Voice Control ................4.14 Washers and Wipers ...............12.13 Windows ..................3.5 Wiper Controls ................4.15 Alphabetical Index...

Aston Martin DB11 Owner's Handbook Manual

Quick Start

Vehicle Security

Before Driving

Controls

Driving

Climate Control

Media Systems

Satellite Navigation

Convertible Roof

Maintenance and Technical Data

Service

Aston Martin Warranty

Quick Links

Chapters

Need help?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Aston Martin DB11

Summary of Contents for Aston Martin DB11

Table of Contents
